nc servo roll feeder

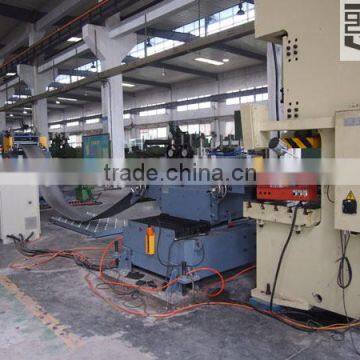

Production line include

1,Steel coil feed-in Cart                                              1 set

2,Servo single-arm type zigzag uncoiler        1 set

3,Servo nine rolls flattening machine             1 set

4,Specialized stock guide device                   2 sets

5,hydro pneumatic system                           1 set

6,electrical control system                            1 set

7,ball-bearing plumber block                         1 set

8,Hydraulic stock guide Loop                        1 set

Features:
1.This machine combines straightening machine and feeder machine, which greatly  reduces  feeding and straightening error while creating superior accuracy.

2.The installation is convenient and never occupy place .
3.Automatic hydraulic exansion is available for increasing working efficiency .

Electirc Eye Loop Control system

Outgoing catenary to assist and support the material

Hold Down Arms Device

Pass line can ba adjusted by advanced worn jacks gear.

Adjusted by hand wheel

The uncoiler contains the butterfly brakes air compressor

Uncoiler-Inverter Device

Threading Tables Device

Feeding and straightening roller with a hard chrome plated

Inverse curve roll-easy to setup the up curve or down curve feeding exit direction

Die-high Electric Conditioning

Hydraulic Material Feed-In Cart

Technical Parameters :

1.Processing materials          cold-roll steel sheet, stainless steel...

2.Material thickness              0.35mm -2.0mm

3.Material width                    200mm -1300mm

4.Coil I.D.                            (460-530)mm

5.Coil O.D.                           ≤1300mm

6.Coil weight                        ≤8,000Kg
