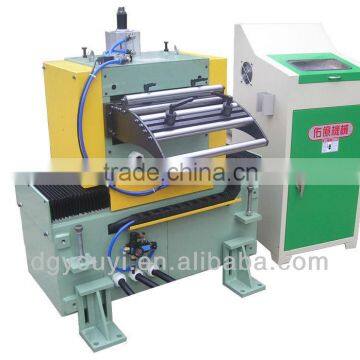

NC Servo press zigzag feeder

Features:

1.High output: The parts are allowed to be fed in a staggered patterm for aoptimum material yield

which improve the utilization rate.

2.High efficiency: The max speed is 60SPMP.

3.High precision: The min. distance between the edges is within 0.5 mm under successive stamping.

4.Small space, low power consumpution.

5.Easy to carry: The finished products will be moved to the loading platform by the conveyer belt.

6.Automatic production line can economize on manpower because one person can operate the machine

by Numerical Computer.

Specifications:

Model	MC-300	MC-400	MC-500	MC-600	MC-800	MC-1000	MC-1300	MC-1800
material thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0	03-3.0	0.3-3.0	0.5-3.0
Material width(mm)	300	400	500	600	800	1000	1300	1800
feed roll DIA.(mm)	90	90	90	90	90	120	120	160
No. of feed roll	2	2	2	2	2	4	4	4
straightening roll DIA.	—	—	—	—	—	80	80	1000
No. of straightening roll	—	—	—	—	—	3	3	5
Offset distance(mm)	300	400	500	600	800	1000	1300	1800
Blank holder mode	worm gears
Coil stock I.D.(mm)	450-530mm
Coil stock O.D.(mm)	1200	1200	1200	1200	1500	2000	2000	2000
Coil stock weight(kg)	1000	1500	2000	3000	5000	5000	10000	12000
Coil stock offset distance(mm)	—	—	—	—	—	600	800	1000
feeding Motor(hp)	1.5	1.5	2	2	4.4	5.5	7.5	11
Uncoiler Motor(hp)	1	2	2	3	3	5	5	10
Expansion	Mannual/Hydraulic

We are a manufacturer for press and press peripheral.

And the products can be customized.

Feel free to contact me if you want to know more details.
