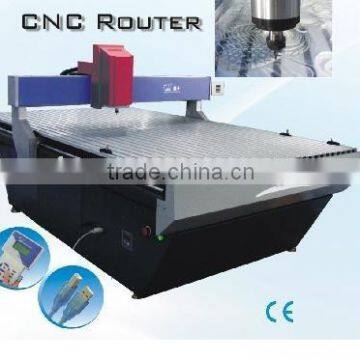

CNC router,engraving machine,engraver

-Advanced DSP digital control system
- Perfect intellective algorithm,

-Synchronous straight-line and curve-line speed
- 32MB flash memory makes data processing speed more quickly
- USB interface,plug and play,safe and stable
-Handy keyboard with big LCD screen,More convenient for operating
- More powerful anti-jamming function,Can be recovered after power off
-Partly complementary engrave, makes work more perfectly

Specifications:
Working area: 1,300 x 2925mm
X, Y, Z working area: 1,200 x 2400 x 100mm
Maximum rapid traverse: 12,000mm/m
Maximum engraving speed: 10,000mm/m
Mechanical resolution: 0.05mm
Repeatability resolution: 0.05mm
Maximum feeding height: 130mm
Motor driver: micro step
Consumption/without spindle: 300W
Spindle/clamp: 2200W/Ø6,3.175
Rotating speed: 600 to 24,000rpm
Controller: DSP 100Hz
Software working: Windows 98, 2000 and XP
Interface: USB
Protocol: 3D protocol
Memory storage: 32MB flash memory
Operating temperature: +5 to +35°C
Operating relative humidity: 30 to 75%
Voltage: 110V-220V AC±10%, 50Hz
Dimensions: 3025 x 1,550 x 1,250mm
