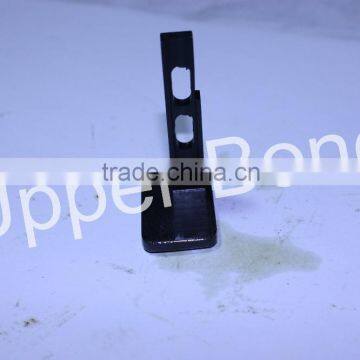

Spare Parts Right Operative Corner Plate Tobacco Packing Machine

Item

Packet Wrapper

1.Max Speed

180-180 Packets/Min

2.Working Speed

180-180 Packets/Min

3.Text Displays

YB43

4.Technical Documents

English only

5.PLC

Siemens

6.Ambient Temp

25±5℃

7.Ambient RH

55%~65% RH

8.Color

Green

9.Year two class preparation

According to user needs to order

10.Compressed Air Needs

Pressure     >0.60Mpa
Flow          >48m³/h

11.Diameter Supply Line

Inside diameter 8-10mm hose

12.Power

380 V , 3 Phase 60HZ

13.Connected Load

3.6KW

14.Safety Loop Voltage

24 Volt

15.Need for Neutral Wires

Yes

16.BOPP

1. nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. dosage       19-23g/ m²

3. width          118mm

4. diameter of bobbin core  75

17.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.

2. width        2.5mm

3.diameter of core    28mm

4. dosage     40-70g/ m²

18.Size

87.5×56×23.7mm
