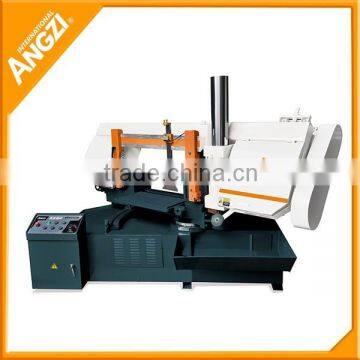

400mm Angle Saw Cut Angzi Bandsaw Machine

400mm Angle Saw Cut Angzi Bandsaw Machine

Saw Head Frame

The section frame carries the mountings for the two band wheels, heavy duty worm drive gear reducer, the band drive motor and saw guide arm mounting supports.

Band Wheels & Drive System

The band wheels are cast iron for long, productive life. The deflection free 1.38 inch (35 mm.) wheel spindles ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The wheel tracks the blade so that the back of the band is contacts the wheel flanges to support the band. The drive motor is coupled to the transmission through a variable speed pulley.

Wide Blade (41mm)

The wider blade, for this capacity machine, can make full utilization of the large band drive motor, when cutting all shapes and alloys.

Drive Wheel Transmission

The drive wheel transmission is designed and built by Angzi to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive shaft. This shaft ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.

Pressure/Flow Feed Control

The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut. The pressure control determines the cutting force applied to the blade and the flow control sets the maximum fall rate of the head. For example for difficult to machine materials the pressure is set higher than free machining alloys and the flow is set lower, as shown on the escutcheons above the control knobs.

Idler Wheel Motion Detector

The wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the work piece. This feature also prevents premature wear on the drive wheel from a stalled band.

Smart Multiple Index

The machine control has the capability to make multiple full length index strokes until the length remaining to index is less than the full index stroke, the last index stroke is the remaining length.

Band Deviation Monitor

This patented cutting control device can reduce scrap by warning when the blade is no longer cutting within the operator's settings for deviation. The allowable deviation limit is set by the operator independently for each direction. The digital deviation indicator will flash when the blade deviation exceeds either maximum. If the deviation continues to exceed the preset value the NC controller will stop the cutting, raise the saw head and display the exceeded deviation value.

Split Front Vise

The work holding vise is split so that it clamps the work piece on both sides of the cutting plane. This additional support in front of the cutting plane minimizes the burr on the cut pieces.

Powered Chip Conveyor

The powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.

Machine Standard Features

• Blade Deviation Monitor
• Chip Conveyor
• Full stroke Vise
• Motion Detector
• NC Back gauge
• Pressure Flow Valve
• Self Diagnostics
• Split Vise
• Variable Blade Speed
• Wheel Cover Limit Switch
• The machine can be turned within an angle of 45°

  Capacity

  Motors

  Motors	Saw Blade Motor	4.0 kW
  	Hydraulic Pump Motor	0.75 kW
  	Cooling Fluid Pump Motor	0.04 kW



  Chip Disposal

  Chip Disposal	Chip Conveyor



  Dimensions and Weight

  Machine Dimensions (Lx W x H)	L	W	H
  	2780mm	1600mm	1720mm
  Machine Weight		4740 lbs.	2150 kg.



  *Due to the continuous improvements, produc's parameter might be updated,you could contact me for latest parameter
