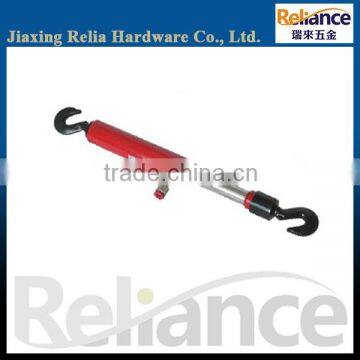

5 Ton Hydraulic Pull Back Ram For Porta Power Jack
Negotiable
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
2 Ton Hydraulic Pull Back Ram For Porta Power Jack
-
500 KG Blue Color Car Engine Support Bar
-
2 TON Cross Beam Adaptor For Hydraulic Garage Jack
-
300 KG Car Engine Support Bar, Engine Removal And Refitting
-
1000 LB Engine Load Leveler For Engine Shop Crane
-
4000 LB Engine Load Leveler For Engine Shop Crane
Product Details
| Type | Other, Porta Power Kit | Capacity (Load) | 1-10T | |
| Max Height | 665 | Min Height | 535 | |
| Certification | CE | Place of Origin | Zhejiang, China | |
| Brand Name | Hydraulic Pull Back Ram | Model Number | Pull Back Ram |
Product Description
Specifications
Hydraulic Pull Back Ram:1.Surface spray ROHS.
2.Safe and longer life.
3.Short delivery time, small MOQ.
4.Accept customize.
Product Description
Use this pull back ram with hydraulic porta power pump for pulling your workpiece. Great for body work on trucks, tractors and heavy equipment.
| Pull Back Ram | |||
| Model | RL-J09021 | RL-J09051 | RL-J09101 |
| Capacity | 2 TON | 5 TON | 10 TON |
| Max. height | 575 mm | 665 mm | 715 mm |
| Stroke | 120 mm | 130 mm | 130 mm |
| Net weight | 3 kgs | 5.5 kgs | 8 kgs |
| Packge size | 60*29*23 cm | 69*29*23 cm | 68*34*22 cm |
| QTY/20'ft | 610 pcs | 560 pcs | 476 pcs |
| Product Picture | | ||
Kinds of porta-powers are also available.
| 4 Ton Hydraulic Porta Power Jack | ||
| Model | RL-J08041 | RL-J08042 |
| Capacity | 4 TON | 4 TON |
| Min. height | 278mm | 278mm |
| Stroke | 120mm | 120mm |
| N.W./G.W. | 18/19 kgs | 18/19 kgs |
| Packge size | 57*23.5*16.5 cm | 59*33*18 cm |
| QTY/20'ft | 1050 pcs | 832 pcs |
| Product Picture | | |
| 10/15 Ton Hydraulic Porta Power Jack | |||
| Model | RL-J08101 | RL-J08102 | RL-J08103 |
| Capacity | 10 TON | 10 TON | 15 TON |
| Min. height | 367 mm | 367 mm | 367 mm |
| Stroke | 130/150 mm | 130/150 mm | 130/150 mm |
| N.W./G.W. | 33/34 kgs | 33/34 kgs | 34/35 kgs |
| Packge size | 73*31*17 cm | 73*40*16 cm | 93*39*17 cm |
| QTY/20'ft | 610 pcs | 560 pcs | 476 pcs |
| Product Picture | | | |
Our Services
We can provide hydraulic pull back rams with many patterns and capacity, and we can also customize you, if any interest, please feel free to contact us for more information.
We're sure your any inquiry or requirement will get prompt attention.
