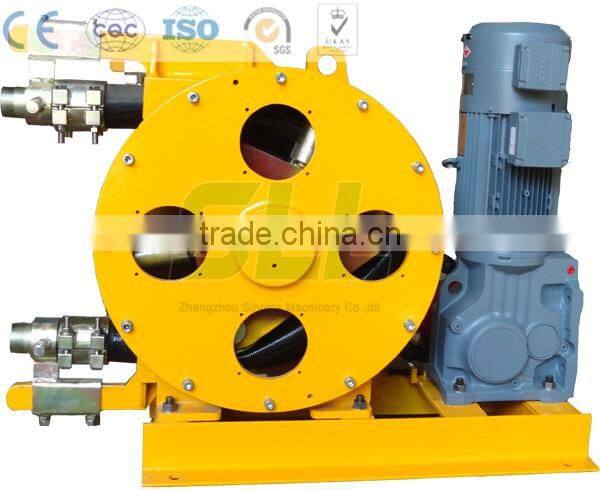

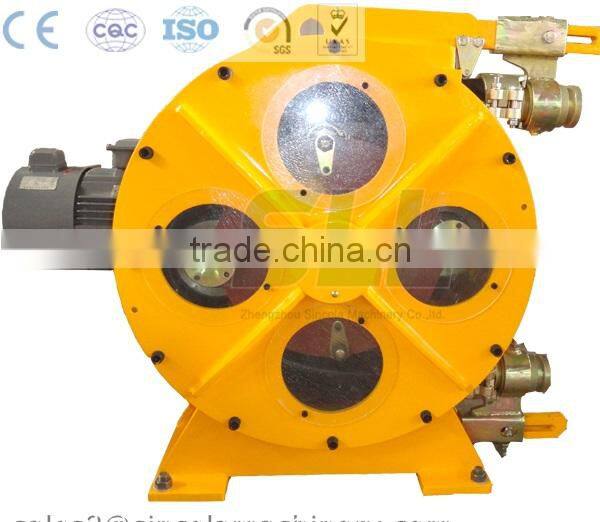

Peristaltic Infusion Pump Made In China With CE CERTIFICATION

Peristaltic Infusion Pump with CE:

Peristaltic Infusion Pump with CE  Is a Kind of Peristaltic Pump, Which Is Suitable for Handling Aggressive, High Viscosity, High Density Products, Such as Abrasive Slurries, Corrosive Acids, Gaseous Liquids, Sand/Cement Mortar, Liquid Accelerator, etc. And Also Is Used for Dosing Pump With 1% Repeat Precision. SH Series Hose Pumps Include SH10,SH15,SH25,SH32,SH38,SH50,SH65,SH70,SH100.

Peristaltic Infusion Pump with CE Application:

 Construction - cement,coatings,spray concrete,brick and roof tiles,colourants and aggregate.
 Chemical – corrosive acids,and bases.
 Textiles – fibres,dyes and additives.
 Pint and pigments – dispersion mill feed, pigment and latex transfer.
 Water and wastewater treatment – lime, kalic,sodium hypochlorite,ferric chloride and sludges.
 Printing and packaging – varnishes,inks, coatings and adhesives.
 Mining and mineral separation – tailing Slurries,sludges and reagents.
 Ceramics and glass – fine china.
 Breweries – yeast,diatomaceous earth, Flocculants,stabilizers,filter press feed.
 Food and beverage – CIP applications, Wine,brewery,dairy,bakery,flavourings and additives.

Features:

• No seals
• No valves
• Self -priming
• Only tube to replace
• Dry –running without damage
• Reversible
• No contact between product and mechanical parts
• Able to pump products with solid parts inside
• Easy maintenance, low-cost, short down time

Technical parameter:

• Pump Model	Output (L/h)	Pressure (MPa)	Hose ID (mm)	Rev. (r/min)	Max. ParticleDia.(mm)	Max. Suct.Left (m)	Motor Power (kW)
  SH10	60	0.6	10	45	2	2	0.37
  SH10B	100	0.6	10	80	2	2	0.37
  SH15	210	0.6	15	45	2	2	0.55
  SH15B	300	0.6	15	75	2	2	0.55
  SH25	800	1.5	25	50	3	3	1.1
  SH25B	1300	1.5	25	80	3	3	1.5
  SH32	1300	1.5	32	50	3	4	2.2
  SH32B	1800	1.5	32	75	3	4	2.2
  SH38	2000	1.5	38	40	5	4	2.2
  SH38B	2700	1.5	38	55	5	4	3
  SH38C	3500	1.5	38	70	5	4	4
  SH50-558	4200	1.5	51	35	6	5	4
  SH50-558B	5400	1.5	51	45	6	5	5.5
  SH50-680	6300	1.5	51	35	6	5	7.5
  SH50-680B	8000	1.5	51	45	6	5	7.5
  SH65-680	9200	1.2	64	40	8	5	7.5
  SH65-680B	12000	1.5	64	45	8	5	11
  SH65-770	13500	1.2	64	45	8	5	11
  SH65-770B	16500	1	64	55	8	5	11
  SH76-770	18000	1	76	45	10	5	11
  SH76-770B	22000	1	76	55	10	5	15
  SH76-915	24000	1	76	50	10	5	15
  SH76-915B	28000	1	76	40	10	5	18
  SH100	33500	1	102	35	15	5	18
  SH100B	42000	0.75	102	45	15	5	18
  It can be produced according to the especcial requirement of client.
  The pump's output is determined with water.

FAQ:

1. Q: What's the output of hose pump?

     A: 60-42000L/h, if need, we also ca according your demands to redesign the pump?

2.  Q: What's the running parts?

     A: The squeeze hoe is the only consumpation part.

3.  Q: What's the filed of the pump applied in?

     A: Our hose pumps are widely applied in architecture, underground construction,

          petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment,  pharmacy, and             papermaking.

4. Q: Whether can according customer's demands customized?

    A: Of course. But we need to make clear the following points: what's project will use the pump do? What's          the output and pressure do you need?

5. Q: Whether can only offer pump head?

    A: Of course. we can offer pump hear without gearbox and electric motor. And also can make OEM for              you.

• Packaging Detail:  Export standard veneer cases or wooden cases or according to customers' requirements
• Delivery Detail: within 7-15 days after received your advance payment.
