Home > Products > Trailer Type Diesel Generator > Volvo portable diesel power generation generator for 2015

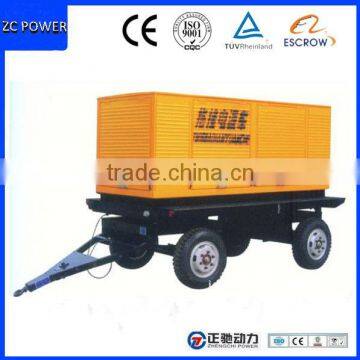

Volvo portable diesel power generation generator for 2015
- 3000 Unit / Units per Month
- Shanghai/Ningbo port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
volvo portable diesel generator for electric generating
-
New Silent Electric Diesel Generator from China
-
good quality 50 hz portable generator
-
Diesel power electric portable generator for Africa and Asia
-
China products Magnetic diesel generator with China prices
-
Diesel portable generator new product from China
Product Details
Place of Origin | Jiangsu, China | Brand Name | Generating Set | |
Model Number | ZCDL-V114 | Output Type | AC Three Phase | |
Speed | 1500RPM | Frequency | 50Hz | |
Rated Power | 104kw | Rated Voltage | 400/230V | |
Rated Current | 187A |
Product Description
Volvo portable diesel power generation generator for 2015
POWER GENERATORS | ZCDL-V114 | |||||||
Standby Power(50Hz) | 114kw | |||||||
Prime Power(50Hz) | 104kw | |||||||
ENGINE DATA | ||||||||
Manufacturer: | Sweden Volvo | |||||||
Model: | TAD532GE,4-cycle | |||||||
Air Intake System: | Turbo | |||||||
Fuel System: | Directly Injection Fuel syetem, Bosch Pump | |||||||
Cylinder Arrangement: | 4 in line | |||||||
Displacement: | 4.76L | |||||||
Bore and Stroke: | 108x130mm | |||||||
Compression Ratio: | 18:1 | |||||||
Rated RPM: | 1500rpm | |||||||
Max. Standby Power at Rated RPM: | 125KW/170HP(with fan) | |||||||
Governor Type: | EDC4 | |||||||
Exhaust System | ||||||||
Exhaust Gas Flow: | 23.2m3/min | |||||||
Exhaust Temperature: | 557°C | |||||||
Max Back Pressure: | 5kPa | |||||||
Air Intake System | ||||||||
Max Intake Restriction: | 3.5kPa | |||||||
Burning Capacity: | 8.03m3/min | |||||||
Fuel System | ||||||||
100%(Prime Power) Load Consumption: | 214 g/Kw.h | |||||||
75%(Prime Power) Load Consumption: | 210 g/Kw.h | |||||||
50%(Prime Power) Load Consumption: | 213 g/Kw.h | |||||||
Oil System | ||||||||
Total Oil Capacity: | 13L | |||||||
Oil Pressure at Rated RPM: | 450-480kPa | |||||||
Cooling System | ||||||||
Total Coolant Capacity: | 20.2L | |||||||
Thermostat: | 83-95°C | |||||||
Max Water Temperature: | 105°C | |||||||
ALTERNATOR DATA | ||||||||
Rated Power: | 105KVA | |||||||
Connecting Type: | 3 Phase and 4 Wires, “Y” type connecting | |||||||
Power Factor: | 0.8 | |||||||
Protect Class: | IP23 | |||||||
Altitude: | ≤1000m | |||||||
Exciter Type: | Brushless, self-exciting, with AVR | |||||||
Insulation Class, Temperature Rise: | H/H | |||||||
POWER GENERATORS DATA | ||||||||
Voltage Regulation, Stead State: | ≤±1% | |||||||
Sudden Volts Warp: | ≤-20%--+25% | |||||||
Voltage Stable Time: | ≤6S | |||||||
Frequency Regulation, Stead State: | ≤5% | |||||||
Sudden Frequency Warp: | ≤-10%--+12% | |||||||
Frequency Recovery Time: | ≤5S | |||||||
Open Type Size: | 2280(mm)*920(mm)*1550(mm) | |||||||
Open Type Weight: | 1400kg | |||||||
CONTROL PANEL | ||||||||
The UK original Deepsea DSE501K is a Manual Start Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicate fault conditions, automatically shut down the engine and show the fault condition by LED. The module has the ability to monitor the following conditions: Low Oil Pressure, High Engine Temperature, Auxiliary Shutdown and Overspeed. Each alarm channel has its own LED indicator and once activated no further alarm conditions will be accepted. |
Packaging: nude or plywood package
Shipping: 10 days after deposit
(1) Warranty Time: 1 year or 1000 running hours, which occurs the first
Yangzhou Zhengchi Power Equipment Co.,LTD ( abbreviation: ZC Power Equipment Co., Ltd.), Located in Yangzhou City, Jiangsu Province, which is the central part of manufacturing Generating Set industrial zone in Southeast China. ZC Power is specialized in manufacturing Diesel Generating Set and supplying various power products, like engine parts, controllers, ATS etc. ZC Power manufactures OEM generator powered by Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. ZC Power Genset ranges from 7KW to 2400KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO8528 production standard to assure them of best quality produced and accepted for export to the international market.
Besides manufacturing OEM Generating Set, we also supply various power products to meet customer one-stop solutions, such as transformers, power cables, control panel, generator spare parts, field service, etc.
ZC Power commitment is to provide power products to meet customers requirements, and create more value for users, make contributions to social development by providing power.
Open, efficiency, and cooperation are values of ZC Power. We keep an open mind, emphasize operational efficiency, advocate teamwork, and respect for professional accumulation, committed to building a professional, first-class brand in electrical products and engineering equipment.
(1) Your company is factory or trade company?
Answer: We are professional Generating Set manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce 7KW to 2400KW diesel generators.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to Africa, Middle East, Asia, and South Korea...
Zhengchi Power Workshop
