Home > Products > API610 BB type pump > API 610 BB4 industry water circulating pump

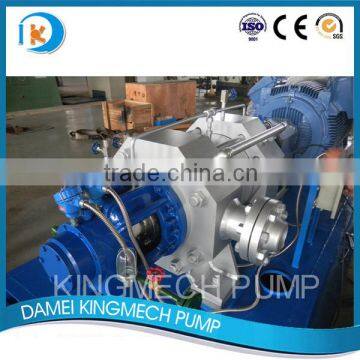

API 610 BB4 industry water circulating pump
USD $1 - $10,000
/ Set
1 Set(Min. Order)
- xingang
- T/T
You May Like
-
API610 chemical pump radial split single volute multistage chemical pump
-
API 610 BB4 centrifugal single stage multistage corrosion resistant chemical process pump
-
API610 chemical pump radial split single volute multistage chemical pump
-
API610 chemical pump radial split single volute multistage chemical processing pump
-
API610 centrifugal chemical pump radial split single volute multistage pump
-
API610 axially split pump horizontal water treatment centrifugal pump
Product Details
| Place of Origin | Hebei, China | Brand Name | KINGMECH PUMP | |
| Model Number | BB4 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, industry water supply | |
| Power | Hydraulic | Standard or Nonstandard | Nonstandard | |
| Fuel | Other, electric/Desiel | Pressure | High Pressure | |
| Application | Other, chemical water supply, water supply |
Product Description
Product Description
API 610 BB4 industry water circulate Pump with high quality
Product Details
Performance curve:
Size: 4-10 inches
Capacity: 100-580 m3/h
Head: 740-2150m
Temperature: 0-210 °C
Material
1.Suction casing ,discharge casing, diffuser, and impeller: carbon steel ,chrome steel.
2.Shaft, wear ring and diffuser bush: chromic alum steel , chrome steel.
Construction
1.The pumps are sectional casing, multi-stage centrifugal pumps. The suction casing, stage casing and discharge casing are rigidly held together by the bolts. The joints between these casing are primarily sealed by means of metal-metal contact. Simultancously ,o-rings are used as auxiliary seals.
2.The forged pieces are used for the suction ,stage and discharge casings of type MSHB pressure boiler feed pumps.
Shaft sealing
1.The shafts of these pumps are sealed by soft-packing and cooling water . In the region of shaft sealing ,the pump shaft is protected by renewable sleeve.
Bearings and axial balancing device
1.The rotating assembly is supported by sliding bearings on both ends of the pump shaft . Bearings of pump are forced-lubricated. The oil system is equipped for type DG pump. The axial thrust of rotor osis balanced by balance disc. And the thrust bearing is laso provided which is rsed to bear residral axial force caused by the change of working conditions.
Drive
1.The pump is directly driven by the motor through the coupling. The gear, membrane coupling and hydraulic coupling can be used according to client’s requirements. The pump can be driven by turbine of motor.
2.The rotating direction of pumps are clockwise when viewed fron the driving end.
1.Type MSH high pressure boiler feed pumps are used for feeding high pressure boiler of pumping high pressure clean water.
Factory touR
KINGMECH PUMP FACTORY TOUR
Package & Delivery
Contact Us
- Shijiazhuang Damei Kingmech Pump Co., Ltd.
- Contact namePaul Zhao Chat Now
- Phone086-311-68058636
- AddressNo.266Tianshan Street Shijiazhuang Hebei China, Shijiazhuang, Hebei
