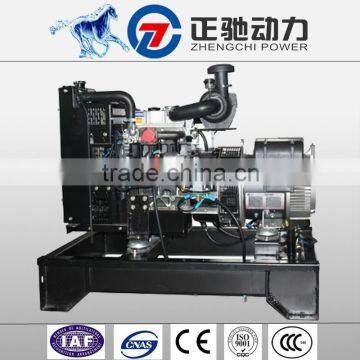

50HZ 7KW / 9KVA diesel generator with UK egine 403A-11G
- 2000 Unit / Units per Month
- Shanghai port
- T/T
You May Like
-
50HZ 7KW / 9KVA diesel generator with UK egine 403D-11G
-
60hz 9kw / 11kva diesel generator with UK egine 403D-11G
-
60hz 12kw/15kva generator diesel prices with UK egine 403D-15G
-
50HZ 12KW / 15KVA diesel generator with UK egine 403A-15G2
-
50HZ 16KW / 20KVA diesel generator with UK egine 404A-22G
-
60hz 19KW / 24KVA generator price with UK egine 404D-22G
Product Details
Place of Origin | Jiangsu, China | Brand Name | Zhengchi Power Equipment | |
Model Number | ZCDL-P8 | Output Type | AC Three Phase | |
Speed | 1500RPM | Frequency | 50Hz | |
Rated Power | 7KW / 9KVA | Rated Voltage | 400/230V | |
Rated Current | 12.6A |
Product Description
UK Perkins Engine Co.,Ltd was founded by British entrepreneur,Frank.Perkins in 1932 in UK.It's one of the global leading engine manufacturer,leader in non road diesel and natural gas engines market ranged from 5hp to 2800hp.
Perkins is famous for its service,completely satisfied the customers upon their unique requirements. That's why it is so reliable among manufacturers.
Zhengchi Power Equipment Co.,Ltd won Perkins OEM authorization in 2008.We supply over 12000 sets of diesel generators for more than 10000 enterprises and institutions around China and Global market.
Why choose Perkins engine?
1,Producted by USA Caterpillar and UK Rolls-Royce;
2, Top quality,using the lasted European technology with high strength wear resistant materials;
3, Low fuel consumption, stable performance, easy maintenance, low operating cost, low emission;
4, Clean, quiet, operating at the lowest noise level;
5, Running up to 6000 hours without trouble;
6, Providing two years' standard warranty , highlighting the manufacturer's absolute confidence of machine durability and reliability.
50HZ 7KW / 9KVA diesel generator with UK egine 403A-11G
Diesel Generator Specifications | ||||||||
Manufacturer: | Yangzhou Zhengchi Power Equipment Co.,Ltd. | |||||||
Model: | ZCDL-P8 | |||||||
Prime Power: | 7KW / 9KVA | |||||||
Standby Power: | 8KW / 10KVA | |||||||
Frequency: | 50HZ | |||||||
Voltage: | 400/230V | |||||||
Phase: | 3 Phase | |||||||
P.F(COS): | 0.8 | |||||||
Fuel: | Diesel | |||||||
Rated Current: | 12.6A | |||||||
Start Method: | 24V DC Start Battery | |||||||
Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker | |||||||
Altitude: | ≤1000m | |||||||
Engine Specifications | ||||||||
Brand and Model: | Perkins 403A-11G | |||||||
Air Intake System: | Natural | |||||||
Fuel System: | Direct Injection | |||||||
Cylinder Arrangement: | 3 in line | |||||||
Displacement: | 1.131L | |||||||
Bore and Stroke: | 77×81 mm | |||||||
Compression Ratio: | 23:1 | |||||||
Rated RPM: | 1500rpm | |||||||
Maximum Output Power: | 9.5KW/12.9HP | |||||||
Governor Type: | Mechanical | |||||||
100% Load Fuel Consumption: | 252 g/Kw.h | |||||||
Total Lubrication Capacity: | 4.9L | |||||||
Total Coolant Capacity: | 5.2L | |||||||
Cooling System: | Forced water cooling cycle | |||||||
Alternator Specifications | ||||||||
Manufacturer: | Mecc Alte Alternator (Haimen) Ltd | |||||||
Model: | ECP28-2VS/4 | |||||||
Rated Capacity: | 11KVA | |||||||
Winding: | 100% Copper Wire | |||||||
Frequency: | 50HZ | |||||||
Speed: | 1500 RPM | |||||||
Connecting Type: | 3 Phase and 4 Wires, “Y” type connecting | |||||||
Power Factor: | 0.8 | |||||||
Protection Grade: | IP23 | |||||||
Alternator Warranty: | 2 Year No Time Limited | |||||||
Exciter Type: | Brushless, self-exciting, with AVR | |||||||
Insulation Class, Temperature Rise: | H/H | |||||||
Voltage Regulation: | ≥±5% | |||||||
Control System Specifications | ||||||||
Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) | |||||||
Model: | DSE501K | |||||||
Type: | Manual Operation | |||||||
Operation: | Via a three position key switch with STOP(O), RUN(I) and START(II). | |||||||
Alarm Protect: | Low Oil Pressure, High Engine Temperature, Auxiliary Shutdown, Charge Failure | |||||||
Size and Weight | ||||||||
Open Type Overall Size: | 1346mm*500mm*1100mm | |||||||
Weight: | 340 kg | |||||||
Soundproof Type Overall Size: | 1710mm*880mm*1350mm | |||||||
Weight: | 680kg |
Zhengchi corporate with Cummins to enjoy its 130 countries and regions, more than 5400 authorized agents and distributors, provide 24 hours after-sales service and spare parts supply.
(1) Global service after sale (spare part, maintenance, local service)
(2) warranty time: 1 year or 1000 running hours, which occurs the first
Yangzhou Zhengchi Power Equipment Co.,LTD ( abbreviation: ZC Power Equipment Co., Ltd.), Located in Yangzhou City, Jiangsu Province, which is the central part of manufacturing 50HZ 7KW / 9KVA diesel generator with UK egine 403A-11G industrial zone in Southeast China. ZC Power is specialized in manufacturing Diesel Generating Set and supplying various power products, like engine parts, controllers, ATS etc. ZC Power manufactures OEM generator powered by Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. ZC Power Genset ranges from 7KW to 2400KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO8528 production standard to assure them of best quality produced and accepted for export to the international market.
(1) Your company is factory or Trade Company?
Answer: We are professional 50HZ 7KW / 9KVA diesel generator with UK egine 403A-11G manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce 7KW to 2400KW deutz generator price.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA brand, deutz generator price, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to Africa, Middle East, Asia, and South Korea...
