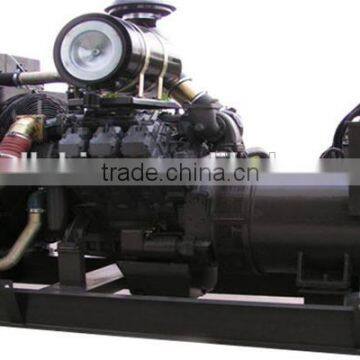

German brand Deutz engine powered 80kva 50hz power genset

Product Description

MODEL				ZCDL-D80
Standby Power(50Hz)				88KVA
Prime Power(50Hz)				80KVA

ENGINE DATA
Brand and Model:				Deutz TD226B-6D
Engine Max. Power:				99 KW
Air Intake System:				Turbo
Cylinder Arrangement:				6- Cylinder in line
Displacement:				6.23 L
Bore and Stroke:				105×120 mm
Compression Ratio:				16:1
Rated RPM:				1500rpm
Lubricating Oil Consumption:				≤1.36 g/kwh
Exhaust Air Flow:				90 m3/min
Air Consumption:				6 m3/min
Exhaust Gas Flow:				14.5 m3/min
Exhaust Gas Temperature:				480 °C
Cooling System :				Water-Cooling
Total Lubrication System Capacity:				13 L
Coolant Capacity:				25.8 L
Fuel Consumption at 100% Load :				20.8 L/hr
Start Mode:				24V Direct Current Start, Including battery

ALTERNATOR DATA
Brand and Model:				Stamford UCI 224G
Rated Capacity:				85KVA
Connecting Type:				3 Phase and 4 Wires, “Y” type connecting
Power Factor:				0.8
Rated Voltage:				400/230V
Rated Speed:				1500RPM
Rated Frequency:				50Hz
Altitude:				≤1000m
Exciter Type:				Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise:				H/H
Protect Grade:				IP23

GENERATING SET DATA
Voltage Regulation, Stead State:				≤±1%
Sudden Volts Warp:				≤-20---+25%
Voltage Stable Time:				≤6S
Frequency Regulation, Stead State:				≤5%
Sudden Frequency Warp:				≤-10---+12%
Frequency Recovery Time:				≤5S
Certificate Approved:				Euro CE, ISO9001, ISO14001, ISO8528
Open Type Size:				2502×900×1750 mm
Open Type Weight:				979KG
Silent Type Size:				3000×1240×1850 mm
Silent Type Weight:				1806KG
Control Model:				ComAp MRS10 Automatic Control Panel

Packaging & Shipping

50hz power genset Packaging: nude or plywood package

50hz power genset Shipping: 15 days after deposit

Our Services

(1) 50hz power genset Global service after sale (spare part, maintenance, local service)

(2) 50hz power genset Warranty Time: 1 year or 1000 running hours, which occurs the first
