Three phase super silent generation 20kva deutz diesel generator

FOB Price

USD $200,000 - $300,000 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	20kva deutz diesel generator
Model Number	ZCDL-D16	Output Type	AC Three Phase
Speed	1500RPM	Frequency	50Hz
Rated Power	20kva 20kva deutz diesel generator	Rated Voltage	400/230V
Rated Current	28A

Three phase super silent generation 20kva deutz diesel generator

Product Description

MODEL				D16
Standby Power(50Hz)				22KVA
Prime Power(50Hz)				20KVA
ENGINE DATA
Brand and Model:				Deutz F3L912
Air Intake System:				Natural
Cool System:				Air-cooled
Fuel System:				Direct Injection
Cylinder:				3
Displacement:				2.828L
Bore and Stroke:				100×120(mm)
Rated RPM:				1500rpm
Engine Max. Power:				26kw
Compression Ratio:				17:1
Lub.-Oil Capacity:				11L
Air Intake Capacity:				2.12m3/min
Exhaust Capacity:				2.18m3/min
Exhaust Temperature:				500℃
Lub.-Oil Consumption:				1% of Diesel Consumption
100% Load Consumption:				232 g/kw.h
75% Load Consumption:				238 g/kw.h
50% Load Consumption:				248 g/kw.h
Start Type:				24V Direct Current Start, Including alternator & battery
Filter System:				Dry type air filter, fuel filter, oil filter
ALTERNATOR DATA
Brand and Model:				Stamford PI144D
Rated Power:				20kva
Connecting Type:				3 Phase and 4 Wires, “Y” type connecting
Power Factor:				0.8
Protection Grade:				IP23
Altitude:				≤1000m
Exciter Type:				Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise:				H/H
Telephone Influence Factor (TIF):				<50
THF:				<2%
GENERATING SET DATA
Attached Accessories:				Starting batteries and connective wires, ripple flex exhaust pipe, exhaust siphon, muffler, damper, MCCB breaker
Manufacturing Standards:				CE, ISO9001, ISO14001
Open Type Overall Size:				1300(mm)680(mm)1230(mm)
Open Type Weight:				450kg
Control Panel:				UK Deepsea DSE702 Manual Control Panel

Open Genset:

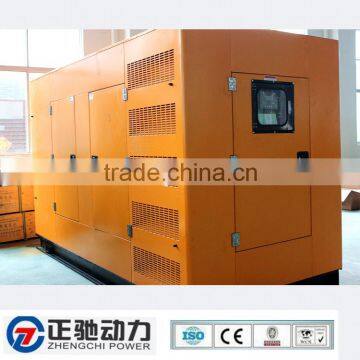

Silent Genset:

Synchronization System:

Packaging & Shipping

20kva deutz diesel generator Packaging: nude or plywood package

20kva deutz diesel generator Shipping: 20 days after deposit

Our Services

(1) 20kva deutz diesel generator Warranty time: 1 year or 1000 running hours, which occurs the first
