Home > Products > Chinese Brand Engine > 2000KW High Voltage Diesel Generator Powered by Jichai Engine

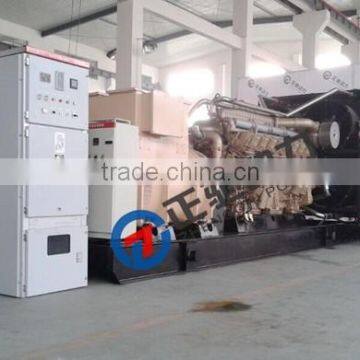

2000KW High Voltage Diesel Generator Powered by Jichai Engine
- 200 Unit / Units per Month
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jichai Power | |
| Model Number | ZCDL-J2200 | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50Hz | |
| Rated Power | 2000KW | Rated Voltage | 11000V |
Product Description
2000KW High Voltage Diesel Generator Powered by Jichai Engine
11KV (11000V) high voltage diesel generator, powered by Jichai engine
GENSET MODEL | ZCDL-J2200 |
Standby Power(50Hz) | 2200KW |
Prime Power(50Hz) | 2000KW |
ENGINE DATA | |
Manufacturer: | CNPC JICHAI POWER EQUIPMENT COMPANY |
Model: | H16V190ZL |
Air Intake System: | Turbocharger |
Cool System: | Water-cooled |
Fuel System: | Direct Injection |
Cylinder Arrangement: | 16 in V |
Bore and Stroke: | 190×215(mm) |
Rated RPM: | 1500rpm |
Engine Power: | 2200kw |
Displacement: | 97.53L |
Governor Type: | Electrical |
100%(Prime Power) Load Consumption: | ≤205 g/kw.h |
Engine Radiator: | Radiator cooled, fans driven by belt |
Start Type: | Direct Current Start, Including alternator & battery |
ALTERNATOR DATA | |
Alternator Manufacturer: | GUANGZHOU ENGGA GENERATORS CO., LTD. |
Alternator Model: | EG560-2000G/10500 |
Alternator Rated Power: | 2000KW |
Rated Voltage: | 11000V |
Power Factor: | 0.8 |
Altitude: | ≤1000m |
Insulation Class, Temperature Rise: | H/H |
Protection Grade | IP23 |
Telephone Influence Factor (TIF): | <50 |
THF: | <2% |
GENERATING SET DATA | |
Voltage Regulation, Stead State: | ≤±1% |
Sudden VoltS Warp(100%): | ≤+20% |
Sudden Voltage Warp(Sudden Increase): | ≤-15% |
Voltage Recovery Time: | ≤1S |
Bearing Over-Speed Ability: | 120% 2min |
Bearing Over-Load Ability: | 110% 1h |
Bearing Over-Current Ability: | 150% 2min |
Attached Accessories: | Starting batteries and connective wire, exhaust |
Overall Size: | 6884*2610*3205MM |
Weight: | 24390kg |
Control Panel: | Britain Deepsea DSE6020 AMF auto control panel |
Our High Voltage Generator service after sale: 1 year or 1000 hours, which one happens the firstly
High Voltage Generator Packaging: nude or plywood package
High Voltage Generator Shipping: 30 days after deposit
Yangzhou Zhengchi Power Equipment Co, Ltd, locates in Yangzhou City, Jiangsu Province, which is the manufacturing centrality of High Voltage Generator industrial zone in Southeast China, Zhengchi Power owns 3 subsidiary factories, one is to produce brushless alternator, second is to produce silent canopy and trailer, third is to assemble diesel generator set, registered capital with 61000000.00 RMB.
Zhengchi Power is specialized in manufacturing High Voltage Generator and supplying various power products, like engine parts, controllers, ATS etc. Zhengchi Power manufactures OEM generator powered by Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators.
Besides manufacturing Gen Set, we also supply various power products to meet customer one-stop solutions, such as transformers, power cables, control panel, generator spare parts, field service, etc.
(1) Your company is factory or Trade Company?
Answer: We are professional High Voltage Generator manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce 7KW to 2400KW 200kva Gen Set.
(3) Where is your main market?
Answer: We mainly export 200kva Diesel Gen Set to Africa, Middle East, Asia, and South Korea...
