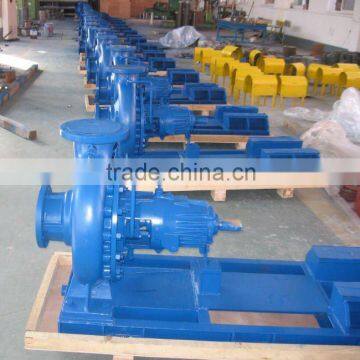

Centrifugal pump / chemcial pump/ shijiazhuang machine
- any ports
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DK | |
| Model Number | Type ZED Series | Theory | Centrifugal Pump | |
| Structure | Other, Single-stage Pump, Single-stage pump | Standard or Nonstandard | Nonstandard | |
| Pressure | Low Pressure |
Product Description
Specifications
ype ZED pump are centerline-mounted single stage overhung end suction pump designed according to API 610.
Type ZED pump are centerline-
mounted single stage overhung end suction pump designed according to API 610.
Details :
Single-stage,horizontal. radially split volute casing pumps with feet on oentreline and sigle-
entry radial impeller,end suction branch,radially upwards discharge branch. Depending on operation conditions hydraulic balance provided by front or rear wear rings and balace holes.Casing vover with cooling or heating connections .Shaft sealing by pzckings or mechanical seals of any design(single and double working),connections for cooling ,flushing or sealing liquid.Standardized pipework according to API plans.
Cooling of baseplate pedestal possible.Flanges possible according to DIN or ANSI. Same nominal pressure for suction and discharge flanges.
Direction of rotation clockwize seen from driven end
Size: 1-16 inches
Capacity: 0-2600 m3/h
Head: 0-300m
Temperature: -80-450 °C
Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCu, Titanium, Titanium Alloy, Hastelloy Alloy
