Home > Products > API 610 OH type pump > api 610 oh2 bomba
api 610 oh2 bomba
- any ports
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DK | |
| Model Number | Type ZED Series:api610 pump | Theory | Centrifugal Pump | |
| Structure | Other, Single-stage Pump, Single-stage pump | Usage | Other, chemical | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, power | Pressure | Low Pressure | |
| Application | Other, chemicla |
Product Description
Specifications

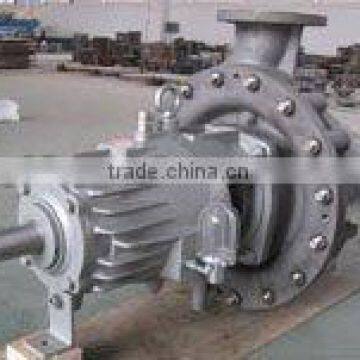

ype ZED pump are centerline-mounted single stage overhung end suction pump designed according to API 610.
Design
Single-stage,horizontal,radially split volute casing pumps with feet on centreline and single-entry radial impeller,end suction branch,radially upwards discharge branch.Depending on operating conditions hydraulic balance provided by front or rear wear rings and balance holes. Casing vover with cooling or heating connections.Shaft sealing by packings or mechanical seals of any design(single or double working),connections for cooling,flushing or sealing liquid.Standardized pipework according to API plans.
Cooling of baseplate pedestal possible.Flanges possible according to DIN or ANSI.Same nominal pressure for suction and discharge flanges.
Direction of rotation clockwise seen from driven end.
Pumping medium
Sulphric acid,nitric acid,hydrochloric acid,phosphoric acid for organic acid and inorganic acid which at various temperature and concention.
Sodium hdroxide,sodium carbonate and alkaline liquid at various temperature and concentration.
All kinds of salt solution.
Various liquid petrochem chmical products,organic compound as well as raw materials with corrosion behavious and the products.
Operating data
Size DN 25 up to 400mm
Capacities Q up to 2600m3/h
Heads H up to 300m
