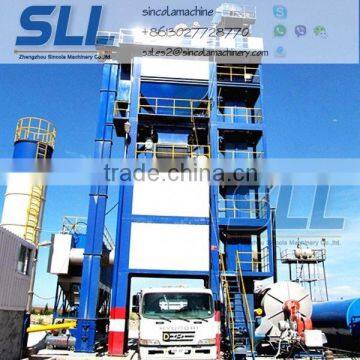

120t/h stationary asphalt bituminous concrete mixing plant Quality Choice
- Qingdao/Shanghai/Tianjin
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | Sincola | Voltage | 380V, 380V(acoording to your local condition), 380V,50HZ,3Phase | |
| Power(W) | 242kW | Dimension(L*W*H) | 29*28*16.5m | |
| Weight | 85T | Certification | ISO.CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas | |
| Model Number | LB1000 |
standards exporting package: load in containers
Product Description
bituminous concrete mixing plant
I.General Specifications:
-Plant productivity: 240t/h(under standard conditions moisture content<5%)
-Asphalt Mixer capacity: 3000kgs/batch
-Oil Consumption: 5.5-7.5 kg/t
I-Diversified selection of bituminous concrete mixing plant
Sincola bitumen plant capacity scope :8-400t/h (STATIOANRY bitumen plant : 20T/H-400T/H; MOBILE bitumen plant :8-120T/H)
You can choose the burners (oil,gas,coal burner)and dust collecting system(wet dust collecting system,bag house) according to your local conditions.
Also, we can make the asphalt tank, hot finished silo volume according to your requests.
II.The Technology Parameters:
LB series Stationary bitumen plant (40t/h-400t/h):
Type | LB800 | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 | LB4000 | LB5000 | |
Plant Capacity (standard conditions): | 64t/h | 80t/h | 120t/h | 160t/h | 200 t/h | 240 t/h | 320t/h | 400t/h | |
Mixer Capacity: | 800kg | 1000kg | 1500kg | 2000kg | 2500 kg | 3000 kg | 4000kg | 5000kg | |
Consumption (standard conditions): | Fuel | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t | 5.5-7 kg/t |
Coal | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | 10-13 kg/t | |
Measurement accuracy | Aggregate: ± 0.3% filter: ± 0.3% Asphalt: ± 0.15% | ||||||||
MHB series Mobile bitumen plant (8t/h-120t/h):
| Models | MHB20 | MHB60 | MHB80 | MHB100 |
| Output | 20t/h | 60t/h | 80t/h | 100t/h |
| Assembly total power | 40kW | 90kW | 100kW | 120kW |
| Temperature of finished materials | 120-160 | |||
| Fuel | Coal(7-11kg/t) or diesel oil(5-7kg/t) | |||
II.Standardized Production of bituminous concrete mixing plant
Sincola bitumen plant factory have impeccable bitumen plant production equipments and checkout equipment. Also we have strict management system and work flow. All the R & D team, have the same goal to produce the qualified products and provide satisfying service.
IIII. Easy for transportion,installation and control.
The Sincola bitumen plant is modular designed, expecially for stationary asphalt plant. so it is easy for transportation , and installation.
The hot mix asphalt plant control system, adopted automatical control , PLC. With branded electrical component.
Transportation:
