Galvanized Steel Wire for Barrier Cable
- Qingdao
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Jinshui | |
| Model Number | Barrier cable | Type | Bare | |
| Application | Other, Messenger wire,Guy wire,earth wire,ground wire,barrier cable, Barrier cable | Conductor Material | Other, Steel | |
| Conductor Type | Stranded | Insulation Material | Other, bare |
Product Description
Specifications
Galvanized steel wire for barrier cableProfessional manufacturer
Good quality,lowest price
Strong capacity,fast delivery.

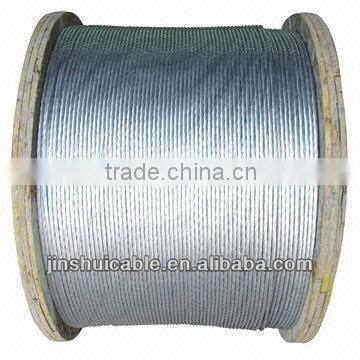

Galvanized steel wire for barrier cable
Standards
The product galvanized steel wire (GSW) is used for the core of ACSR(Aluminum conductor steel reinforced) conductor, ground wires,stay wires,Guy wires,span wire,messenger wires and for similare purposes.Being the leading enterprise of this industry,the GSW manufactured by us has excellent mechanical property,best quality of coating and nice condition of surface.
Construction
1. Unless otherwise specified,strand shall have a left lay.All wires shall be stranded with uniform tension.
2. Stranding shall be sufficiently close to ensure no appreciable reduction in diameter when stressed to
10% of the specified strength.
3. Stranding wire:1*3,1*7,1*19,1*37.
4. All wires in the strand shall lie naturally in their true positions in the completed strand and,when the strand
is cut,the ends shall remain in positions or be readily replaced by hand and then remain in position.This may
be accomplished by any means or process,such as preforming,post forming or form-setting.
5. The zinc-coated wire shall be free fo imperfections not consistent with good commercial practice.
The zinc-coating shall be continuous and of reasonably uniform thickness.
Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Standard:ASTM A475,BS183:1972,etc.
Construction:1×3,1×7,1×19.
