450/750-600/1000 Voltage Flame RetardantTop Quality PVC Insulated and Sheath Flexible Control Cable
- Qingdao
- T/T
You May Like
-
XLPE Insulated Electric Cable PVC Sheathed 95mm
-
XLPE Insulated Cable PVC Sheathed 95mm Pvc Cable Manufacturers
-
XLPE Insulated Cable PVC Sheathed 95mm
-
6-35 KV XLPE Insulated PVC Sheathed 95mm Pvc Power Cable
-
Jinshui 6-35 KV XLPE Insulated PVC Sheathed Steel Wire Armored High Voltage Cable
-
ISO9001:2008 Managed 6-35 KV XLPE Insulated PVC Sheathed Steel Tape Armored Cable
Product Details
| Place of Origin | Henan, China | Brand Name | Jinshui | |
| Model Number | JS107 | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC | |
| Insulation Material | PVC |
Product Description
Specifications
1. PVC insulated control cable2. Chemical corrosion resistance
3. Made with different standards
4. OEM and ODM available

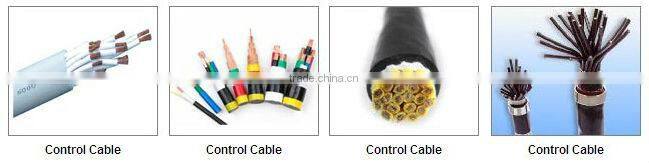

450/750-600/000 Volt Flame RetardantTop Quality PVC Insulated and Sheath Flexible Copper Conductor Control Cable
Specifications
1. PVC insulated & sheath control cable is suitable for connecting wires between electric equipments in controlling, monitoring loop and protecting circuit.
2. The rated voltage 450/750V up to 600/1000 AC
3. Excellent characteristics in electric and mechanical purpose.
4. Chemical corrosion, heat-aging resistance and environmental stress and flame retardant
5. Simple construction and convenient to use.
6. The control cable can be manufactured according to the Chinese standard GB9330-88 which is complied
with reference to IEC227, IEC502 and the standards of Germany, Japan, America available as well.
The Operating temperature of cable conductor
PVC insulation: 70 degree
Chemical Si-XLPE: 90 degree
Irridiation XLPE: 105-135 degree
The laying temperature should not be less than 0 degree.
Model name main use
Model | name | Main use |
KVVR | Copper core PVC insulated PVC sheathed control cable | Laying in the room such as a moving occasion demands |
KVVRP | Copper core PVC insulated PVC sheathed control cable shielding braid | Laying indoor, etc. require tamper-resistant mobile occasion |
KVV32P2 | Copper core PVC insulated PVC sheathed copper shielded wire sheathed control cable | Laying indoor, tunnel, cable trench, pipeline and soil can withstand greater mechanical tension and requirements of the anti-interference in fixed places |
KYJV | Copper core XLPE insulated PVC sheathed control cable | Laying indoor, tunnel, cable trench, pipeline and soil in the middle fixed occasions |
KYJVP | Copper core XLPE insulated PVC sheathed control cable braided shield | Laying indoor, tunnel, cable trench, pipeline and soil in the middle of the fixed occasions require tamper-resistant |
KYJVP2 | Copper core XLPE insulated PVC sheathed control cable shield Copper belt | Laying indoor, tunnel, cable trench, pipeline and soil in the middle of the fixed occasions require tamper-resistant |
KYJV22 | Copper core XLPE insulated PVC jacket steel tape armored control cable | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical stress of fixed occasion |
KYJV22P | Copper core XLPE insulated PVC sheathed steel braided shield armored control cable | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical stress and demands of anti-interference in fixed places |
KYJV22P2 | Copper core XLPE insulated PVC sheathed copper shielded steel armored control cable | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical stress and demands of anti-interference in fixed places |
KYJV32 | Copper core XLPE insulated PVC sheathed steel wire sheathed control cable | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical tension of a fixed occasion |
KYJV32P | Copper core XLPE insulated PVC sheathed steel wire braided shield sheathed control cable | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical tension and requirements of the anti-interference in fixed places |
KYJV32P2 | Copper core XLPE insulated PVC sheathed copper wire sheathed control cable shield | Laying indoor, tunnel, cable trench, pipeline and the soil medium can withstand greater mechanical tension and requirements of the anti-interference in fixed places |
