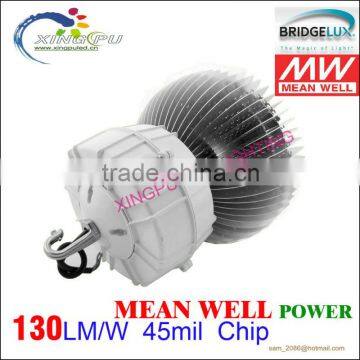

Bridgelux chip 130lm/W 120w 150w led hig bay
- ShenZhen
- T/T L/C D/P D/A
You May Like
Product Details
LED Light Source | LED | Warranty(Years) | 3 | |
Input Voltage(V) | 85-265V AC | Lamp Power(W) | 150 | |
Lamp Luminous Flux(lm) | 15000 | Lamp Luminous Efficiency(lm/w) | 100 | |
Color Temperature(CCT) | Other, warm white,white, pure white | Working Temperature(℃) | -40, 55 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
IP Rating | IP33 | Certification | CCC, CE, CQC, SAA, UL | |
Place of Origin | Guangdong, China | Brand Name | XINGPU | |
Model Number | XP-HBBZ-150W |
Product Description
Specifications
150w led hig bay1.Bridgelux chip
2.Meanwell Driver
3.SAA,CE,RoHs;5years warranty
4.high quality&competitive pric
Bridgelux led chip 80w-150w led high bay
150W led high bay light Main Parameters:
Input Voltage | AC85V-265V | |
Current Frequency | 50HZ-60HZ | |
LED Light Source | Bridgelux led 45mil 130LM/W | |
LED Qty | 120 pcs | |
LED Power | 150W | |
Total System Power | 140 W | |
Led Luminous Efficiency | 120-130lm /W | |
Led Initial Luminous Flux | 15000 Lm | |
Illuminance Uniformity | >0.8 | |
Color Temperature | 4000K-7000K | |
Color Rendering Index | >78 | |
Light Distribution | symmetric /circle spread | |
Illuminance Design | LED+Reflector | |
LED Junction Temperature | ≤60°C (@ Ta=30°C) | |
Working Temperature | -40°C ~ 55°C | |
Storage Temperature | -40°C ~ +65°C(Best 25°C) | |
IP Rating | IP33 | |
Net weight | 6.0 Kg | |
Life-span | >50000H | |
Power Cord | 0.75mm2 triple shield wire | |
Connecting Wire
|
| L Live |
| N Neutral | |
| G Earth | |
Certificate | CE ; RoHS; UL (Power supply only) | |
Light Fixture Color | Silver |
Features & advantages:
1. Beam Angle: 120 degree
2. Replace the HQI light 300W.
3. 80% more energy saving compared with conventional street light, CFL, Incandescent light.
4. Estimated lifespan: >50, 000 hours
5. Pure white color/Warm white color, high CRI(>80) with great directionality
6. Fast turn on, no warm-up or cold start problems
7. Solve 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency
8. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for size.
Product Application:
- Widely used in the lighting of governmen project,sports venues,Basketball court,University library, Meeting hall, Dining room,warehouse,
- Business area, airport, metro station, flyover, signboard, gymnasium, landmark and so on.
Related Products:
LEDs are environmentally friendly and healty
conventional energy lamps:
- Contain mercury and cadmium.
- Emit radiation.
- Contain Carcinogens
- Cause proven health problems such as dizziness, headaches.
- They are destroyed when voltage drops.
Advantage of Leds
- LED lamps VERSUS conventional energy lamps
- LEDs are absolutely ecological and environmentally friendly as the don’t emit CO2 Carbon Dioxide
- They achieve better performance with a reduction in lighting power consumption up to 95%!
- No need to change your lighting devices when you change to LED lamps.
- The life of the led lamp reaches 50,000 hours. So the cost of constant change and, in general, maintenance drops to zero!
- LEDs significantly increase the efficiency of air conditioning in your room, as the led lights do not emit heat.
- The led lights are applicable to houses, gardens, swimming pools, cars, the engines, vessels, ships, offices, factories, hotels, roads and generally where there is lighting.
- There are more than 1000 kinds of led lamps at your disposal.
- They emit far less heat
- If you put your hand near the LED lamp when lit, you will sea that you are not going to burn yourself as you would, with an incandescent bulb.
- The heat produced by a LED lamp is essentially lost.
- The incandescent bulb converts electrical energy to a large extent, to heat rather than light.
- Giving power of 5W to an array of LED, we can achieve illumination equivalent to a standard bulb of 60W.
- Since they emit no heat, they effectively help the performance of air conditioners.
- They “live” longer
- LED lighting doesn’t rely on glowing filament (such as common lamps) but on the electron jump (from the cathode to the rise of the LED), and – therefore- the LED lifetime exceeds 50.000 hours.
