Intelligent Electronic Power Transformer Hg UV Lamp --- 22KW Power/Voltage Adjustable (1KW~40KW)

Intelligent electronic power transformer Hg UV lamp --- 22KW  (1KW~40KW) :

Our main customer are European customers, such as: Barberan Machinery, Cefla, CML Finishing,Giardina Finishing, G Technologies,  Finishmetal, UV-ray,…

Big different between Traditional Transformers & Our newest Intelligent Stepless Ballasts:

    1. Power saving more than 20% ~ 30%;

    2. Weight and size much less than traditional, weight only 1/8 of traditional; size only 1/4 of traditional one;

    3. Easy to control Via PLC;

    4. No need of capacitor;

    5. Easy to install;

    6. Can turn on any kind of UV Lamp, even metal Halide Lamp and Mercury Lamp;

 When sending inquiry, please do remember to offer us your Detailed Lamp Specifications:

(FOR EXAMPLE:)

So that we can send you correct Inverter Ballast Offer for your Lamps!!

Key Specification

• HPE developed the Intelligent UV inverter ballast--HAMAL, which are matched with UV Lamp power from 1KW to 30KW with Air or Water cooled system.
• HAMAL will replace and improve the traditional electromagnetic transformer + Capacitor ballast for printing industry, PCB industry UV curing system and painting industry
• Output power is very stable even the input not stable; the output current and voltage is stable and square waveform
• High efficiency up to 95%

l Machine Dimension

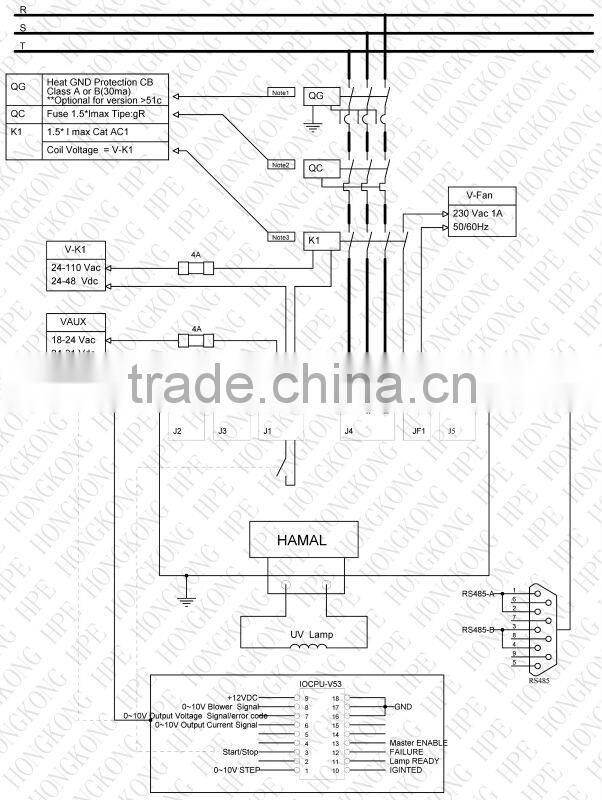

l Electrical Diagram:

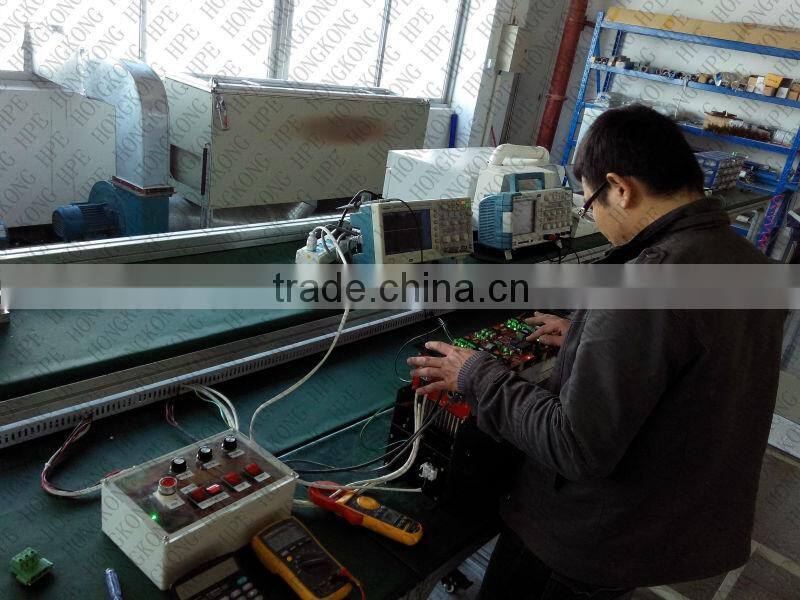

Advanced Itanlan Testing Device:

Points You May Concern:

1. How much energy we save using these ballasts, instead of normal magnetic ballast and capacitor assembly?

2. How much is the normal life of the lamps with these electronic ballasts.

3. If there is any fault in the ballast, do we have to change the whole ballast or we repair these?

4. Is it possible to repair these ballast here locally afterwards?

5. How much is the life of normal UV lamp with the magnetic ballast and the electronic ballasts?

Answer to the Above:

1. normal magnetic ballast is only two phases, our ballast is three phases,

there are no phase loss, saving 33.3%; magnetic transformer efficiency is less than 80%,

our ballast efficiency is higher than 90%2. our ballast can stay at 5% for standby, normal magnetic ballast can stay at 40% only.

3. It is easy to repair the ballasts if there is small problem, just change some spare parts, the design is very compacted. when you see our product, you can understand how is it working.

4. Yes, the life time of the lamp will increase above 20% based on working condition.

Connection:

By the way, please feel free to contact us for Owner’s Manual, ‘cause our factory website is still not complete and under construction.

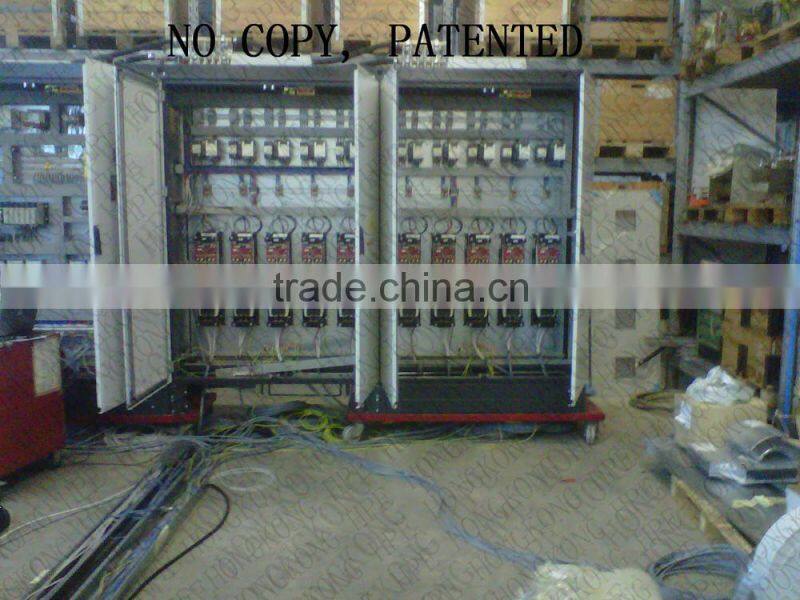

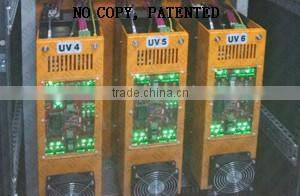

 Our Projects for Your Reference. : )

Air Mail Service(Above 3 sets) or Express(Below 3 Sets), Advice Only, Charged by Buyers' Own!
