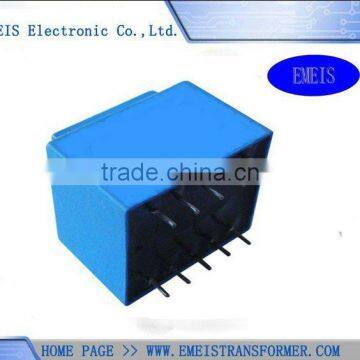

PCB board used 1.5VA Encapsulated Transformer

Specifications

PCB board used 1.5VA Encapsulated Transformer

A. Feature:
1. Good Price-Function Ratio
2. Widely used in PCB circuit
3. Can be well encapsulated by epoxy with features of Compact, Anti-shock, Anti-moisture, Anti-dust, High anti-strength, Water-proof to adapts hard working environment
3. Machine-inserted silicon steel sheet
4. EI cores are annealed by advance vacuum annealing furnaces to result in good electronic data
5. Excellent Anti-combustion Bobin

B. Wire Materials:
1. Copper, Aluminum, Aluminum Clad Copper.
2. The size of transformer total in Aluminum is larger than which total in Copper.
3. Aluminum instead of Copper Cost Save: 13%-35%/PC

C. Certification: ISO9001, CESI, UL, CE, RoHS and SGS.

D. Testing Items:
1. No-load Test(No-load Current, No-load Voltage, No-load Loss)
2. Load Test (Load Voltage, Temperature-rise)
3. Inductive Voltage Test
4. DC Resistance Test
5. Safety Test

E. Application:
1. Electronic Meter & Apparatus
2. Cable TV & Digital Network
3. Electronic Control
4. Medical Equipment
5. New Electric Power Supply
6. Decorative Illumination System
7. Security Monitor & Control System

F. Productivity: Toroidal/annular/ring transformer 3.2 million PCS, EI transformer 3 million PCS annually; Toroidal iron core over 300 tons monthly.

G. Equipment: Over 100 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 4 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment.

H. Workforce: About 400 workers, 26 technicians, 2 senior engineers

I. Label Info:
Certificate Logo, Basic Electronic Data, Manufacture's Information, also can be printed according to customer's Advice
Bar Code available according to customer's advice.

J. Main Customer
Overseas: ABB, Denmark Foss, Netherlands Inrada, Belguim Connect System, Germany Connectronics GmbH, USA Gallien, Australia JOY, Russia Asteroid, Japan Wireless Tsukamoto, South Korea Choyang Medical
Domestic: Chonghong Electric, Tsinghua Tongfang, Hushan Electronic

K. Remark:
1. OEM, ODM and Custom designed drawing and samples acceptable
2. All data are subject to modification without notice in advance.

Remark:
OEM, ODM and Custom designed drawing and samples acceptable
All data are subject to modification without notice in advance.
