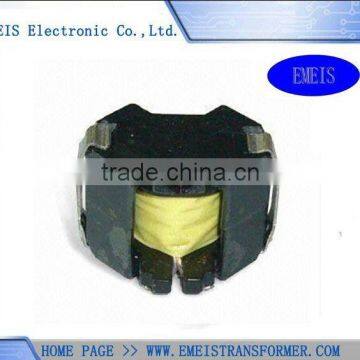

High Frequency Transformer with Customized Specifications
1.Good quality and low price
2.High efficiency
3.Customized

High Frequency Transformer with Customized Specifications, Surface Mount

Key Specifications/Special Features:

Features:
- Compact, lightweight and easy surface mounting
- Automated mounting and reflow soldering
- High impedance and low loss
- Supports lead-free soldering
- All materials are RoHS compliant and UL listed
Electrical characteristics:
- Winding ratio (primary/secondary):
  - (8-9):(3-4): 1.9:1
  - (8-9):(5-6): 19:5
  - (8-9):(1-2): 19:5
  - (8-9):(5-8): 19:14
- Inductance: (8-9): 24.9μH±10%
- Secondary leakage inductance: 100±H maximum (primary short)
- DC resistance (at 25°C):
  - 8-9: 860mΩ (maximum)
  - 1-2: 237mΩ (maximum)
  - 3-4: 15mΩ (maximum)
  - 5-6: 14mΩ (maximum)
  - 5-7: 47mΩ (maximum)
  - 7-8: 375mΩ (maximum)
- Insulation withstand voltage:
  - Primary to secondary: AC 1.0kV/5mA, 1s
  - Primary to core: 0.5kV AC/5mA, 1s
  - Secondary to core: 0.5kV AC/5mA, 1s
  - Test frequency voltage: 1kHz/0.25V
Applications:
- Switching power supply
- Computer products
- DVD
- DC to DC converter

Be able to design and manufacture under customer's special request.
