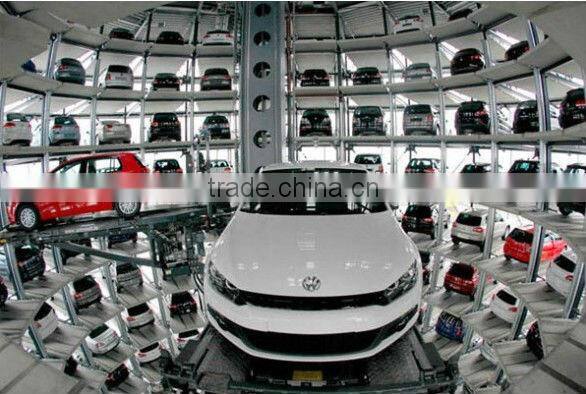

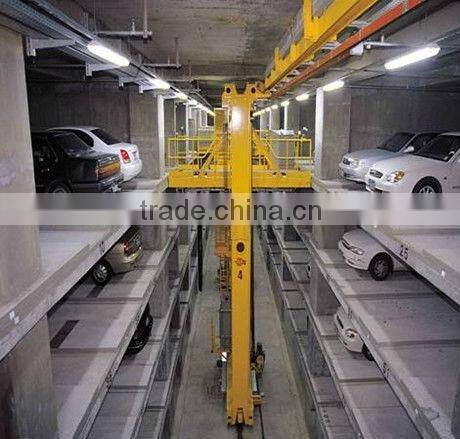

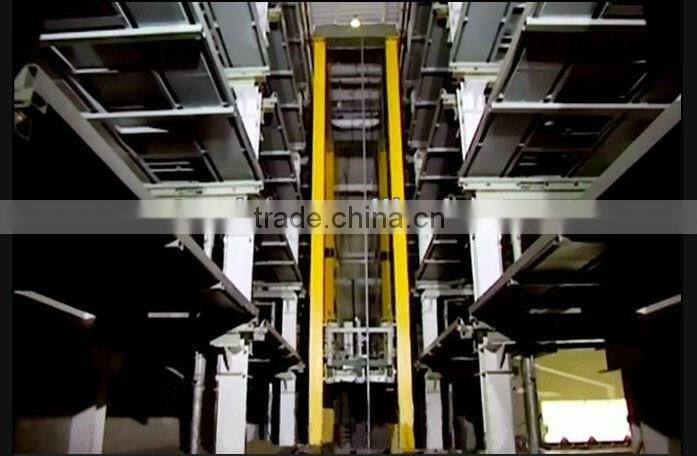

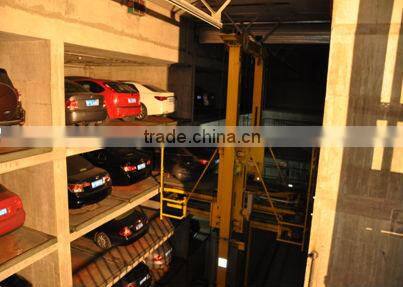

Low cost underground parking garage design
Controlled with PLC, accompanied with touch screen. Parking has been much easier.

Low cost underground parking garage design

Features:

It is controlled with PLC, accompanied with touch screen. Process of parking has never been easier.
This kind of parking suits residential areas and office buildings , installed underground

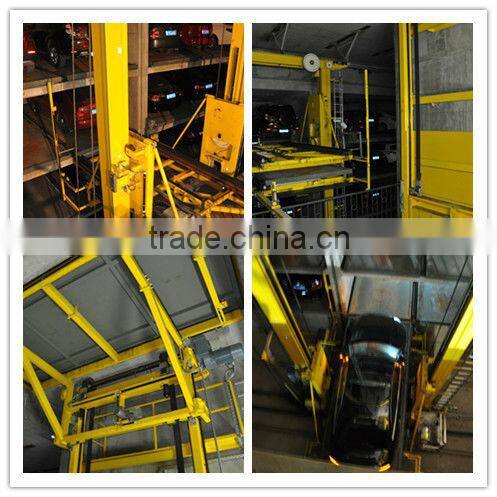

Driven with a number of motors which move the Lift and the Traveling stack
Multiple security detection devices are configured in order to ensure the safe and reliable operation.
Parking cabin with an automated entrance gate is constructed on the ground
Alarm device for prevention of exceeding height and length of vehicles
Malfunctions are detected automatically

Specification
Control mode	PLC ,automated
Load capacity	≤2000KG
Vehicle size (mm)	5300×1900×2050
Traveling stack speed	60 m/min
Motor power vertical/horizontal	15 kW/ 5.5 kW
Shuttle speed	60 m/min
Shuttle power	2× 2.2 kW
Parking cycle time	16-30 sec
Retrieving cycle	16-30 sec
Driving mode	Electrical
Motor voltage	380V/50HZ

Our factory:

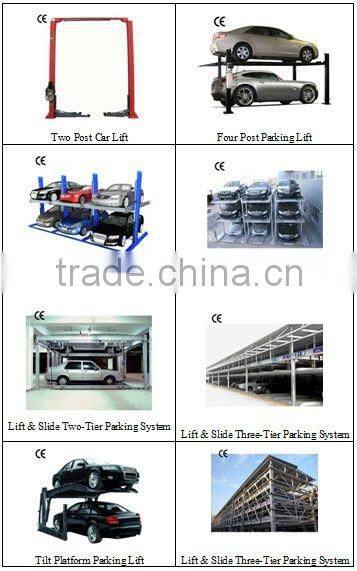

Product Range:
