Home > Products > Handheld POS > GPS Handheld Barcode Scanner KO-MC700

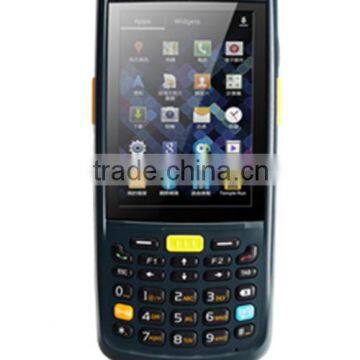

GPS Handheld Barcode Scanner KO-MC700
- 10000 Piece / Pieces per Month
- shenzhen
- T/T L/C Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | KO | |
Model Number | mc700 |
Product Description
Specifications
Barcode Scanner1.Camera: 2 Mega pixel, autofocus lens, LED flash
2.Sealing: IP65
3.Communication: GSM, GP
GPS Handheld Barcode Scanner KO-MC700
System Configuration | |
CPU | 416 MHz high-performance ARM processor |
Operating System | iData OS (Special Real Time OS) |
Memory | 64 MB RAM/128 MB Flash (Max.: 128 MB RAM/256 MB Flash) |
Expansion Slot | Mini SD card, up to 32 GB, Micro SD slot |
Display | 3.5-inch HVGA (320x480), TFT high brightness, LED backlight |
Display Material | Toughened glass |
Touch Panel | Resistive touch panel |
Camera | 2 Mega pixel, autofocus lens, LED flash |
Exit Window | Corning Gorilla glass |
Keypad | 30-key durable industrial keypad with interior transmission light |
Battery | 3.7 V 4000 mAH rechargeable lithium polymer battery (6000 mAH battery optional) |
Battery Life | 24 hours (full-load) |
Audio | Built-in microphone |
Notification | Vibrator alerts/LED/Audio notification |
Vibration Motor | Built-in programmable vibration motor |
> Operating Environment | |
Development Tools | ADS (for C language); Eclipse (for Java language) |
Programming Language | C,Java |
Management Tools | iData Service |
Operating Temp. | -10°C ~ 50°C |
Storage Temp. | -20°C ~ 60°C |
Relative Humidity | 0 ~ 95% (non-condensing) |
Drop Specification | 1.5-meter drops to concrete ground (10 drops each side) |
Tumble Specification | 500 0.5-m tumbles (1000 hits) |
Sealing | IP65 |
Electrostatic Discharge | Conforms to ±15 kV air discharge, ± 8 kV direct discharge |
> Structural Parameters | |
Dimensions (LxWxD) | 152 mm x 68 mm x 24 mm |
Weight | 250g (standard battery included) |
> Communication Transmission | |
Wireless Voice Communication | 900/1800MHz |
Wireless WAN | GPRS/EDGE |
Wireless LAN | Wi-Fi 802.11b/g |
Bluetooth | Bluetooth 2.0+EDR |
GPS | High-performance GPS navigation chip |
> Input/Output Ports | |
USB Port | 1 ( Micro USB port) |
Charger Port | 1 (DC port) |
> 1D Laser Scanner | |
Optical Resolution | ≥4 mil |
Scan Depth of Field | 3.81 cm - 60.98 cm |
Scan Angle | 47°± 3°(Standard) |
Scan Speed | 102 ±12 scans/sec. (Bidirectional) |
> 1D Linear Imager | |
Reading Mode | CCD |
Reading Accuracy | ≥4 mil |
Decoding Speed | 300 times/sec. (Max.) |
> Infrared Communication Module | |
Built-in Infrared Communication Module | Structure with two emitting tubes, meter reading distance of up to 5 meters, fully supporting DL/T645 protocol and communication protocols of worldwide mainstream meter manufacturers |
Interface | Initial rate: 1200 bps, supported rates: 1200, 2400, 4800, and 9600 bps |
> RFID | |
Frequency | 13.56 MHz |
Reading Distance | Within 50 mm |
Protocol | ISO14443A/14443B/15693 |
> Accessories | |
Standard | Battery, power adapter, USB cable, hand strap |
Optional | 1-slot charging &communication stand, 4-slot battery charger |
