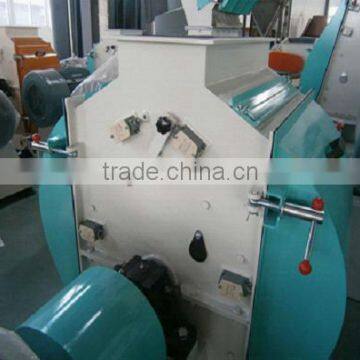

Pet Food Hammer Mill

Specifications

Hammer Grinder/mill parameters:

Power: 110kw 380V 50Hz
Capacity: 3-5T/H (corn,soyabean,wheat 0.8-1.0mm)
Features:

Spindle speed: 2970 rpm;

Rotor diameter: 675 mm;

Chamber width: 800 mm; Hammer quantity: 132 pcs;  176pcs
Tip speed: 103 m/s;

Hammer dimension: 180*60*6 mm;
Gap between hammer tip and screen: 5 mm;
Requirement of air volume: 11000-12000 m3/h;
Imported key component parts, with NSK bearing;

Sliding access door provides a means of easier inspection and maintenance;  Screen dimension: 850*795mm Large grinding area.

Principle:

- The material is fed into the machine from the inlet of the machine and flows down to the milling room by the guiding parts. Intensive friction and impact with the hammer blades and the sieve take place in the room and the material is crashed into fraction which goes through the sieve and is discharged from the bottom outlet.

Features:

- The main body of the machine is wielded by steel plate and combined with the motor in a same support frame.

- Advanced design and excellent fabricating ensure the machine running stably.

- A magnetic inlet equipped on the top of the machine removes ferrous impurity before flowing into the mill room, which can make the machine run safely at high speed.

- The material can be fed from both sides of the inlet, so the blades can work fully, and the motor rotary direction changes accordingly by the limited switch.

Application:

- This machine is primarily designed for granular material like corn, durra, bean and wheat in feed mill.

- Reducing the gap between the sieve and blades, this machine can also be successfully applied in organic offal crushing in flour mill. Processed offal can be put into the bran for a better economic value
