Home > Products > Extruder > Floating Fish Feed Extruder Machine / Pre-conditioned Extruder / Pet Food Extruder

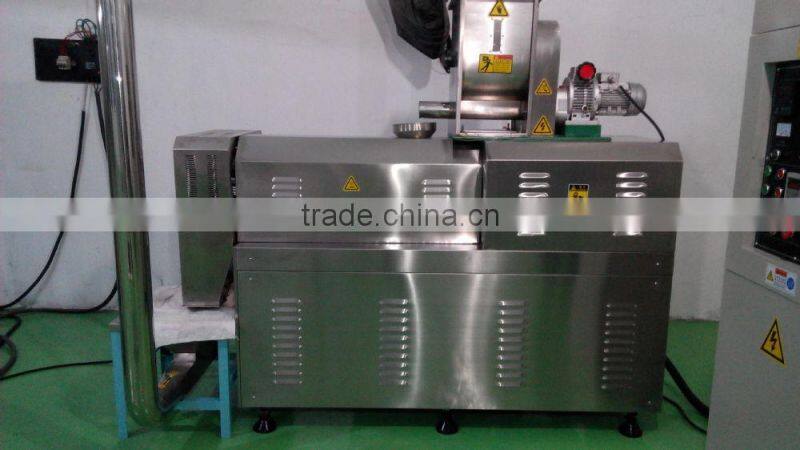

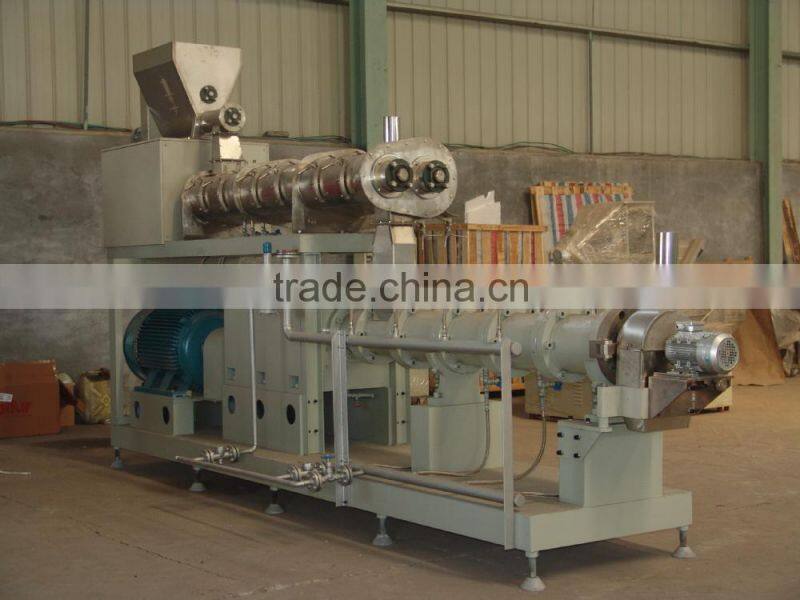

Floating Fish Feed Extruder Machine / Pre-conditioned Extruder / Pet Food Extruder
- Qingdao/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Qidong | Model Number | SPH-90 | |
| Application | Fish | Voltage | 220~690V | |
| Power(W) | 22~315Kw | Weight | 800Kg above | |
| Dimension(L*W*H) | 2500x1000x2000 above | Certification | CE ISO SGS SNI GBT | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Products Catalog:
Model | Dry type | Wet type | |||
SPH-65 | SPH-70 | SPH-70 | SPH-90 | SPH-130 | |
Feeder power(KW) | 0.4 | 0.4 | 0.4 | 0.75 | 1.5 |
Conditioner power(KW) | -------- | -------- | 1.5*2 | 5.5 | 5.5 |
Main power(KW) | 22 | 30 | 30 | 55 | 132 |
Cutter power(KW) | 0.75 | 0.75 | 0.75 | 2.2 | 3 |
lubrication power(KW) | 0.2 | 0.2 | 0.2 | 0.75 | 0.75*2 |
Dimension(m) | 2.5x1x2 | 3x1x2 | 3.5x1.3x2.6 | 7.4x1.5x3 | 7.4x1.5x3 |
Capacity (KG/H) | 100-150 | 150-250 | 250-400 | 800-1200 | 3000-5000 |
Main Features:
1. Automatic proportion and drying system
2. Steam heating method pre-conditional system
3. Various shape and taste of pet food
4. Professional fish food processing line design for clients
5.Puffed extrusion fish food machine
6.High out put and low consumption
| Trade mark | QIDONG |
| Technology applied | Extrusion developing technology |
| Equipment model | SPH 65,70,75,85,90,95,100,130 |
| Volt | 220~690V/ customizable |
| Installed power | 22--315 Kw |
| Weight | 2~10MT |
| Machine dimension | 2850*850*1820 mm |
| Certificate | CE |
| Warranty | One Year |
| Production capacity | 100~10000 Kg/H |
| Processing method | High temperature & high pressure extruding, squeezing and expanding |
| Controlling system | Full PLC control |
| Lubrication system | Forced lubrication |
| Screw material | High-strength alloy steel |
| Screw nitrided hardness | 900-1000HV |
| Screw nitrided layer depth | 0.5~0.8 mm |
| Raw Material | Fish meal, dehulled soybean meal, peanut meal, high-gluten flour, lecithin, refined fish oil, a dedicated multi-dimensional, trace elements, etc. |
| Pellet measurement | 0.5-15 mm |
| Product Shape | Dozens of unique mould available |
| Product application | 1) Tilapia,black carp,grass carp, chub,bighead,carp, dace |
| 2)Grouper,turbot,snapper, sparus latus,yellow croaker,rainbow trout ,flounder | |
| ---suitable for all age stages |
Samples of Fish Feed:
