Weighing Controller for Ration Batching Scale
Negotiable
/ Piece
10 Pieces(Min. Order)
- Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | SUPMETER | |
| Model Number | BST106-B68[U] | Type | Other, For Hopper Ration Batching Scale | |
| Power Supply | DC24V±20% | Display Type | LED display |
Product Description
Specifications
1. Simple application, easier to operate;2. For 1~4 mterials;
3. With Single-speed or Double-speed Feeding;
4. Fast Delivery
Suitable for Hopper Ration Batching Scale with 4-material, Single-speed or Double-speed Feeding.
| Power Supply | DC24V±20% |
| Display | 14-bit red LED digit display |
| Kaypad | 4 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output of Loadcell | DC9V |
| Max. Connection number of Loadcell | 4 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Sampling Frequency | 800Hz |
| DI | 6 Normally Open Switch Inputs |
| DO | 8 Normally Open Transistor Switch Outputs |
| AO | 1 Optional and Definable Analog Signal Output: 4~20mA. |
| Communication Port | COM1: RS232/RS485 |

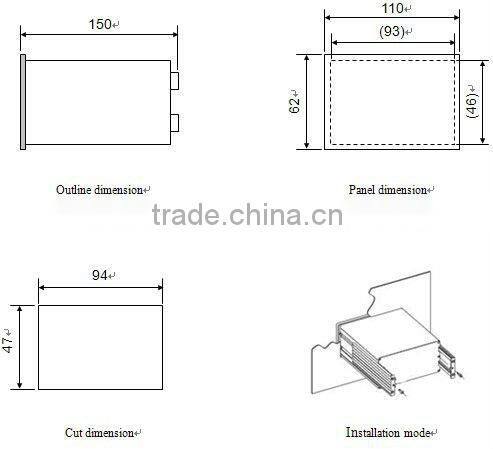

| Outline Dimension | 110 × 62 × 150 mm (W×H×D) |
| Net Weight | Approx. 0.5kg |
| IP Grade | IP50 |
