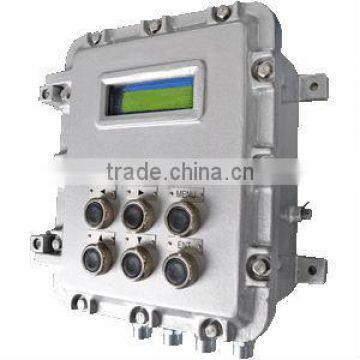

Weighing Indicator With Explosionproof Shell

FOB Price

US$ 1 - 500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	SUPMETER
Model Number	dCX-100D52

Suitable for belt weigher.

Power Supply	AC220V±15%
Explosion gas environment	Zone 1&2
Classes of explosion gas mixture	IIA, IIB
Temperature grades of explosion gas mixture	T1~T6
Ex-mark	ExdII BT6
A/D Convert	24-bit ∑-
Sampling Frequency	400Hz
Zero Drift	±0.1μV/°C RTI (Relative to Input)
Gain Drift	±5ppm/°C
Non-linearity	±0.01%FS
Output Voltage of Speed Sensor	DC5~12V (adjustable)
AO from COM1	1 Optional AO (4~20mA)
Communication Port	COM2: RS232;COM1: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option
Connectable	IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module
Outline Dimension	340 × 390 × 205 mm (W×H×D)
Weight	19.2kg
IP Grade	IP65
Max. Connect number of Loadcell	8 Loadcells (350Ω)

1. With Explosion-proof shell;
2. With good quality;
3. With good price;
4. With strong technical support
