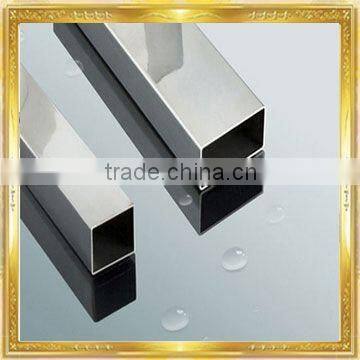

stainless steel pipe 18 gauge 304 stainless steel sheet thickness

FOB Price

USD $1,000 - $5,000 / Ton

5 Tons(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	JIS, AISI, ASTM, GB, DIN, EN, Other, JIS, AISI, ASTM, GB, DIN, EN, ASTM A554	Place of Origin	Guangdong, China
Brand Name	xiangdangdang	Model Number	ASTM A554
Type	Welded	Steel Grade	300 Series
Application	decoration, construction and upholstery, etc.	Certification	ISO
Welding Line Type	ERW	Thickness	0.16mm~3.0mm
Outer Diameter	5mm~219mm

1.Material:201,202,304,316L,430,etc
2.OD:6mm-219mm
Thickness:0.25mm-3mm
3.Surface:Mirror,Satin/HL

stainless steel pipe 18 gauge 304 stainless steel sheet thickness

Suface:2B/BA/HAIRLINE/MIRROR ETC

Name	18 gauge 304 stainless steel sheet thickness
Standard	ASTM A554, A249, A269 and A270, A312
Material Grade	201 ( Ni 0.8%), 202 (Ni 3.5%~4.5%), 301(Ni 5%) 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%),
Outer Diameter	6mm--159mm
Thickness	0.3mm - 3.0mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/- 0.2mm
	b) Thickness: +/- 0.02mm
	c) Length: +/- 5mm
Surface	180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish
Application	Decoration construction, upholstery, industry instrument
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Chemical Composition of Material	Material Composition	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	N	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200
