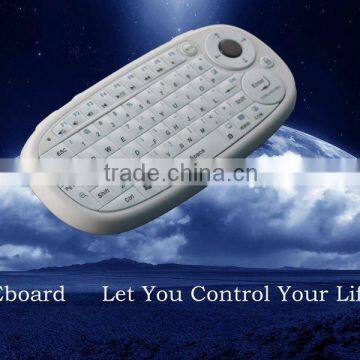

Wireless Remote Eboard / Mini Keyboard for Iphone/Ipad/car/TV

Specifications

 Eboard

The Specification of Eboard

Product Specifications :

3.1 2.4G / Bluetooth wireless technology transmission, longest distance up to 15 meters.

3.2 Built-in 1000mAh rechargeable lithium battery, fully charged stand by 3 months.

3.3 Button LED backlight design, dark environment can also be used normally.

3.4 Mini USB interface, the charging voltage: DC 5V.

3.5 Size: 140mm * 68.5mm * 18.5mm,   Weight: 100g.

Functional Operation

4.1 Power

Before use, need to turn on the hand-held keyboard button switch to the left, then the keyboard power-on, red light flashing. Please take out the receiver from the collection position,and put into the computer USB port.

4.2 Operation

After the nano receiver into a computer USB port, press any button will light up, then you can normally input any words. Red light shows when the keyboard input white or black color words; blue light shows when the keyboard input blue color words. You can switch this two inputs by pressing the small round button named “Fn” on the right of the keyboard       .

4.3 Combination keys

There are several combination hot keys in the keyboard, such as “one key to open the Task Manager, one key to open the browser, one key to open the mailbox, www.,. Com and other fast input.

4.4 Multimedia Function Keys

Keyboard with up to nine customized audio buttons, such as mute, volume up,volume down, play, previous, next, stop, etc., easy control.

4.5 MCE Media Control Center

There is a MCE media center custom controlbutton on Upper right corner of the keyboard       , can use for the latest WIN7 system,press the MCE button, you can immediately open the media center.

4.6 Optical Finger Navigation(OFN)

When the thumb touch on the OFN button       , the mouse cursor will be moving by following the direction of thumb movement.

4.7 Right & Left Key Operating

Distributed left and right keys design on the top of the keyboard (similar as joystick ),the index finger can be easily operated to achieve mouse buttons’ function.
