Waste Water Treatment Equipment - Rotating Scraper Bridge
US$ 3,000 - 60,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
Waste Water Treatment Secondary Clarifier
-
Waste Water Treatment Peripheral Drive Clarifier
-
Sludge Thickener With Peripheral Drive
-
Clarifier Mechanism Bridge Supported Centrally Driven
-
High Rate Bridge Supported Water Clarifier for Waste Water Clarification
-
High Rate Peripherally Driven Clarifier in Wastewater Clarification
Product Details
| Place of Origin | Shandong, China | Brand Name | JinWanTong | |
| Model Number | ZBG Series rotating scraper bridge |
Product Description
Product Description
What is a waste water treatment rotating scraper bridge?
ZBG series rotating scraper bridge is mainly used in settling tank of sewage treatment plant to scrape sludge from tank bottom to mud collection flume, and to collect scum on water surface to scum bucket. Water is purified after sediment and scum are removed. We have been over 8 years in manufacturing of rotating scraper bridge since year 2006.
Working Principles
Working principles of rotating scraper bridge:
Rotating scraper bridge is composed of service bridge, small scraper, steady flow tube, mud scraping truss, overflow device, center supporting frame, driving unit, etc..
It walks on border of circle tank and scrape suldge while driving.
ZBG rotating scraper bridge is your ideal choice for water treatment to discharge sludge.
Product Features
Product features of waste water treatment ZBG rotating scraper bridge:
- Truss structure, high strength and light weight.
- Easy to maintain, low operating costs.
- New designed transmission device together with shaft mounted reducer, compact and efficient.
- Walking wheel is standard solid wheel, compact and easy to install.
- Equipped with outdoor electrical components, smooth operation, safe and reliable, both local control or remote control are optional.
- Excellent performance in scraping and collecting sludge, moisture content of discharged sludge is very low.
- Scraper is ordered by logarithmic spiral and is equipped with universal wheel, rod is connected by hinge joint. Scraper will adjust itself automatically when encounter with greater resistance, well guarantee working safety.
- Walking wheel can be rubber wheel, nylon wheel or steel wheels. Products can be customized according to your requirements, stainless steel is optional to spare parts which contact with water.
- Strong technical team and strict final test ensure long service life of our rotating scraper bridge.
Detailed Images

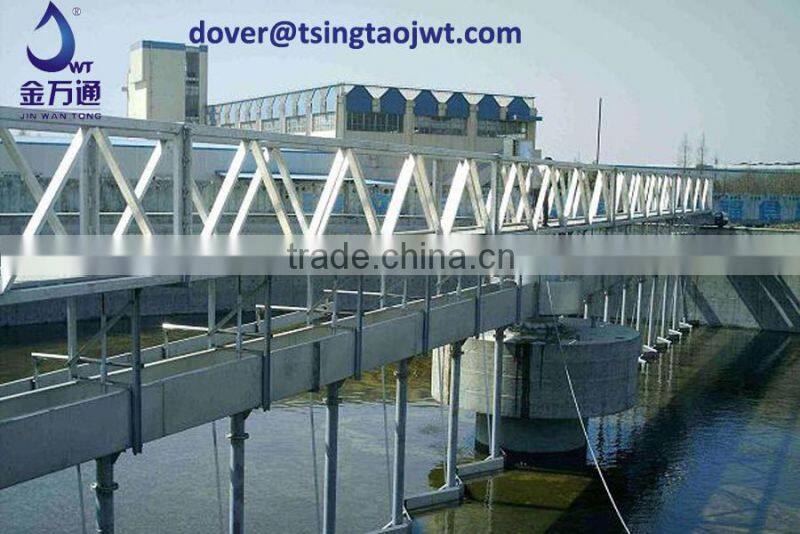

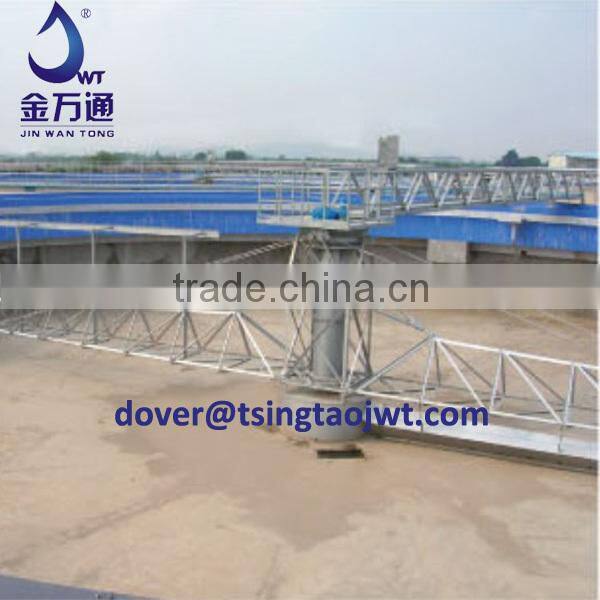

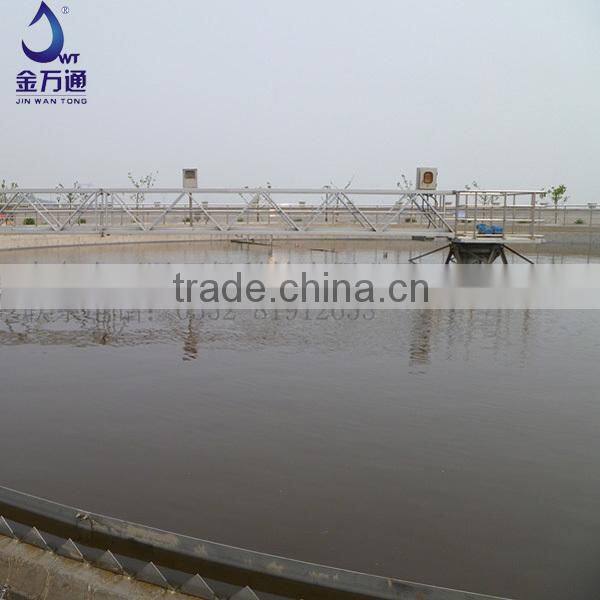

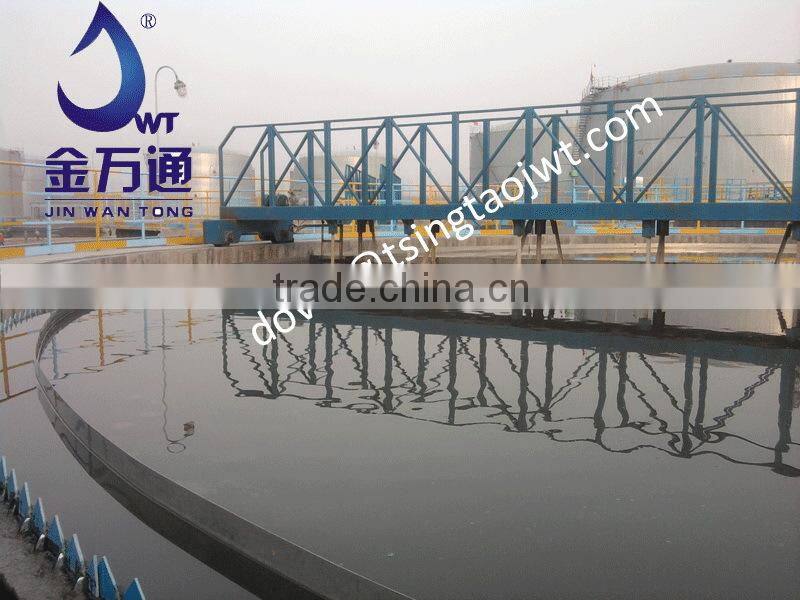

Detail images of ZBG series rotating scraper bridge:
Detail Specification
Detail specification of ZBG series rotating scraper bridge:
| Model | Tank Diameter(m) | Tank Depth(m) | Walking Speed(m/min) | Driving Engine Power(kw) |
| ZBG 12 | 12 | 3.5 | 1~3 | 0.55 |
| ZBG 14 | 14 | 3.5 | 1~3 | 0.55 |
| ZBG 16 | 16 | 3.5 | 1~3 | 0.55 |
| ZBG 17 | 17 | 3.5 | 1~3 | 0.55 |
| ZBG 18 | 18 | 3.5 | 1~3 | 0.55 |
| ZBG 20 | 20 | 3.5 | 1~3 | 0.55 |
| ZBG 25 | 25 | 3.5 | 1~3 | 0.55 |
| ZBG 30 | 30 | 4 | 1~3 | 0.75 |
| ZBG 35 | 35 | 4 | 1~3 | 0.75 |
| ZBG 40 | 40 | 4.5 | 1~3 | 1.1 |
| ZBG 50 | 50 | 4.5 | 1~3 | 1.5 |
