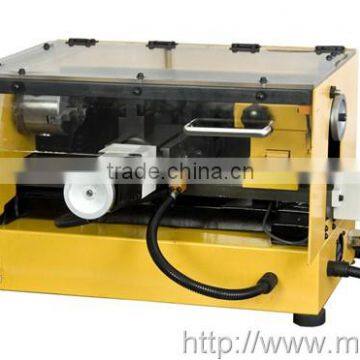

MPC1 CNC LATHE
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
MPX1 - CNC MILLING & ENGRAVING MACHINE/china cnc milling machine/desktop cnc engraving machine
-
MX1 MILLING MACHINE
-
MT8145 - BENCHTOP DIGITAL MULTIMETER
-
MCP MS506 analog multimeter 30V 10A
-
MCP SVM-001 STUDENT ANALOG VOLTAGE METER AC DC 1000V/ac dc voltmeter
-
MCP SAM-001 STUDENT ANALOG CURRENT METER AC DC/dc ac current meter
Product Details
| Condition | New | CNC or Not | CNC | |
| Automatic Grade | Semi-Automatic | Place of Origin | Shanghai, China | |
| Brand Name | MCP | Model Number | MPC1 | |
| Voltage | 120V/230V | Power(W) | 150 | |
| Dimension(L*W*H) | 560mm X 680mm X 800mm | Weight | 45kg | |
| Certification | CE |
Product Description
Specifications
.2 in 1 and manual function.Pre-installed hand wheel
.PC based CNC system, high reliability, operate simple
MPC1 CNC LATHE
Features
.2 in 1 and manual function
.Pre-installed hand wheel
.PC based CNC system, high reliability, operate simple
.Connect wieh PC via network cable
.G code can compatible with FANUC
.Safe and reliable whole shields shell
.400×145mm table size
.Safety electrical components of high quality and fast plug
.CE safety certification
| Technical Data | |||||
| Table | Table size | 400×145mm | |||
| T slot (amount×width×distance) | 3×8mm×45mm | ||||
| Max. load | 20kg | ||||
| Travel | X travel | 230mm | |||
| y travel | 120mm | ||||
| Z travel | 230mm | ||||
| Spindle nose to table | 45~275mm | ||||
| Spindle center to column | 140mm | ||||
| Spindle | Spindle taper | Er16 | |||
| Spindle motor | 500W | ||||
| Spindle speed | 300~20000r/min. | ||||
| Feed (stepper) | The max. moving speed | 300mm/min. | |||
| The max. feeding speed | 200mm/min. | ||||
| Power of motor X/Y/Z axis | 1.35Nm | ||||
| Accuracy | Positioning accuracy | 0.02mm | |||
| Repeatability accuracy | 0.02mm | ||||
| Power source | 230V or 120V | ||||
| Dimensions(W×H×D) | 560mm × 680mm × 800mm | ||||
| Packing size(W×H×D) | 660mm × 780mm × 900mm | ||||
| Weight | 90kg(NW)/120kg(GW) | ||||
