Frosted PC Cover 4foot 1163mm T5 Skinny LED Lamp G5 20W Dia16mm
- shenzhen or hongkong
You May Like
Product Details
| LED Light Source | SMD 3528 | Warranty(Years) | 3 | |
| Input Voltage(V) | 85-277V | Lamp Power(W) | 22 | |
| Lamp Luminous Flux(lm) | 990-1085 | Lamp Luminous Efficiency(lm/w) | 110 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE, FCC, PSE | |
| Place of Origin | Guangdong, China | Brand Name | Toplight | |
| Model Number | T5 |
Product Description

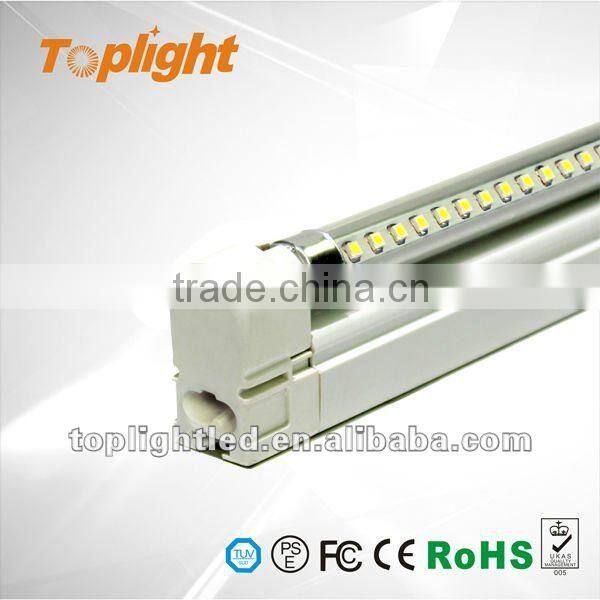

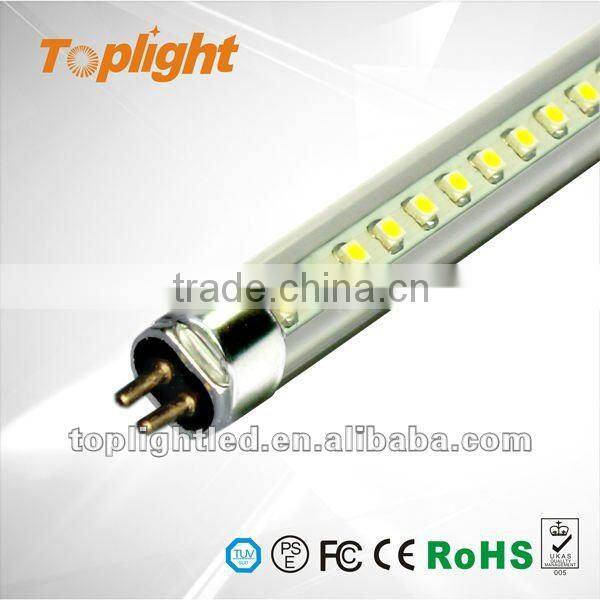

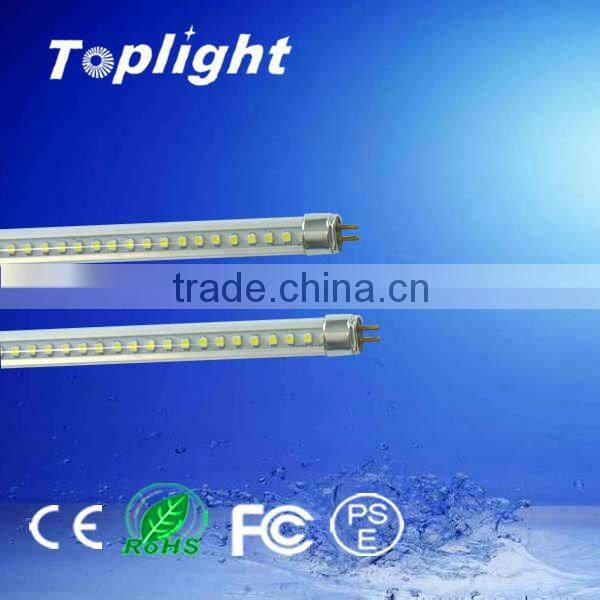

T5 LED Tube Skinny type with external driver
Specifications:
Product Type: T5 Skinny LED Tube
Place of origin: China
Brand Name: Toplight
Model No.: TP-T5SMD216-22W
FOB Port: Shenzhen port
Minimum Order: 30pieces
Payment Term: TT or Paypal
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample; 7-14days for bulk
Electrical parameters:
(1) electrical parameter:
Tube Length (mm) | Model No. | LED Quantity (pcs) | Luminous Flux (lm) | Luminous Intensity (lux) |
1164mm | TP-T5SMD216-22W | 216pcs | 2100-2300lm | 148/2M |
TP-T5SMD168-14W | 168pcs | 1530-1620lm | 231/2M |
(2) basic parameter:
Power | 14. 22W |
LED Quantity | 3528 LED/168pcs, 216pcs |
Input voltage | 85-277VAC |
Beam Angle | 120degree |
Power Factor | >0.85 |
Power Efficiency | >92% |
Material | AL+PC |
(3)PC and color temperature:
Color Temperature | Warm White(4000-4500K) |
Natural White(6000-6500K) | |
Cool White(8000-16000K) | |
Tube PC | Clear PC |
Frosted PC |
Product Advantages:
1.With 3parts:T5 tube, T5 lamp holder, accessory, directly replace traditional T5 fluorescent lamp, the lamp holder is made by plastic materials;

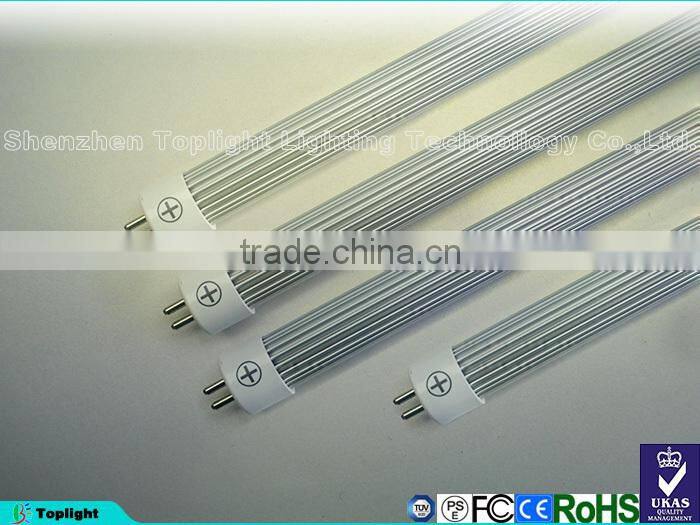

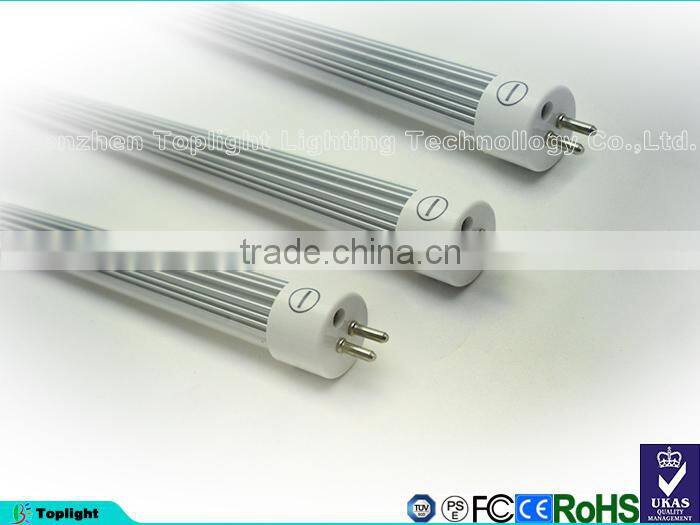

2.The T5 tube combines aluminium tube and PC, one side is positive pole, the other side is negative pole, kindly please check the right way while installing;
3.The power supply is in the lamp holder, safety to dismount the tube;
Warmly remind:please not install the tube on the conventional lamp holder!
Aging & Packaging:
Aging:
1172mm SMD T5 LED tube light's aging time is over 72hours, LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Package detail:
Tube Length | Model No. | Net Weight | Packing Size | Carton Quantity |
1172mm | TP-T5SMD216-22W | 0.21kg |
1335*240*240mm
| 60pcs/CTN |
TP-T5SMD168-14W | 0.349kg | 1335*240*240mm | 60pcs/CTN |
Structure installation
1164mm SMD T5 LED tube light could be installed on the T5 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!
