Polycarbonate Sheet Green House

Modern appearance, large operation space.

Stable structure, high intensity

Strong impact resistance for hail and strong shock

Long service life

Easy maintenance

High steel quality

High quality hot-dip galvanization

Good performance of heat preservation, energy saving, flame retardant, sound insulation

Greatly reduce the cost of greenhouse structure (comparing with the glass greenhouse)

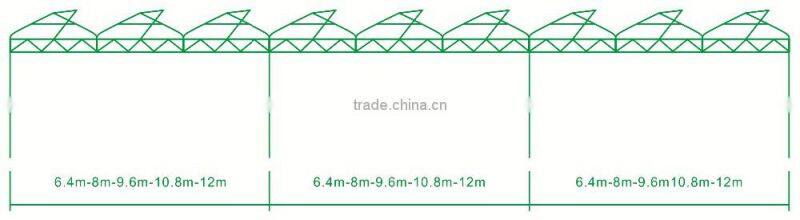

Venlo structure

Ridge height: 3m~6m

Spacing: 4m

Covering:  Polycarbonate sheet, fitted by special aluminum profiles together with sealed band.

Wind load: 0.50KN/m²

Snow load: 0.25KN/m²

Suspended load: 0.10KN/m²

Maximum drain volume: 140 mm/h

High quality steel structure and long service life. All main parts are hot dipping galvanized after processing according to European standards, guarantee excellent anti-corrosion.

Prefabricated structure. All the parts can be easily assembled on the spot with joining parts and bolts and nuts, without any welding points to damage the zinc coating on the material, which guarantee the optimal performance of anti-corrosion.

The standardization production of all the parts

Ventilation configuration: roof vents and side vents, controlled by rack and pinion system
