Steel/Iron Wire Drawing Machine
- Shanghai port
- T/T
You May Like
-
Jiangsu Wuxi Pinghsheng Stainless Steel Wire Drawing Machine
-
Straight Line Wire Drawing Machine With Competitive Price and Best Quality/stainless Steel Wire Drawing Machine
-
Automation Bright Steel Straight Line Wire Drawing Machine/Nail Making Machine
-
Intermediate Wire Drawing Machine/Medium Wire Drawing/Hight Speed Wire Drawing Machine
-
Easy to Use Competitive Price Hedge Wire Nail Making Machine Price
-
Best Quality Hot Product Coil Wire Nail Making Machine
Product Details
| Condition | New | Type | Wire Drawing Machine | |
| Use | Wire | Place of Origin | Jiangsu, China | |
| Brand Name | Pingsheng | Model Number | LZ9/400 | |
| Voltage | 2200V-440V | Power(W) | 18.5kw | |
| Dimension(L*W*H) | 1200mm*1900mm*1380mm | Weight | About 1.5T per block | |
| Certification | CE, ISO9001,EWC, BCC,etc. | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Wuxi Pingsheng new digital/Automatic stainless steel wire drawing machine
1. Specification:
This Machine is special designed for Indian customer, which use for drawing stainless steel wire drawing machine. Specificasion as follows:
Capstan/drum Dia.: 400mm
Drum No.: 9
Wire inlet diameter: 1.8-4.2mmm
Inlet material: Stainless steel 200, 300 and 400 series grade
Wire outlet diameter: 0.8-1.6mm
Average compression rate: 20%
Another reference technical parameters:
Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
Capstan diameter | mm | 1200-900 | 800 | 700 | 560(600) | 400(450) |
Drawing dies | time | 9-12 | 10 | 9 | 10 | 10 |
Max inlet diameter | mm | φ14-8 | φ10-8 | φ8-6.5 | φ6.5-5.5 | φ3.5-2.5 |
Min outlet diameter | mm | φ5-3 | φ4-2.5 | φ3-2.5 | φ2-1.8 | φ1.1-0.8 |
Drawing speed | m/min | 300 | 360 | 480 | 720 | 840 |
Tensile strength | Mpa(max) | 1300 | 1300 | 1300 | 1300 | 1300 |
Total compression rate | % | 87.24-92.89 | 90.53-90.23 | 85.94-85.21 | 90.53-89.29 | 90.12 |
Average compression rate | % | 20.45-19.58 | 21.00-20.75 | 19.58-19.13 | 21.00-20.02 | 20.50 |
Motor Power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
2. Pictures:

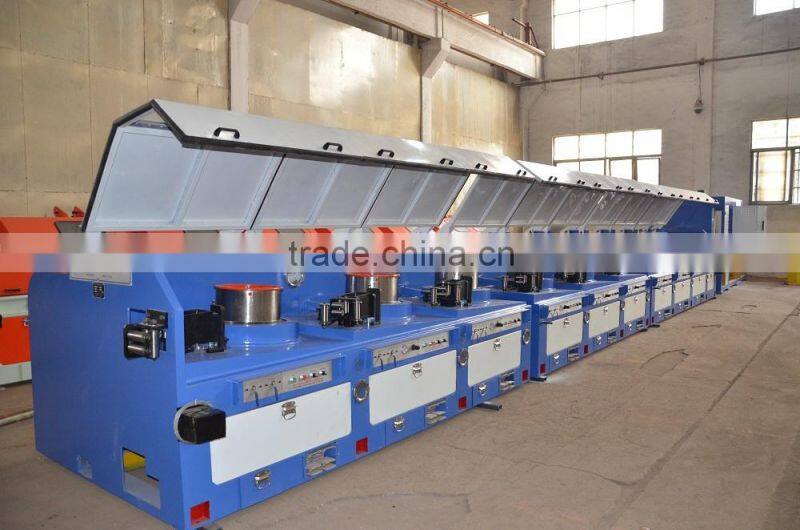

Speical design of stainless steel wire drawing machine

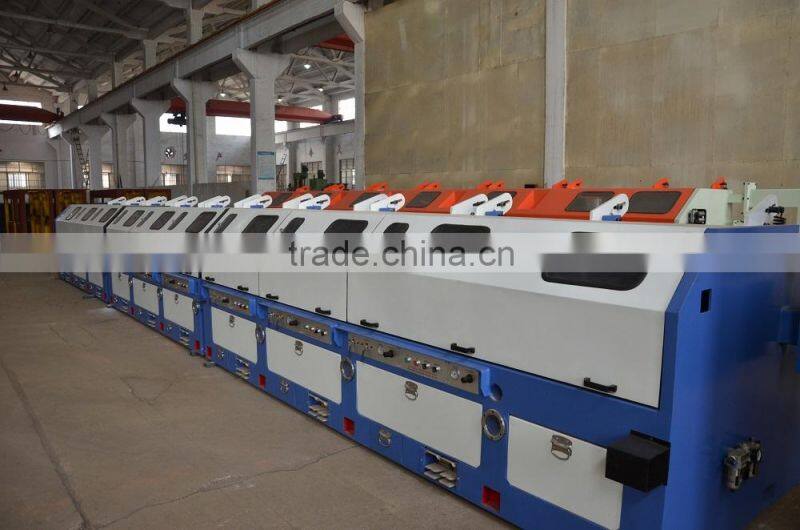

Shield sealed of stainless steel wire drawing machine

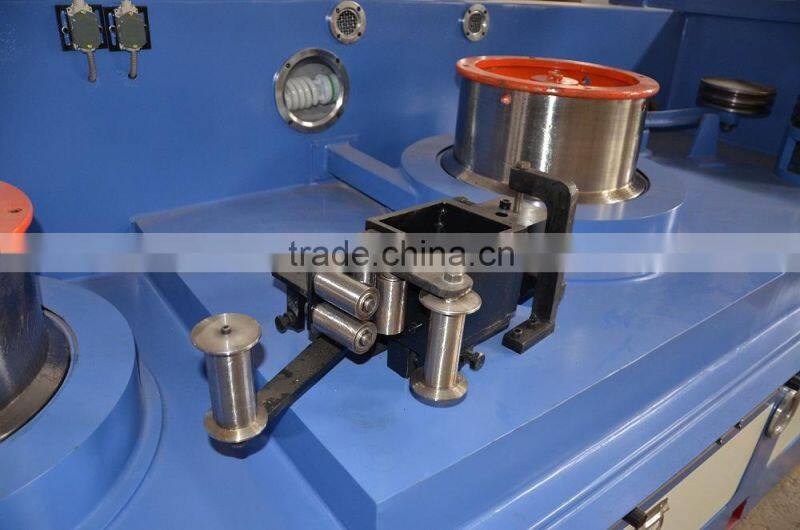

Stainless steel wire gudie rollers drive by cylinder

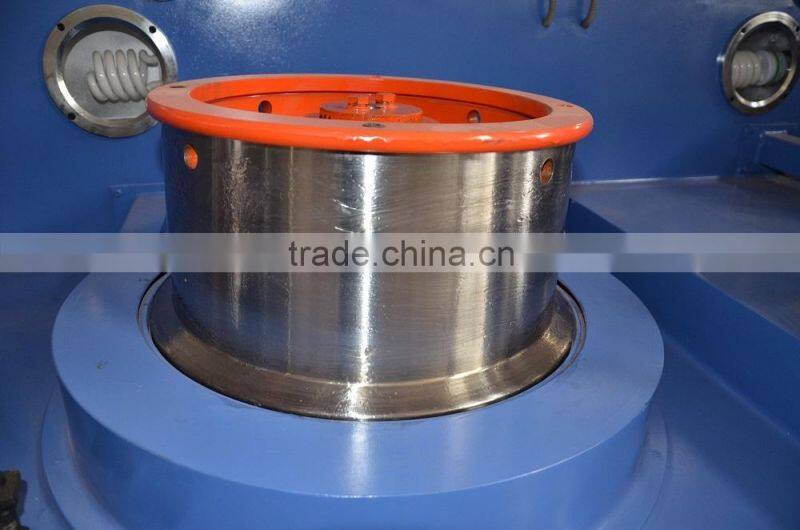

Capstan, capstan temperature will not over 40 degree when fully running.

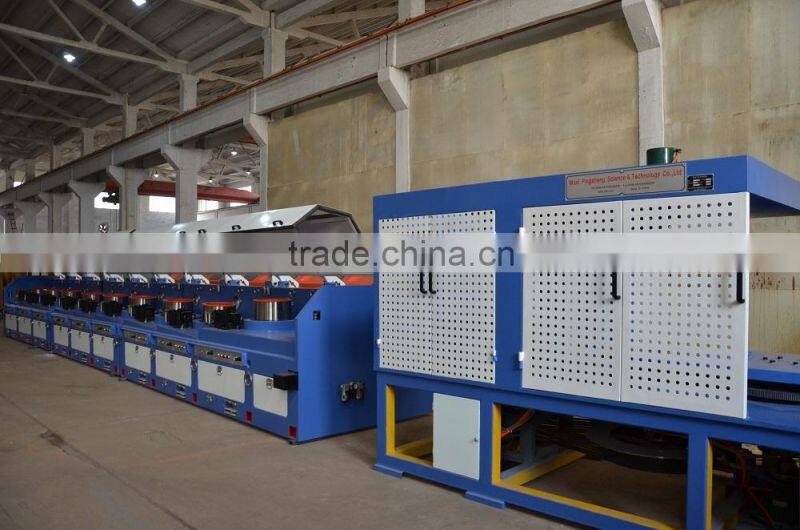

Straight line wire drawing machine and spool take-up machie
Note: Wuxi Pingsheng can design the wire drawing mahcine and auxiliry equipment according to customer's requirements.
1. We are always providing customers with not only the excellent solutions of steel wire production line, best related equipment and perfect services but also free technical services on the steel wire production line.
2. If you have any questions in the process of producing steel wire, or about steel wire production line, please feel free to contact us any time. Our solutions and quotation will be sent to you soon to meet you special requirements.
3. Welcome to visit our factory and Wire drawing production lines.
Successful experience / Markets:
Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.
Main customers:
1.We are one of the leading wire drawing machine manufacturers with more than 20 years experiences with a high reputation.
2.We have gotten ISO9001:2008 standard and certificate.

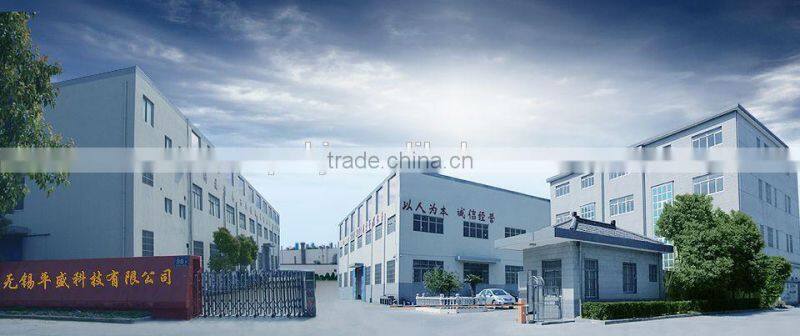

3.Company location: Wuxi city, 125km away from Shanghai. Welcome to visit us, we will pick you up from Shanghai.
4.Number of employees: 100-200
5.We have a professional technical team, a good after-sale service team, an excellent production management team.
6.We can design and produce various wire drawing machines, auxiliary equipment according to customers’ special requirements.
Warmly welcome chat with me online!
Contact person: Maylin Peng
Skype ID: maylin12952
M. +86 18906183468
