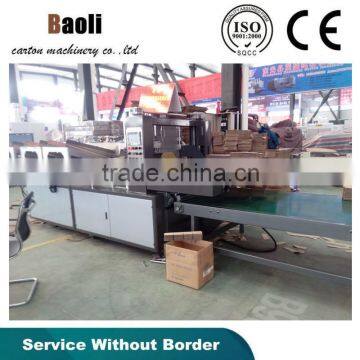

new condition automatic corrugated clapboard assembler machine/fruit box machinery

FOB Price

USD $22,580 - $25,800 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type	Cartons, Case	Packaging Material	Plastic, Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V/380V/440V	Power	8 KW
Place of Origin	Hebei, China	Brand Name	BL
Model Number	CGJ 450	Weight	3 ton
Dimension(LWH)	5x1.8x1.8m	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

new condition automatic corrugated clapboard assembler machine/fruit box machinery

new condition automatic corrugated clapboard assembler machine/fruit box machinery

1. suitable for the auto insertion of all kinds of acrton clapboard

2. longitudinal and transevrse to cross the two pieces of paper at the same time

3. output in double work position, high efficiency and energy saving

4. touch screen input control, simple operation

new condition automatic corrugated clapboard assembler machine/fruit box machinery

Program	Unit	Model	others
Board range		A,B,C,E	Two layer,three layer, five layer
The highest speed	Set	60
Voltage	V	380.50hz
Power	KW	9.5
Vertical maximum lengt	mm	500
Vertical minimum length	mm	200
Width of vertical	mm	600
Max.of vertical cardboard no.	piece	8
Min.of vertical cardboard no.	piece	1
Cross maximum length	mm	1000
Cross minimum length	mm	200
Width of cross	mm	1000
Max.of transverse cardboard no.	piece	Accoding to vertical cardboard
Min.of transverse cardboard no.	piece	1
Maximum height	mm	350
Minimum height	mm	120
Thinckness of cardbaord	mm	2-7
