Home > Products > Tube Ice Machine > 22mm 28mm 35 mm Tube Ice Maker Machine Market Popular with ice bin packing
22mm 28mm 35 mm Tube Ice Maker Machine Market Popular with ice bin packing
- 20 Set / Sets per Month
- Guangzhou
- T/T Credit Card PayPal
You May Like
-
edible cylinder Tube Ice Maker Machine with RO water filter
-
CBFI Tube Ice Maker for Africa market
-
Nigeria Designed tube ice making machine 1 ton and 3 ton
-
South Africa ice plant used Tube Ice Maker Machine 10 ton per day
-
Somalia Ice Plant Tube Ice Machine 5 ton and 10 ton per day
-
CBFI 10 Tons Tube Ice Machine In Djibouti
Product Details
| Condition | New | Capacity | 5000kg | |
| Place of Origin | Guangdong, China | Brand Name | CBFI | |
| Model Number | TV50 | Ice Shape | Other, TUBE ICE | |
| Voltage | 380V-50HZ-3P , it can design according customer power | Power(W) | total power 21.95 KW | |
| Dimension(L*W*H) | 1600mm*1400mm*2250mm | Weight | 1800KG | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

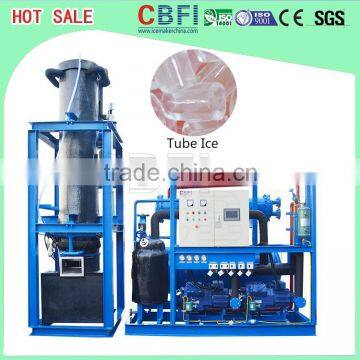

5 Tons Ice Tube Machine
Tube Ice Machine Description
1.Tube ice machine daily capacity from 1 ton to 20 tons.
2.Tube ice is a kind of hollow cylindrical ice with external diameter 16mm ,22mm, 28mm, 35mm and length 25~42mm . The hole diameter is usually 5~10 mm and it can be adjusted according to ice making time.
3.Perfect design: adopt 3D simulation assembly, compact structure, easy operate and maintain.
4.Health: ice maker adopt SUS 304, PE, and aluminum material to process, and adopt big rounded excessive design, everywhere of the machine is easy to clean.
5.Fully automatically: PLC system controls the whole ice making process.
6.Application: it can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh ect.
Main model for commercial tube ice machine:
Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG |
TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
Machine Running Condition :
Supply Water Temperature : 23 Centi degree
Evaporator Tempeature : -15 Centi degree
Condensing Temperature : 40 Centi degree
Standard Supply Power : 380 V - 50 Hz - 3 P . We still can make ice machin with special power .
