Large Size Fish -25 Centi Degree Cold Storage Room With CBFI Installation

Function of  Polyurethane Cold Storage and Freezer Rooms

Air Conditioner Cold Room are widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory, fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops and laboratory.

Cold Room Features

1). Polyurethane insulation board design , the main steel structure to faciliate consturction.

2). Portable hinged and sliding doors, and out of cold storage more convenient , easy to operate.

3). Water defrosting evaporator defrost faster , save operating cost.

4).Cold rooms door with anit-shock protection , an increase of reliability.

5). Room temperature -45 to 15 degree.

Main Components and Features of Air conditioner Cold Rooms:

1. Cold room major component selects the well-known brands, which ensure the machine with reasonable configuration, steady movement, good insulation function, and low power consumption.

2. The electrical control section of the cold room is fully automatically controlled by computer, LCD inner temperature of the cold room, available machine time, defrost time, time of fan delay, alarming indicate and various technology parameter. It is easy and convenient to operate.

3. The ice room is made up of reinforced base plate, sidewall plate, end wall plate and top plate. There is a 100mm-thick insulated layer of polyurethane foam inside the plate.

4.An air cooling system is applied inside to keep the temperature at -8, an ideal temperature to keep ice dry and crispy.

 Application:

Food(meat, vegetable, fruit , dairy , drink  ) , medicine ,chemical ...

Cold room used for fruits and vegetables keeping fresh

 Ice store into cold room

Cold Room doors

1).Swing door and sliding door for choice.

2).Swing door : manual opended , automatic,etc.

3).Door board made with special pressing technology PU material.

4).Door frame : color steel or stainless steel.

5).Surface material : color steel or stainless steel with protecting film.

Cold Room with different door types for your choice

Cold Room panels:

Cold Room insulation panel use 100% polyurethane insulation panel, density about 40~45kg/m3, with gasket,flame retardant , panel thickness : 100mm ~200mm, standard width of panel is 960mm

Cold Room pannel

Cold Room Condensing unit components

1) Condensing unit: Bitzer, Copeland, Maneurop, Frashcold..

2) Insulation Panel : PU, EPS

3)Other accessories:world-famous brands, like Danfoss, Castle, Electrical controller LG ...

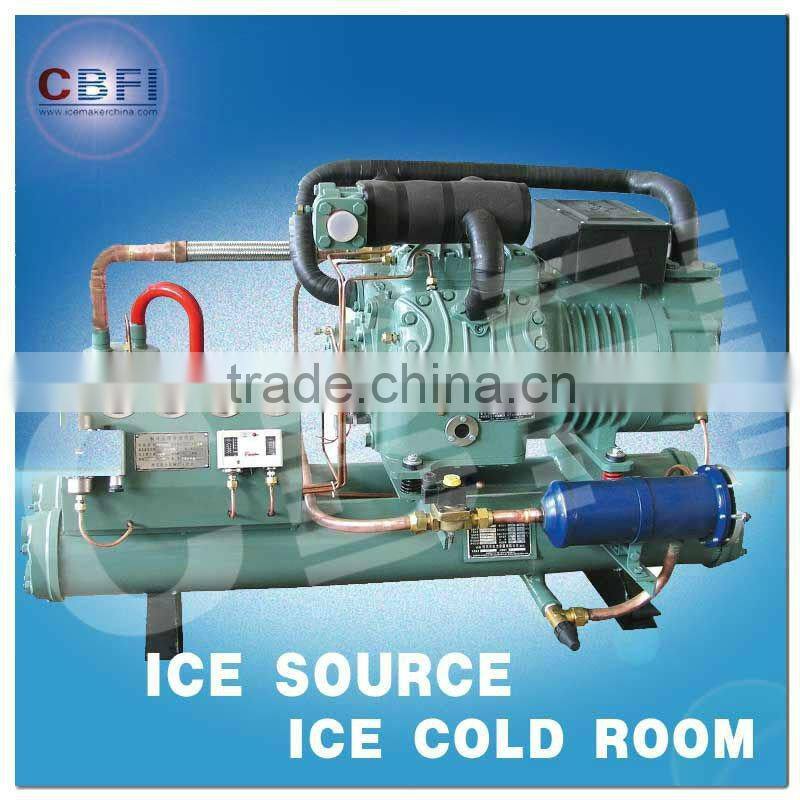

Bitzer brand water cooled Condensing Unit

Copeland Air cooled Condensing unit

Cold Room control box

Just a start press, you can control the system automatically, without man-made operation. When the room temperature cools to lower limit of the set temperature, the compressor and air cooled will stop to work automatically; when the room temperature rises to uper limit of the set temperature , the compressor and air cooled will start to work automatically.

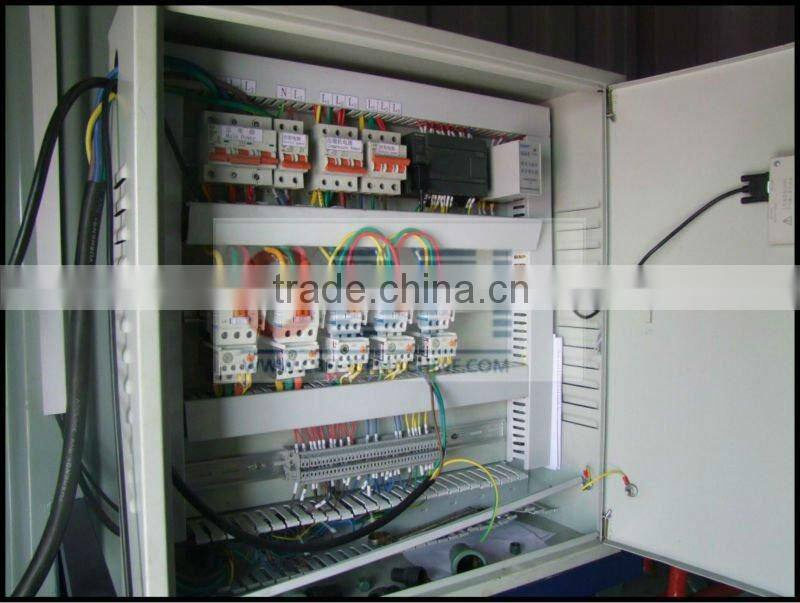

Cold Room Control box

Cold Room Air Cooled

Celling air cooler used to cool the air down inside the cold room

Other pictures about cold room

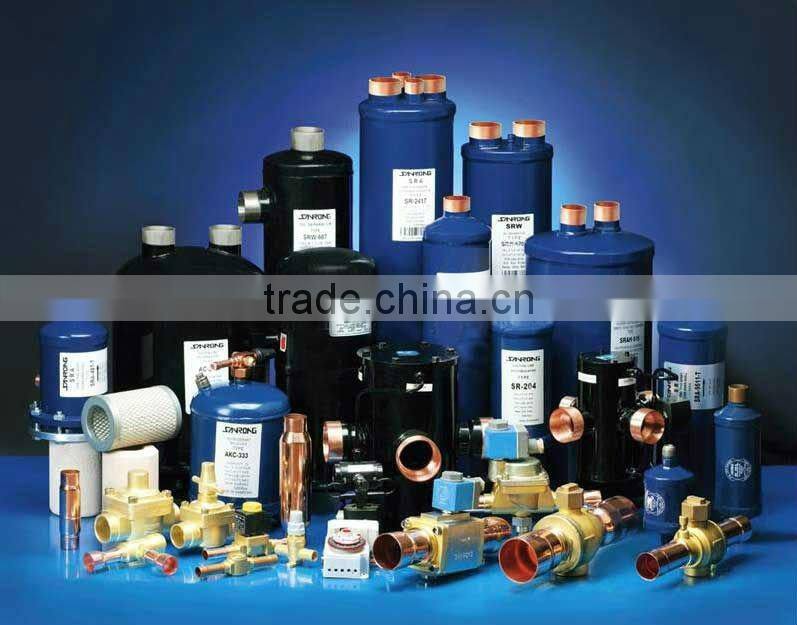

Condensing Unit Accessories

Inside factory

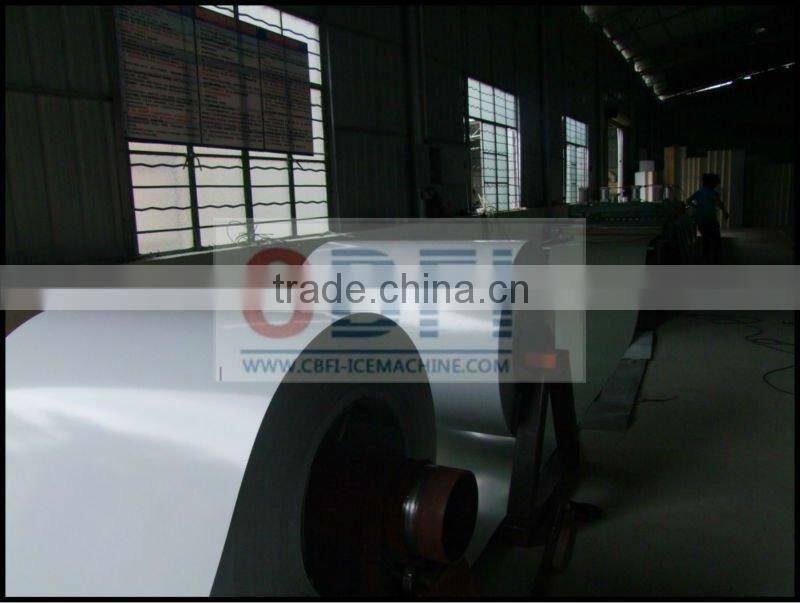

Cold Room panel material--- Color plate

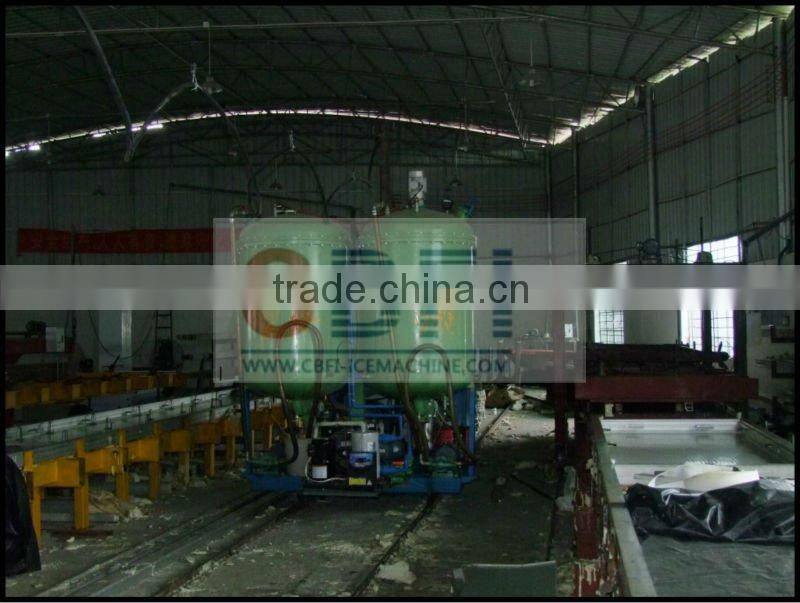

Foaming Machine

If you are interested in our cold storage, please contact us. We would be very glad to be on service for you. As the most professional ice machine manufacture in China, we are pleased to do our best offer to open a good market for you. We are definitely to contact you within 3 days after getting your inquiry.
