Commercial Ice Block Making Machine for Fishery Industry

Specifications

Guangzhou Icesource Refrigeration Equipment Co., Ltd manufactured a new type ice block making machine---coil tube evaporator type brine system ice block machine. It has the following features:

1. Ice making tank adopts 800mm thickness polyurethane insulation material. It has good stickiness and effect in heat insulation.
2. As for coil tube evaporator type block ice machine, we use big power water agitator to replace the common water pumps. It faster the brine flowing so that shorten the ice frozen time and improve the refrigeration effect of the whole machine.
3. The linear design for the ice plant, such as put the refrigeration unit, ice making tank, crane system, ice pouring shelf, water filling box and cold room in a line, will maximize the investment on manpower and reduce the whole cost.

Brine system ice blockmaking machine structure and application:

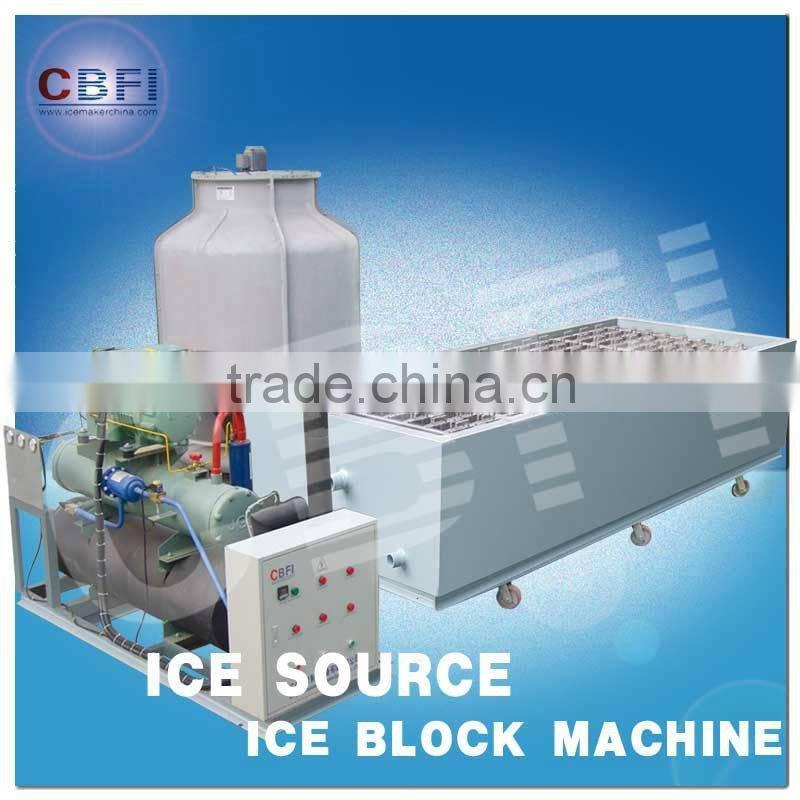

(1)Brine system ice block making machine structure: refrigeration unit, brine tank (ice block making tank), water cooling tower/ air cooling fan, and necessary components. We will prepare the three in unit, you just need to connect the power and water pipes for the three parts. Pleas see the picture in the attachment.

(2)Daily production: 1 ton per day to 100 tons per day. And if the capacity is more than 20 tons per day, it cannot ship the whole machine in container. So we do the local installation and construction in your place.

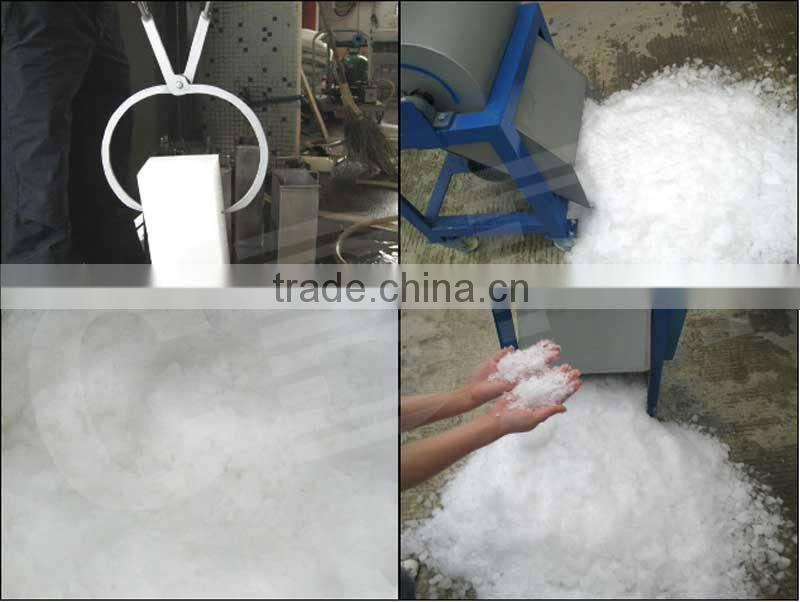

(3)Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, also can be done as your requirement.

(4)Power form supply: 380V/50HZ/3P, Refrigerant R22/R404a.

(5)Application: the block ice is use to reduce temperature, especially in Africa country where the power is not stable and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage. And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.

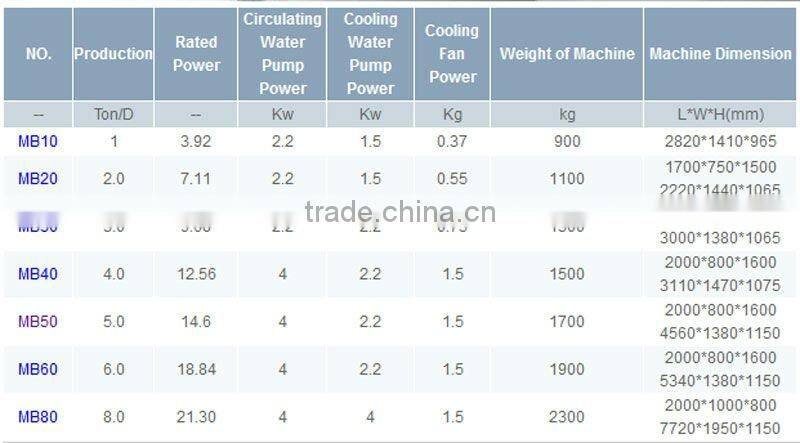

models for your reference:
