Industrial Ice Block Making Machine MB50

Specifications

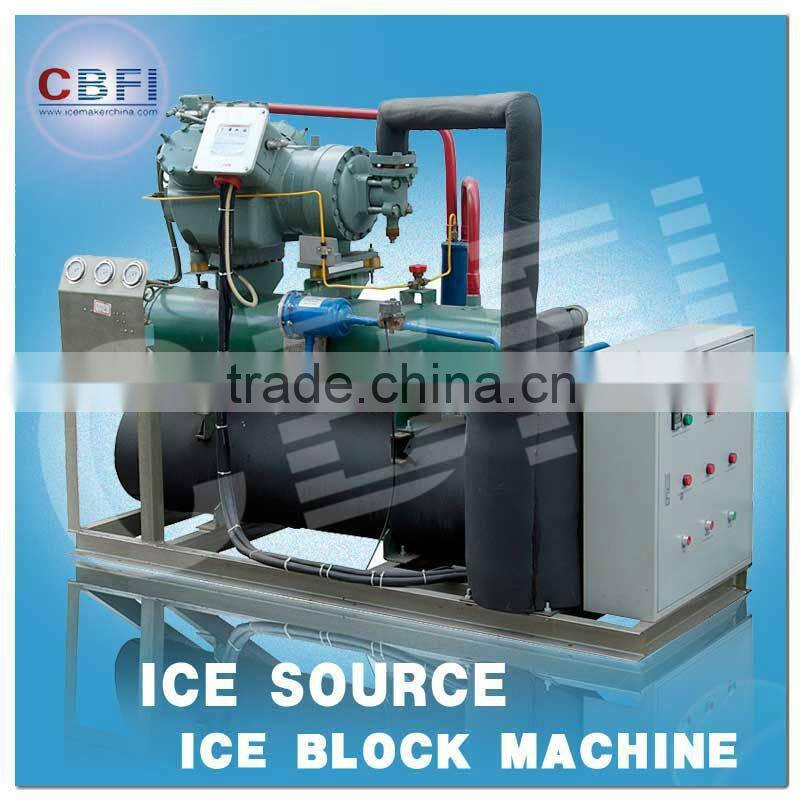

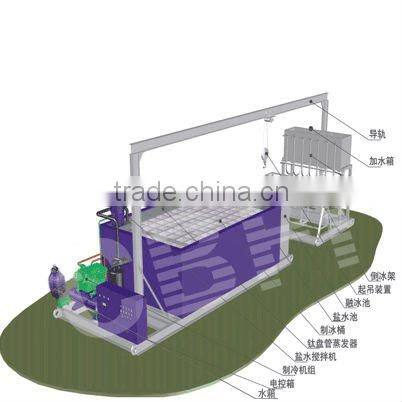

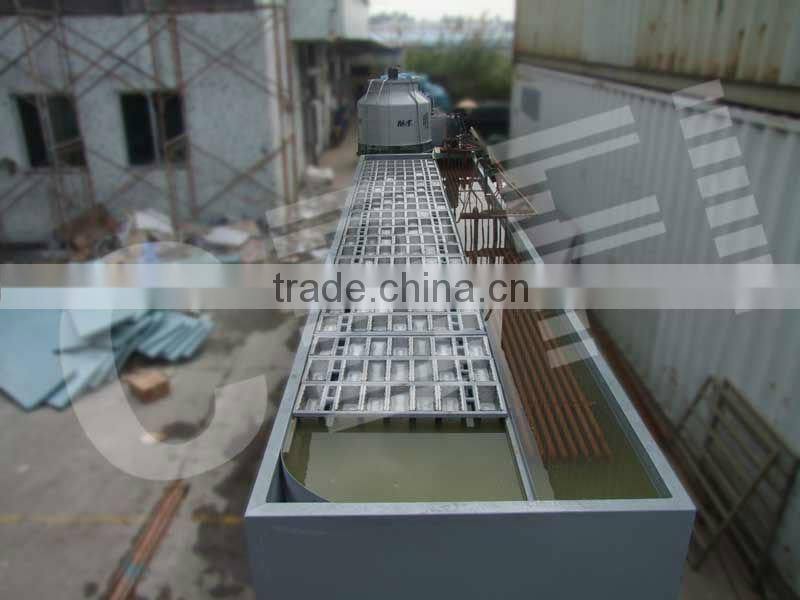

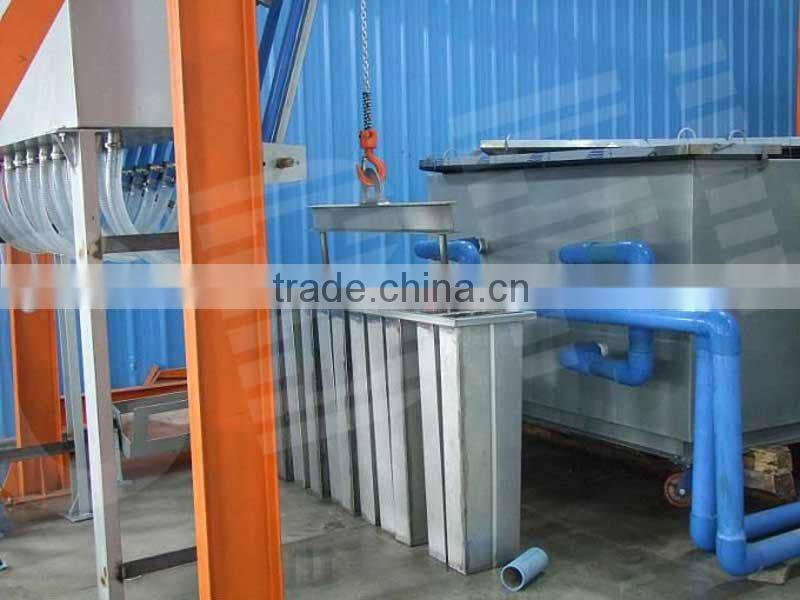

(1)Industrial ice block making machine structure: Compressor unit, ice making pool and cooling tower-water cooled system(air condenser-air cooled system).It is easy to install, just need to connect the water pipes between the three parts, and supply the power wire to the machine.

(2)Production models: we design the machine in different production models, from 1 ton per day to 100tons per day.

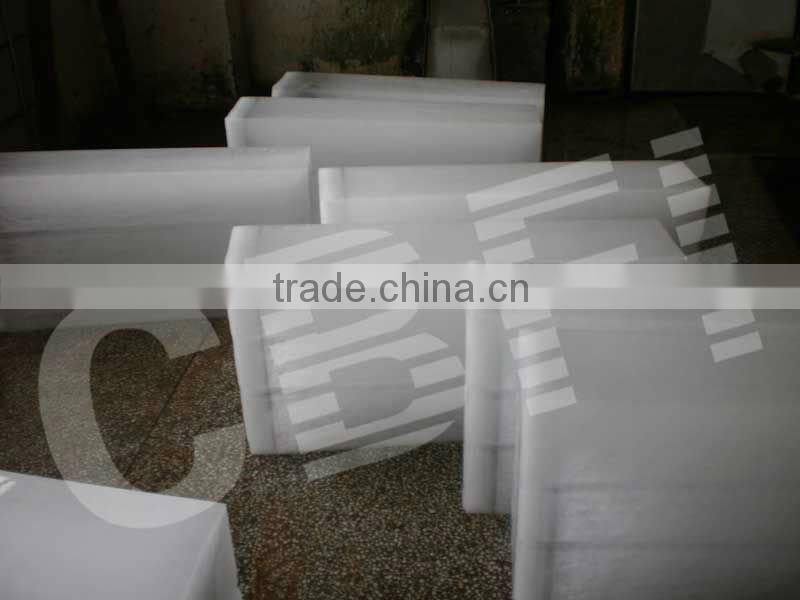

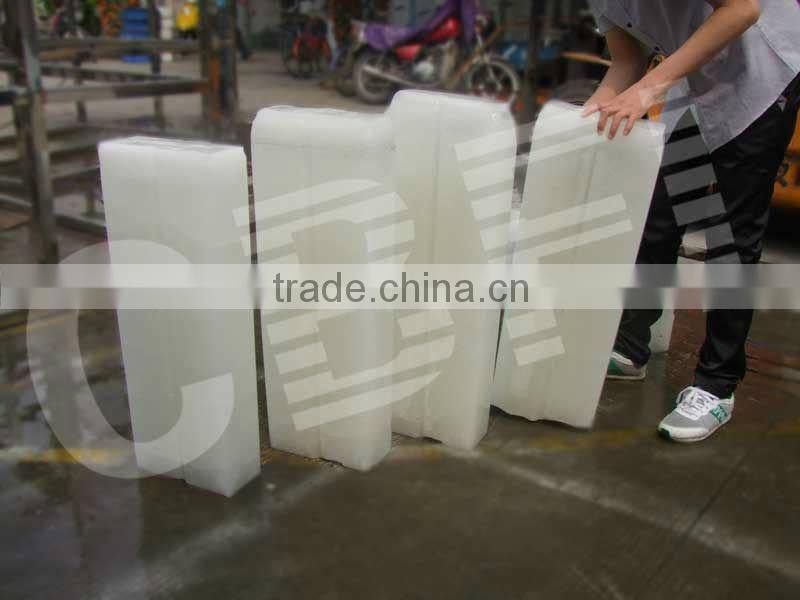

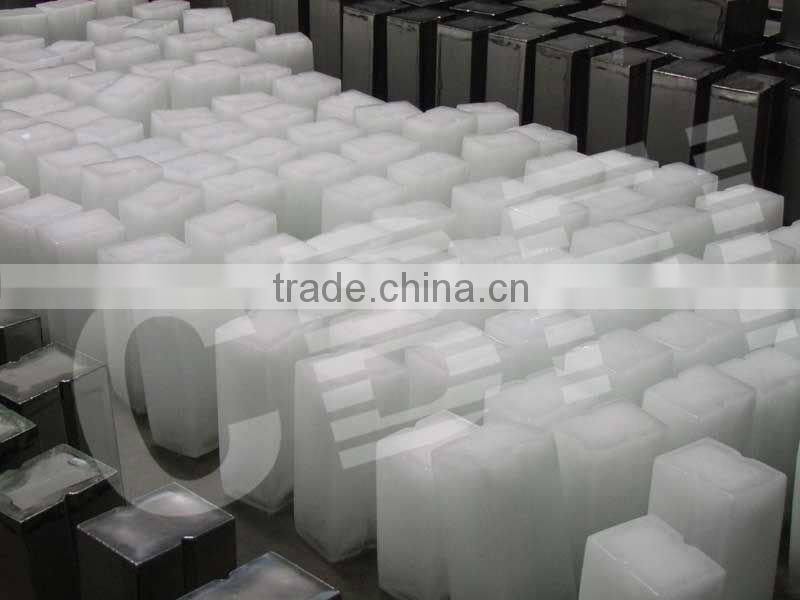

(3)Weight of ice:2.5kg,5kg..10kg..20kg….. also can be done as customers’ requirement.

(4)Power form supply: 380V/50HZ/3P or 230v/60hz/3p.

(5)Refrigerant: we use Freon R22 or R404a

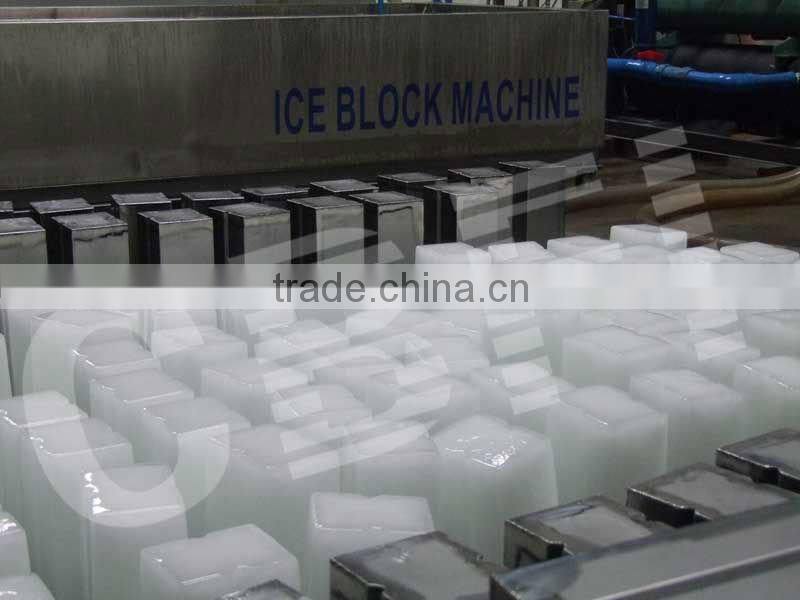

(6)Ice model Material: we use 304 stainless steel or galvanized steel to produce ice cans for block ice machines.
Normal specification:
Ice weight bellows 25kg, we use 1.0mm 304 stainless steel;
Ice weight between 25kg~30kg, we use 1.2mm 304 stainless steel;
Ice weight above 30kg, we use 1.5mm 304 stainless steel or 2.0mm galvanized steel(upon the correct using method, the working life of galvanized steel is 5~6 years. If apply stainless steel, its price is more than 4 times of galvanized steel.)

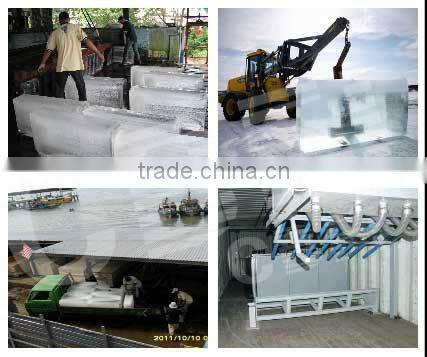

(7)Application: the block ice is use to reduce temperature, especially in Africa country the power is not stable, when the power is off ,people is the block ice cooling the drinking and beverage, some people the block ice to keep fish fresh or crushed the ice into small pieces to fresh vegetable and fruit.

Ice block making machine models for your reference:
