Paper Box Creasing And Die Cutting Machine Paper Bowl Cutting CE Certification
- NINGBO
- T/T
You May Like
-
Automatic High Speed Roll Feeding Cardboard Die Cutting Machine Paper Box Paper Cup Cutter
-
MR-850D Automatic Die Cutting Machine Make-up Box
-
Automatic Roll Die Cutting Machine Cutting Paper Cup Paper
-
Paper Cup Medcine Box Cutting Machine
-
MR-850D Fully Automatic Creasing And Die Cutting Machine Make-up Box
-
MR-850D Fully Automatic Creasing And Die Cutting Machine
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Cutting Machine | Place of Origin | Zhejiang, China | |
| Brand Name | MingRui | Model Number | MR-950 | |
| Voltage | 380V 3P | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 4000*2100*1850mm | Weight | 7500KGS | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

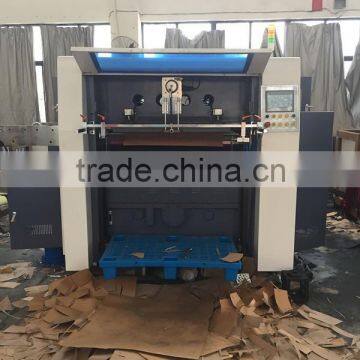

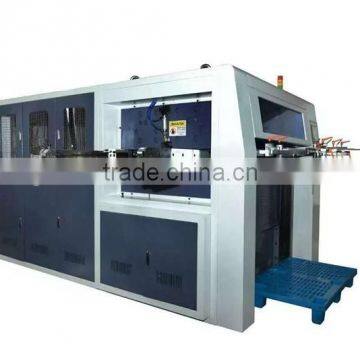

MR-950 Paper Drinking Cup Automatic Roll Paper Creasing And Die Cutting Machine
MR-930 machine is a professional machine in die-cutting creasing and embossing
various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.
Main features of products:
1.Using the German technology, the movement of worm gear, worm structure, synchronous oil feeding to the movement of the various parts of the extension of the service life of the equipment.
2. The use of professional typesetting technology to save 18% pieces of paper, saving labor costs, manufacturing costs, improve production efficiency.
3. Control the feeding, to achieve color code tracking, precision cutting.
4. According to the paper, the use of different shapes knife version, pneumatic locking knife version, easy to replace.
5. Feed rollers double random synchronous movement, at the same time wind feeding, improve feed.
6. Roll embossing with die-cutting, indentation, corrugated, use of a machine.
Main Technical Parameters:
MODEL NO. | MR-950 |
CUTTING PRECISION | +-0.25mm |
RATED CUTTING SPEED | 80~100 TIMES/MIN |
INDENTATION TANGENT LENGTH | <250mm |
MAX CUTTING PRESSURE | 200T |
MAX CUTTING SIZE | 930 x 580mm |
MIN CUTTING SIZE | 490 x 350mm |
SUITABLE PAPER RANGE | 130~500gsm |
TOTAL POWER | 14kw |
MOTOR POWER | 7.5kw |
MACHINE SIZE | 4800 x 2100 x 1850 mm |
G.W | 7500kg |
Best service for you!
Good machine quality!
The machine warranty for one year!
Our factory in Wenzhou Pingyang chouty,China, specialized in manufacturing automatic web die cutting machine,
creasing die cutting machine, paper fan punching die-cutter and stereo paper box forming machine.
Wha't the product time?
Normal about 30days of order 1-5 sets machine.
What's the payment?
TT.30% payment in advance, pay the balance before shipment.
Some country can accept L/C.
What about the shipment?
We can send the machine to the customer designated locations in China.
After receiving machine, if machine have questions.
We can send engineer to you your country. Customer should pay for engineer and the freight.
