Worm Gear Full Automatic Roll Paper Creasing And Die Cutting Machine
- NINGBO
- T/T
You May Like
-
Automatic Rotary Paper Cup Die Cutting Machine for Sales
-
Automatic Die Cutting Machine Creasing Machine
-
Hot Sale Good Price Paper Cup Fan Roll Automatic Die Cutting Machine
-
Automatic Roll Die Cutting Press Paper Plate Machine
-
Die Cutting And Creasing Machine Paper Box Paper Cup Paper Bowl Cutting
-
Hot Sale Good Price Paper Cup Roll Automatic Die Cutting Machine
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Cutting Machine | Place of Origin | Zhejiang, China | |
| Brand Name | MingRui | Model Number | MR-850D | |
| Voltage | 380V 3P | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 3000*1780*1600mm | Weight | 2000kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

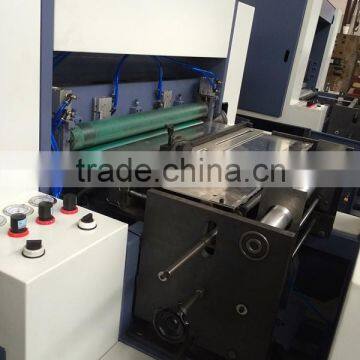

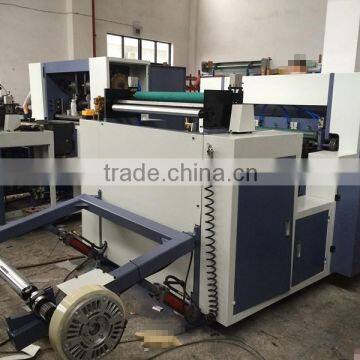

MR-850 Hot Sale Roll Paper Die Cutting Machine in China
1, using imported electric eye tracking servo motor feeding, ensure the feed speed and die-cutting
speed synchronization.
2, according to the figure after printing die cutting or no text pattern die cutting, can be used to identify
the color of light magic eye with servo motor, guarantee after printing product die-cutting die-cutting
location and pattern of perfectly.Die cutting for no printing products, as long as the die cutting length
can be on the microcomputer controller Settings.
3, die-cutting products after artificial tear paper than flat pressing die cutting products on the market
efficiency more than 2 times.
Technical data:
Model | MR-850D |
Overall size | 3000*1780*1800mm |
G.W. | 2000kg |
Speed | 160-200 times/min |
Max Paper width | 860mm |
Min paper width | 100mm |
Die cut size | 850mm*300mm |
Suitable paper | 100-350gsm |
Max cutting pressure | 2000N/cm³ |
Electric source | 380v/3phase |
Power | 5kw |
Air Required | 1m³/min,0.8M Pa |
Max feed paper roll weight | 3tons |
Max feed paper roll diameter | 1.4m |
Pneumatic shaft diameter | 3inch |
use wooden mold:
Flatten cutting process flow chart as follows:
Put into paper roll → Down oil cylinder → Propel paper roll → Roll in middle
↓
In middle position ← Feeding paper ← up oil cylinder ← Inflatable shaft swell
↓
Start die cutting
Best service for you!
Good machine quality!
The machine warranty for one year!
Our factory in Wenzhou Pingyang chouty,China, specialized in manufacturing automatic web die cutting machine, creasing die cutting machine, paper fan punching die-cutter and stereo paper box forming machine.
Wha't the product time?
Normal about 30days of order 1-5 sets machine.
What's the payment?
TT.30% payment in advance, pay the balance before shipment.
Some country can accept L/C.
What about the shipment?
We can send the machine to the customer designated locations in China.
After receiving machine, if machine have questions.
We can send engineer to you your country. Customer should pay for engineer and the freight.
