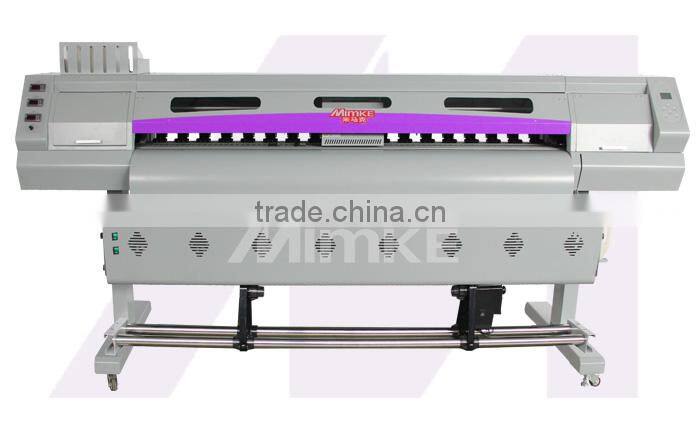

The Most Popular Sublimation Printer in China With Epson Dx5 Printer Head

Model

M-165S

Printhead

EPSON5113 Piezo-Electric Printhead

Number of Printhead

Two

Print Resolution

720X1440dpi

Maximum Print Width

1600mm

Print Speed

Draft Model  :  46 m2/h

Rapid Production Model :  36 m2/h

Medium Quality Model :  28 m2/h

High-quality Model :  14 m2/h

Ink

Type

Dye Ink, Pigment ink, Sublimation Ink,Eco solvent ink

Color

2X4 colors(CMYK)

Capacity

500 ml of each ink cartridge

Ink Supply System

Negative Pressure Continuous Ink Supply System

Media

Maximum Width

1550 mm

Feeding System

Maximum Weigh 55kg

Take up System

Optional

Type

PP,photo paper,e, pictorial cloth, inkjet fabrics, car stickersetc.

Printhead Height

Adjustable

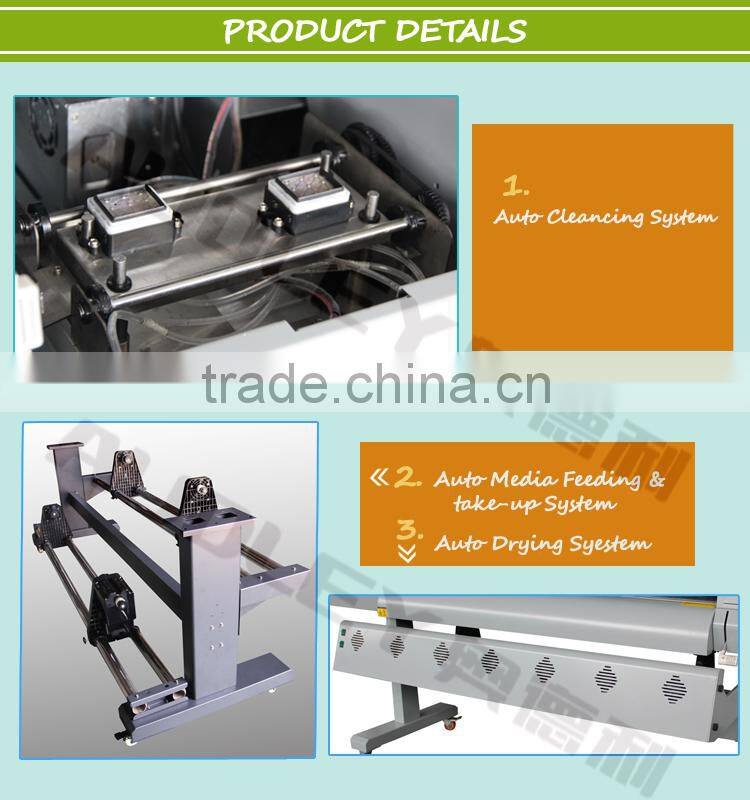

Printhead Clean

Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function

Driver System

Leadshine810 High Accuracy Driver

Heating System

Tri-stage Heating System Control By PID Temperature Control System

Drying System

External Drying Fan (Optional)

Language

ChineseEnglish

Operation System

WindowsXPWin7 32 bitWin7 64 bit

Print Interface

100M/Network Interface

Compatibility

Support LAN Print

RIP Software

MainTop 5.3photoPRINT

Working Enviroment

Temperature:18- 35, Humidity:35RH - 65RH

Power Supply

AC_110V/220V, 50/60HZ

Power(W)

Stand-by Power 32W,Maximum Power 1500W

Noise

Stand-by<32dB ,Working<65dB

Machine Dimension

2900mmx770mmx790mm(LxWxH)

Package Dimension

3200mmx770mmx970mm(LxWxH)

Package Weight

270kg
