Home > Products > Lathe > CK6136 Chinese metal lathe tos machine with price

CK6136 Chinese metal lathe tos machine with price

FOB Price

USD $15,000 - $18,000 / Set

1 Set(Min.Order)

Port FOB Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Automatic Grade	Automatic	Max. Swing Diameter	500
Place of Origin	China	Brand Name	Hercules or per cusotmer request
Model Number	CK6136	Voltage	220V/ 380V/ 415V
Power(W)	3.7kw or 5.5kw	Dimension(LWH)	2000x1420x17500mm
Weight	1400/16000kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CK6136 Chinese metal lathe tos machine with price

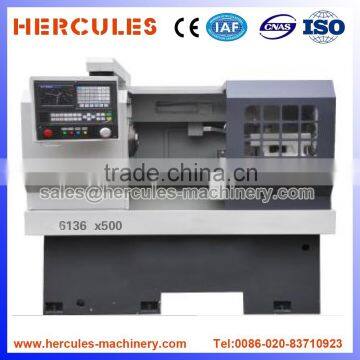

Product picture:

Features:

Braced machine bed made of grey cast iron

Elaborate spindle bearing

Bed guideways inductively hardened

Dovetail slot lathe carriage inductively hardened

Discription:

Specification		CK6136x500/750mm
Capacity	Max. Swing over bed	360mm
	Max swing over carriage	210mm
	Max. cutting legth	500/750mm
	Rail width	330mm
	Spindle nose	A2-6
	Spindle bore	60mm
Spindle	Taper of spindle bore	MT6
	Chuck	8"
	Range of spindle speed	150-2500rpm
Feeds	X a-axis travel	210mm
	Z axis travel	500/750mm
	X/Z rapid speed	4/7.6m/min
	X/Z screw	2004/4006
Carriage	Station of tool carrier	4 or 6 or 8
Carriage	Max. section of tool	20*20mm
Tailstock	Stroke of tailstock sleeve	120mm
Tailstock	Dia./Hole of tailstock sleeve	ø55/MT4
Motor	Main motor power	3.7/5.5 kw
Motor	Coolant pump power	250w
Dimension	Overrall dimensions LWH	2000142001750mm
Dimension	Parking size LWH	228017002000mm
Weight	Net weight	1400/1600kgs
Weight	Gross weight	1600/1800kgs

Standard Accessory:

Wrenches

Reduction sleeve

Alloy center

Three-jaw chuck

Frequency conversion spindle motor

Four position electric turret

Auto lubration coolant system

Optional equipment:

AC servo motor

Pneumatic or hydraulic chuck

Spring fastener of pnewmatic

Horizontal six or eight-sation

Tool post
