Mechanical Seal John Crane T2100
US$ 0.3 - 300
/ Piece
1 Piece(Min. Order)
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MIC SEAL | Model Number | M2100 |
Product Description
| D(mm) | D1 | D2 | L1 | L12 | L13 | L2 | L1S | L1K | L1N |
| 10 | 20.0 | 22.0 | 15.0 | 27.5 | 35.0 | 5.0 | 20.0 | 32.5 | 40.0 |
| 12 | 22.0 | 23.0 | 15.0 | 26.5 | 34.0 | 6.0 | 21.0 | 32.5 | 40.0 |
| 14 | 24.0 | 25.0 | 15.0 | 29.0 | 34.0 | 6.0 | 21.0 | 35.0 | 40.0 |
| 16 | 26.0 | 27.0 | 15.0 | 29.0 | 34.0 | 6.0 | 21.0 | 35.0 | 40.0 |
| 18 | 32.0 | 33.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 20 | 34.0 | 35.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 22 | 36.0 | 37.0 | 20.0 | 31.5 | 39.0 | 6.0 | 26.0 | 37.5 | 45.0 |
| 24 | 38.0 | 39.0 | 20.0 | 34.0 | 44.0 | 6.0 | 26.0 | 40.0 | 50.0 |
| 25 | 39.0 | 40.0 | 20.0 | 34.0 | 44.0 | 6.0 | 26.0 | 40.0 | 50.0 |
| 28 | 42.0 | 43.0 | 26.0 | 36.5 | 44.0 | 6.0 | 32.0 | 42.5 | 50.0 |
| 30 | 44.0 | 45.0 | 26.0 | 35.5 | 43.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 32 | 46.0 | 48.0 | 26.0 | 35.5 | 48.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 33 | 47.0 | 48.0 | 26.0 | 35.5 | 48.0 | 7.0 | 33.0 | 42.5 | 55.0 |
| 35 | 49.0 | 50.0 | 26.0 | 34.5 | 47.0 | 8.0 | 34.0 | 42.5 | 55.0 |
| 38 | 54.0 | 56.0 | 30.0 | 37.0 | 47.0 | 8.0 | 38.0 | 45.0 | 55.0 |
| 40 | 56.0 | 58.0 | 30.0 | 37.0 | 47.0 | 8.0 | 38.0 | 45.0 | 55.0 |
| 43 | 59.0 | 61.0 | 30.0 | 37.0 | 52.0 | 8.0 | 38.0 | 45.0 | 60.0 |
| 45 | 61.0 | 63.0 | 30.0 | 37.0 | 52.0 | 8.0 | 38.0 | 45.0 | 60.0 |
| 48 | 64.0 | 66.0 | 30.0 | 35.0 | 50.0 | 10.0 | 40.0 | 45.0 | 60.0 |
| 50 | 66.0 | 70.0 | 30.0 | 37.5 | 50.0 | 10.0 | 40.0 | 47.5 | 60.0 |
| 53 | 69.0 | 73.0 | 30.0 | 37.5 | 60.0 | 10.0 | 40.0 | 47.5 | 70.0 |
| 55 | 71.0 | 75.0 | 30.0 | 37.5 | 60.0 | 10.0 | 40.0 | 47.5 | 70.0 |
| 58 | 78.0 | 78.0 | 33.0 | 42.5 | 60.0 | 10.0 | 43.0 | 52.5 | 70.0 |
| 60 | 80.0 | 80.0 | 33.0 | 40.5 | 58.0 | 12.0 | 45.0 | 52.5 | 70.0 |
| 63 | 83.0 | 83.0 | 33.0 | 40.5 | 58.0 | 12.0 | 45.0 | 52.5 | 70.0 |
| 65 | 85.0 | 85.0 | 33.0 | 40.5 | 68.0 | 12.0 | 45.0 | 52.5 | 80.0 |
| 68 | 88.0 | 90.0 | 33.0 | 40.5 | 68.0 | 12.0 | 45.0 | 52.5 | 80.0 |
| 70 | 90.0 | 92.0 | 33.0 | 48.0 | 68.0 | 12.0 | 45.0 | 60.0 | 80.0 |
| 75 | 99.0 | 97.0 | 40.0 | 48.0 | 68.0 | 12.0 | 52.0 | 60.0 | 80.0 |
| 80 | 104.0 | 105.0 | 40.0 | 47.5 | 77.5 | 12.5 | 52.5 | 60.0 | 90.0 |

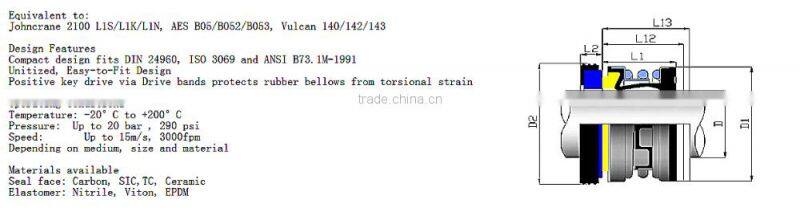

Mechancial seal John Crane T2100
| Equivalent to: |
| Johncrane 2100 L1S/L1K/L1N, AES B05/B052/B053, Vulcan 140/142/143 |
| Operating Conditions |
| Temperature: -20°C to +200°C |
| Pressure: Up to 20 bar , 290 psi |
| Speed: Up to 15m/s, 3000fpm |
| Depending on medium, size and material |
| Materials available |
| Seal face: Carbon, SIC,TC, Ceramic |
| Elastomer: Nitrile, Viton, EPDM |
Product Description
| INTRODUCTION OF THIS MECHANICAL SEAL |
| M2100 series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries M2100 series is shaft protection over entire seal length, seal face protection during installation. M2100 series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities |
