Home > Products > Standard Mechanical Seals > MECHANICAL SEAL MG

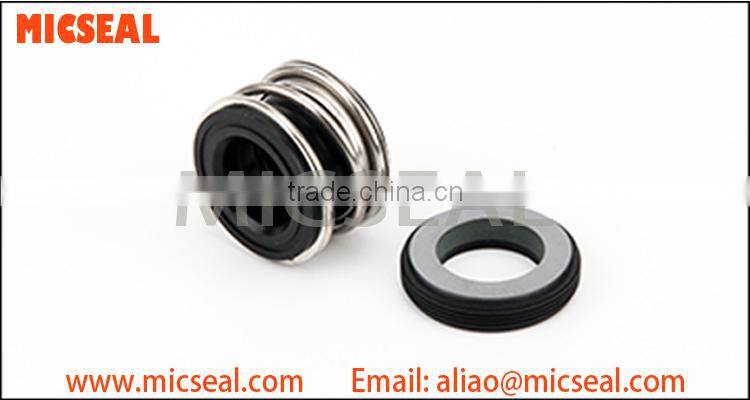

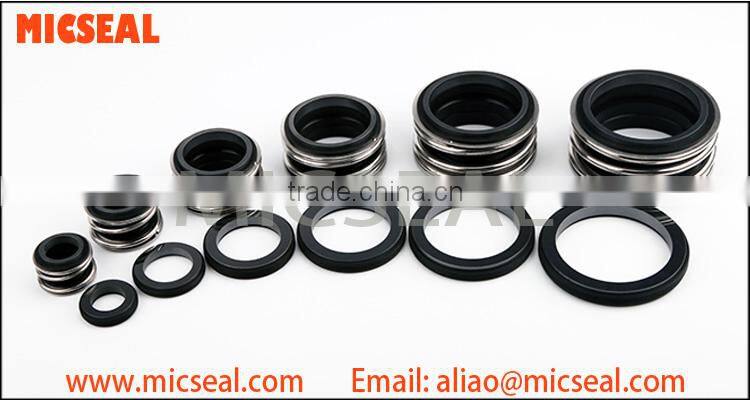

MECHANICAL SEAL MG
US$ 1.99 - 20.98
/ Piece
1 Piece(Min. Order)
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MIC SEAL | Model Number | MG |
Product Description
| D(mm) | D1 | D2 | L1 | L12 | L13 | L2 | L1S | L1K | L1N |
| 10 | 24.0 | 21.0 | 15.0 | 25.9 | 33.4 | 6.6 | 21.6 | 32.5 | 40.0 |
| 12 | 24.0 | 23.0 | 15.0 | 25.9 | 33.4 | 6.6 | 21.6 | 32.5 | 40.0 |
| 14 | 28.5 | 25.0 | 17.0 | 28.4 | 33.4 | 6.6 | 23.6 | 35.0 | 40.0 |
| 16 | 28.5 | 27.0 | 17.0 | 28.4 | 33.4 | 6.6 | 23.6 | 35.0 | 40.0 |
| 18 | 32.0 | 33.0 | 19.5 | 30.0 | 37.5 | 7.5 | 27.0 | 37.5 | 45.0 |
| 20 | 37.0 | 35.0 | 21.5 | 30.0 | 37.5 | 7.5 | 29.0 | 37.5 | 45.0 |
| 22 | 37.0 | 37.0 | 21.5 | 30.0 | 37.5 | 7.5 | 29.0 | 37.5 | 45.0 |
| 24 | 42.5 | 39.0 | 22.5 | 32.5 | 42.5 | 7.5 | 30.0 | 40.0 | 50.0 |
| 25 | 42.5 | 40.0 | 23.0 | 32.5 | 42.5 | 7.5 | 30.5 | 40.0 | 50.0 |
| 28 | 49.0 | 43.0 | 26.5 | 35.0 | 42.5 | 7.5 | 34.0 | 42.5 | 50.0 |
| 30 | 49.0 | 45.0 | 26.5 | 35.0 | 47.5 | 7.5 | 34.0 | 42.5 | 55.0 |
| 32 | 53.5 | 48.0 | 27.5 | 35.0 | 47.5 | 7.5 | 35.0 | 42.5 | 55.0 |
| 33 | 53.5 | 48.0 | 27.5 | 35.0 | 47.5 | 7.5 | 35.0 | 42.5 | 55.0 |
| 35 | 57.0 | 50.0 | 28.5 | 35.0 | 47.5 | 7.5 | 36.0 | 42.5 | 55.0 |
| 38 | 59.0 | 56.0 | 30.0 | 36.0 | 46.0 | 9.0 | 39.0 | 45.0 | 55.0 |
| 40 | 62.0 | 58.0 | 30.0 | 36.0 | 46.0 | 9.0 | 39.0 | 45.0 | 55.0 |
| 43 | 65.5 | 61.0 | 30.0 | 36.0 | 51.0 | 9.0 | 39.0 | 45.0 | 60.0 |
| 45 | 68.0 | 63.0 | 30.0 | 36.0 | 51.0 | 9.0 | 39.0 | 45.0 | 60.0 |
| 48 | 70.5 | 66.0 | 30.5 | 36.0 | 51.0 | 9.0 | 39.5 | 45.0 | 60.0 |
| 50 | 74.0 | 70.0 | 30.5 | 38.0 | 50.5 | 9.5 | 40.0 | 47.5 | 60.0 |
| 53 | 78.5 | 73.0 | 33.0 | 36.5 | 59.0 | 11.0 | 44.0 | 47.5 | 70.0 |
| 55 | 81.0 | 75.0 | 35.0 | 36.5 | 59.0 | 11.0 | 46.0 | 47.5 | 70.0 |
| 58 | 85.5 | 78.0 | 37.0 | 41.5 | 59.0 | 11.0 | 48.0 | 52.5 | 70.0 |
| 60 | 88.5 | 80.0 | 38.0 | 41.5 | 59.0 | 11.0 | 49.0 | 52.5 | 70.0 |
| 65 | 93.5 | 85.0 | 40.0 | 41.5 | 69.0 | 11.0 | 51.0 | 52.5 | 80.0 |
| 68 | 96.5 | 90.0 | 40.0 | 41.2 | 68.7 | 11.3 | 51.3 | 52.5 | 80.0 |
| 70 | 99.5 | 92.0 | 40.0 | 48.7 | 68.7 | 11.3 | 51.3 | 60.0 | 80.0 |
| 75 | 107.0 | 97.0 | 40.0 | 48.7 | 68.7 | 11.3 | 51.3 | 60.0 | 80.0 |
| 80 | 112.0 | 105.0 | 40.0 | 48.0 | 78.0 | 12.0 | 52.0 | 60.0 | 90.0 |
| 85 | 120.0 | 110.0 | 41.0 | 46.0 | 76.0 | 14.0 | 55.0 | 60.0 | 90.0 |
| Equivalent to: |
| Burgmann MG1/12/13, AES B02/012/013, Vulcan 191/192/193 |
| Standard seat |
| G60, G6 |
| Materials available |
| Seal face: carbon, SIC |
| Elastomer: Nitrile, Viiton, EPDM |
| Operating Conditions |
| Temperature: -20°C to +200°C |
| Pressure: Up to 12 bar g, 174 psig |
| Speed: Up to 10m/s, 2000 fpm |
| Depending on medium, size and material |
Product Description
| INTRODUCTION OF THIS MECHANICAL SEAL |
| MG series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries MG series is shaft protection over entire seal length, seal face protection during installation. MG series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process an order
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
