EN50022 Small Steel Din Rail
- Ningbo/Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Grade | Steel | Rail Heigth | 5.5mm | |
| Bottom Width | 15mm | Web Thickness | 1.0mm | |
| Head Width | 15mm | Length | 1m/2m | |
| Place of Origin | Zhejiang, China | Brand Name | T&G | |
| Model Number | T&G D155.5E10+ | Type | Light Rail | |
| Application | Other, Guide Rail, Wireless Control | Weight | 0.155kg | |
| Secondary Or Not | Non-secondary | Bolt Hole Diameter | 4.2mm*12mm*20mm |
Product Description
mini rail
mini rail :A electrial mini din rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: mini rail
Model No.: T&G D155.5E10+
DIN Type: 35 mm standard din rail
Cross Section Dimension: 15mm x 5.5mm x 1.0mm (Width x Height x Thickness)
Slot Dimension: 4.2mm x 12mm on 20mm center (other slot dimension available upon request)
Weight: 0.155kg per meter
Material: Cold rolled steel with a zinc chromate plating
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.
Data Sheet of mini rail
Din Type | EN60715 |
Material | Aluminum Alloy |
Anodizing surface finished | |
Salt Spray Test | Over 72 hours |
Application | used for mounting circuit breakers and industrial control equipment inside equipment racks
|
Model | T&G D357.5A11 |
MOQ | A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term | A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term | FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability | 2000000M per year |
Packaging Details | A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country | Hangzhou,China |
Certification | RoHS Compliant |

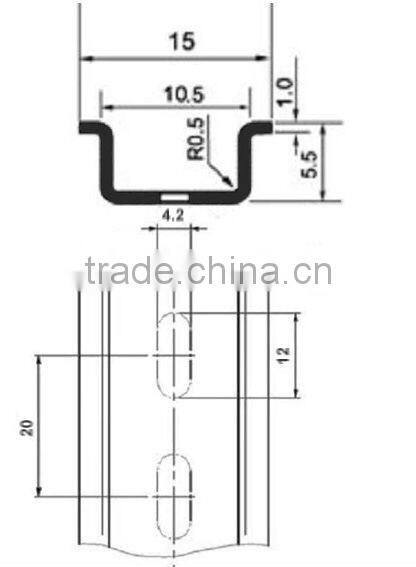

3.Drawing of mini rail
T&G D155.5E10+ | |
Width | 15mm |
Height | 5.5mm |
Thickness | 1.0mm |
Hole Dimension | 4.2mmx12mm on 20mm center(hole can be customized) |
Drawing: | |
 | |

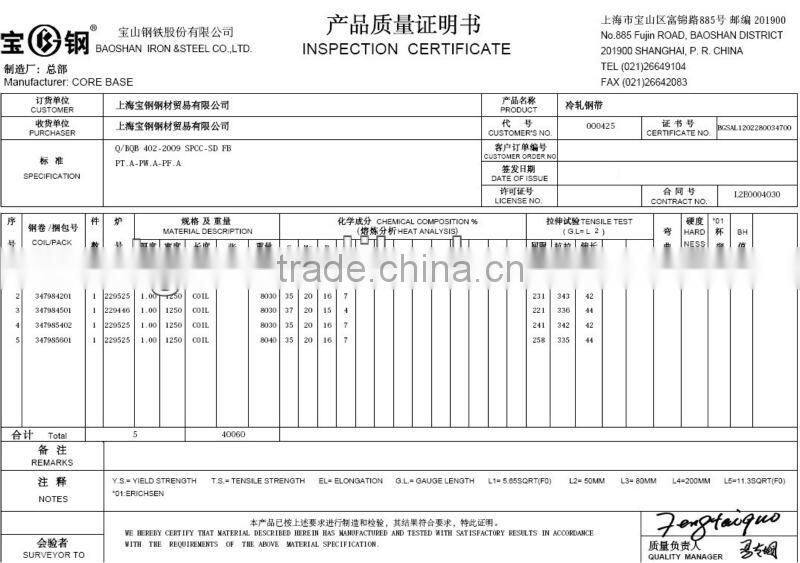

4.Raw Material quality certificate
5.Main Market
Cooperative Partner
6.Package of the mini rail
7.Loading the Container

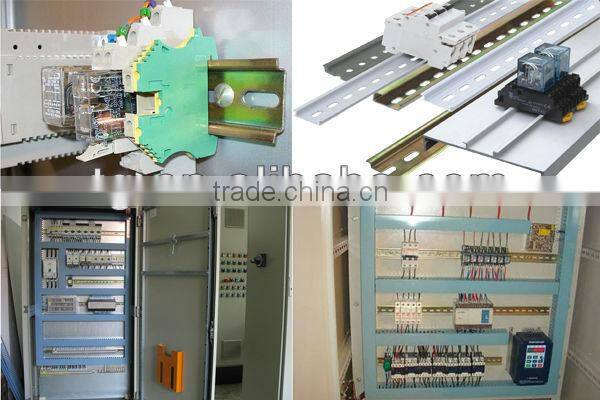

8. Application
FAQ
T&G mini rail mount is easily fit the DIN Rail cutter manufactured by normal manufacturers.
T&G mini rail use steel products produced by domestic ultra-large steel works.
All mini rail are gone through strict inspection before shipment.
