John Crane Type 2100L1K Impeller Pump Seal

Specifications

           John Crane Type 2100L1K Impeller Pump Seal

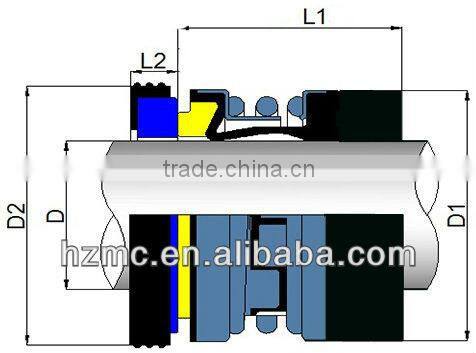

Dimensions

Materials

• Seal face: Carbon, Silicon Carbide

• Elastomer: Nitrile, Viton, EPDM

• Metal parts: SS304, SS316

Equivalent to

• John Crane Type 2100 (LK)

• Flowserve Pac-Seal 142

• Sterling 542

Process Of An Order

1. Please check product detailed information above.
 A. Model/Shaft Size   B. Face Material   C. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your

    enquiry.

3. When you place an order, our team will confirm with you about ordered product information, package,

    method of payment and delivery, then a sales contract will be sent to you to confirm.

4. Packing: Cardboard box (absorbing wrapper inside).

5. How to delivery:
    By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
    By air   - Buyer provide your express account, or our sales team find suitable express for buyers.

    Others - We arrange to delivery goods to some place in China appoint by buyers.

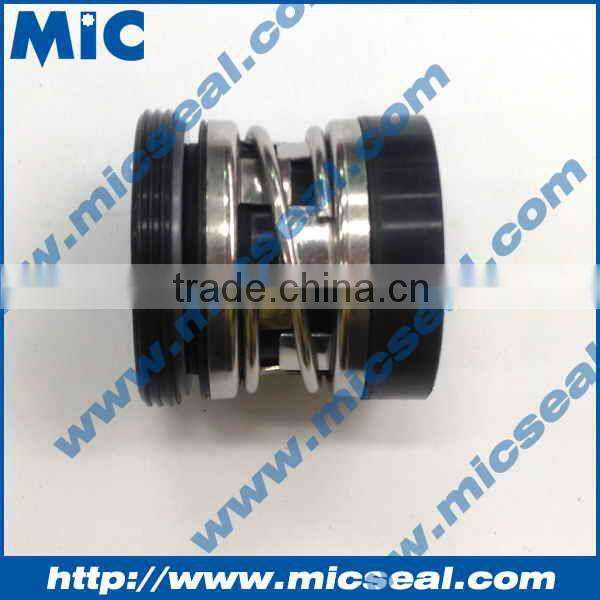

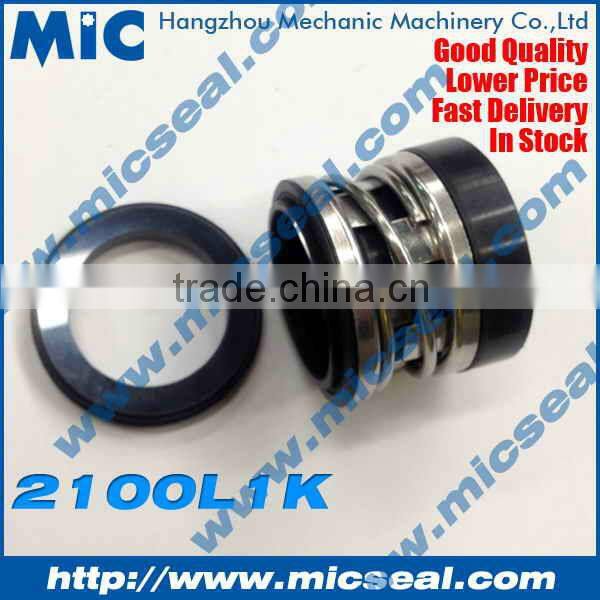

Real Products

Features

• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Eliminates damage to bellows
• Non-Clogging, Single-Coil Spring

Advantages

• Unitized Construction
  Allows for fast and easy installation and replacement

• Bellows Design
  Innovative bellows design is pressure supported and will not crease or fold under high pressure

• Elastomer Drive Ring
  Elastomer drive ring grips shaft to provide positive sealing and drive without set screws or drive pins

• Spring

  Non-clogging single coil spring keeps seal faces closed and properly tracking during all phases of operation

• Heavy Duty Drive

  Positive drive through interlocking tangs will not slip or break free during upset conditions

• Material Options
  Available with the widest array of material options, including high performance Silicon Carbides

Recommended applications

• Water and waste water technology                                                           • Food and beverage industry
• Pulp and paper industry                                                                            • Water and waster water pumps

• Blowers                                                                                                      • Fans

• Centrifugal pumps                                                                                     • Rotary and turbine pumps
• Compressors                                                                                             • Mixers
• Blenders                                                                                                    • Chillers

• Agitators                                                                                                    • Air compressors
