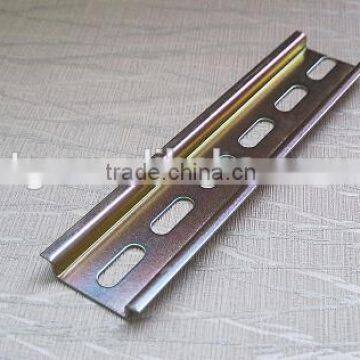

TS35 Rohs Compliant Steel Din Mount Rail

 control box din rail

  control box din rail :A  control box din rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany

1.Specification

Brand: T&G

Item: control box din rail

Model No.: T&G D357.5E10+

DIN Type: 35 mm standard din rail

Cross Section Dimension: 35mm x 7.5mm x 1.0mm (Width x Height x Thickness)

Slot Dimension: 6.2mm x 15mm on 25mm center (other slot dimension available upon request)

Weight: 0.315 kg per meter

Material: Cold rolled steel with a zinc chromate plating

RoHS Compliance:yes

Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525

2.

Detailed information of  control box din rail

3.Data Sheet of  control box din rail

T&G D357.5E10+ Din Rail
Width	35mm
Height	7.5mm
Thickness	1.0mm
Hole Dimension	6.2mmx15mm on 25mm center(hole can be customized)
Drawing:

4.Raw Material quality certificate

5.Main Market

Cooperative Partner

6.Package of the  control box din rail

7.Loading the Container

8. Application

FAQ

T&G   control box din rail is easily fit the DIN Rail cutter manufactured by normal manufacturers.

T&G   control box din rail use steel products produced by domestic ultra-large steel works.

All  control box din rail are gone through strict inspection before shipment.
