Type 21 Rubber Bellows Seal for Pump

Specifications

                 Type 21 Rubber Bellows Seal for Pump

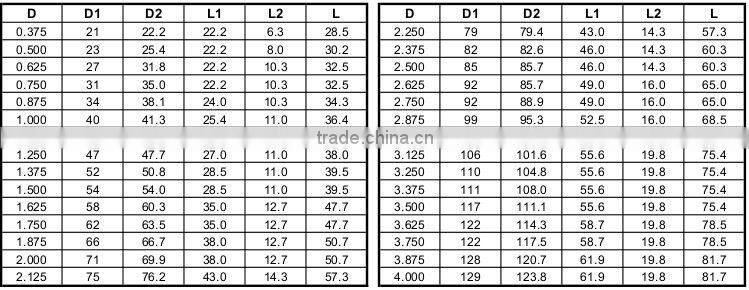

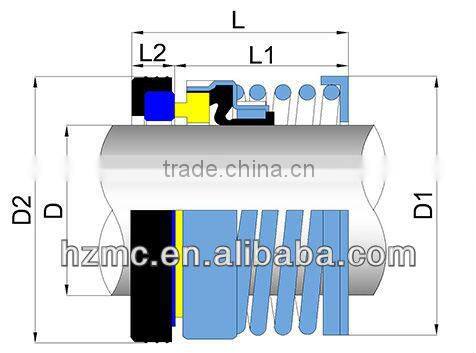

Dimensions

• Elastomer: Nitrile, Viiton, EPDM

Process Of An Order

1. Please check product detailed information above.
 A. Model/Shaft Size   B. Face Material   C. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your

    enquiry.

3. When you place an order, our team will confirm with you about ordered product information, package,

    method of payment and delivery, then a sales contract will be sent to you to confirm.

4. Packing: Cardboard box (absorbing wrapper inside).

5. How to delivery:
    By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
    By air   - Buyer provide your express account, or our sales team find suitable express for buyers.
    Others - We arrange to delivery goods to some place in China appoint by buyers.

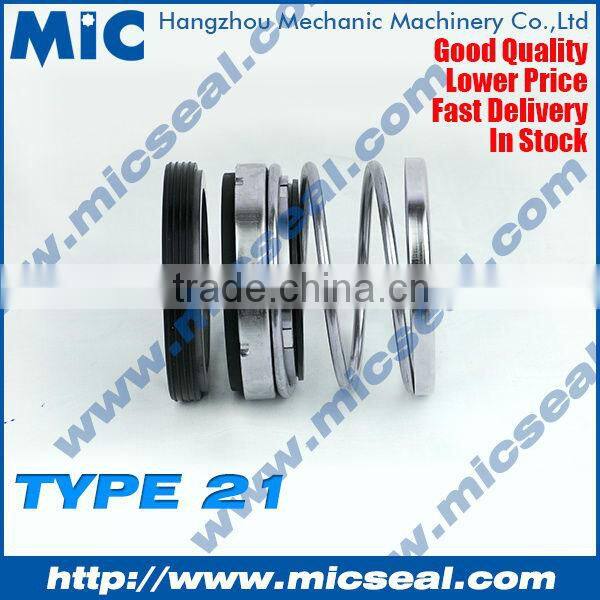

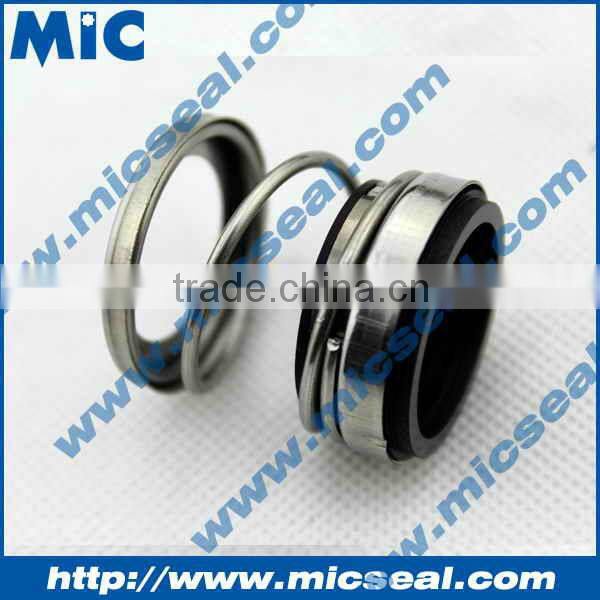

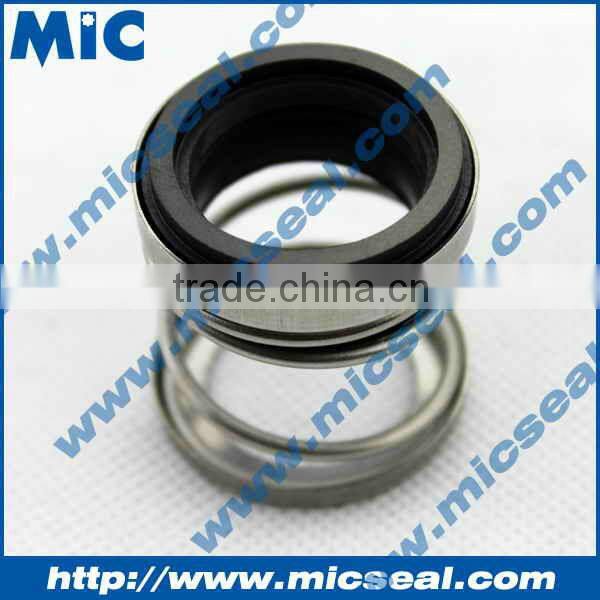

Real Products

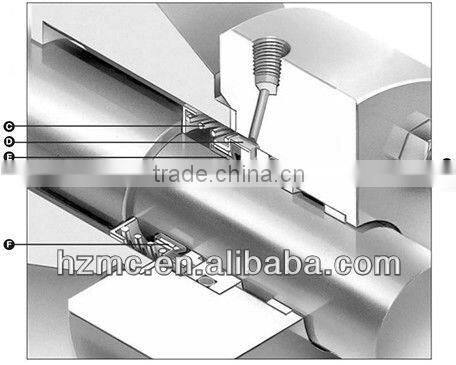

Item parts

Features

• For plain shafts
• Single and dual seal
• Elastomer bellows rotating
• Unbalanced
• Eliminates damage to bellows
• Eliminates drive failure

Advantages

• Self-aligning unit automatically adjusts for shaft end play and run-out
• Eliminates potential shaft fretting damage between the seal and shaft
• Positive mechanical drive protects the elastomer bellows from overstressing
• Single coil spring improves tolerance to clogging
• Simple to fit and completely field repairable
• Can be used with practically any type and type of mating ring

Recommended applications

• Water and waste water technology                                                            • Food and beverage industry
• Pulp and paper industry                                                                             • Water and waster water pumps

• Water, waste water, slurries (up to 5 % by weight)                                     • Pulp (up to 4 % otro)
• Centrifugal pumps                                                                                      • Rotary and turbine pumps
• Compressors                                                                                              • Mixers
• Blenders                                                                                                     • Chillers

• Agitators
